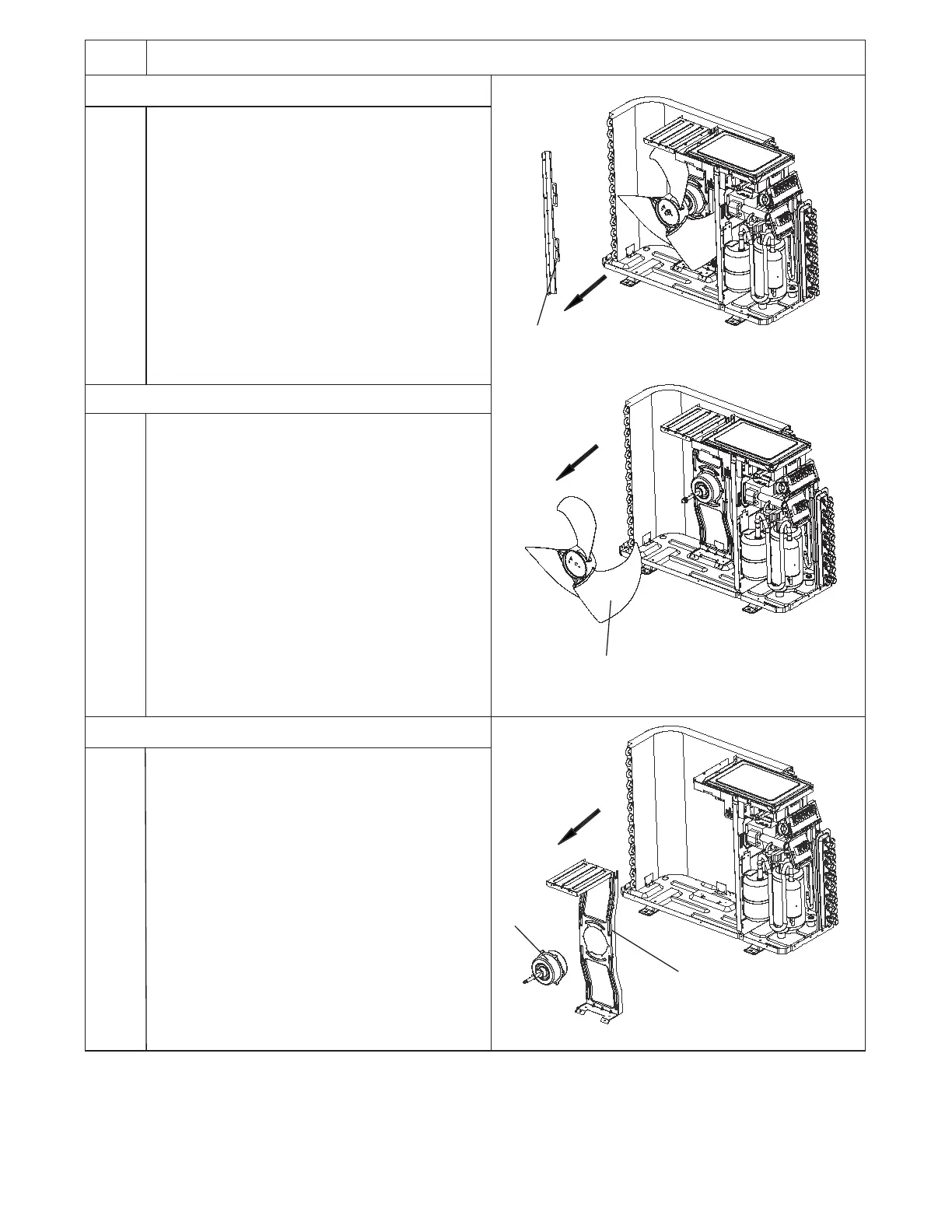

Steps Procedure

Remove the screws retaining the condenser

support to the base pan and remove the condenser

support.

Remove the nut retaining the fan blade to the

fan motor shaft and remove the fan blade.

Disconnect the fan motor wiring and remove the

screws retaining the motor. Remove the motor.

Remove the screws retaining the motor support to

the base pan and remove the support.

9.Remove fan blade

10.Remove motor and motor support

8.Remove condenser support

Condenser

Support

Fan Blade

Motor

Motor Support
