STANDARD FEATURES AND ACCESSORIES
Ease of Installation
Mounting Bracket S
Low Voltage Controls S
Comfort Features
Microprocessor Control S
Wireless Remote Control S
Rapid Cooling and Heating S
Automatic Air Sweep S
Cold Blow Prevention S
Continuous Fan S
Auto Restart Function S
Auto Changeover S
Energy Saving Features
Inverter Driven Compressor S
Sleep Mode S
24 Hour Stop/Start Timer S
Safety And Reliability
Indoor Unit Freeze Protection S
3MinuteCompressorTimeDelay S
High Compressor Discharge Temperature S
Low Voltage Protection S
Compressor Overload Protection S
Compressor Over Current Protection S
IPM Module Protection S
Ease of Service
Cleanable Filters S
Diagnostic LED’s On Outdoor Board S
Error Messages Displayed On Front Panel S
Application Flexibility
Condensate Pumps A
Standard Warranty*
7 Years Compressor limited Warranty S
5 year Parts Limited Warranty S
Legend
S Standard
A Accessory
* For Residential applications. For Commercial applications, warranty is
1 year for parts and 5 years for compressor.
INDOOR UNITS
A07892

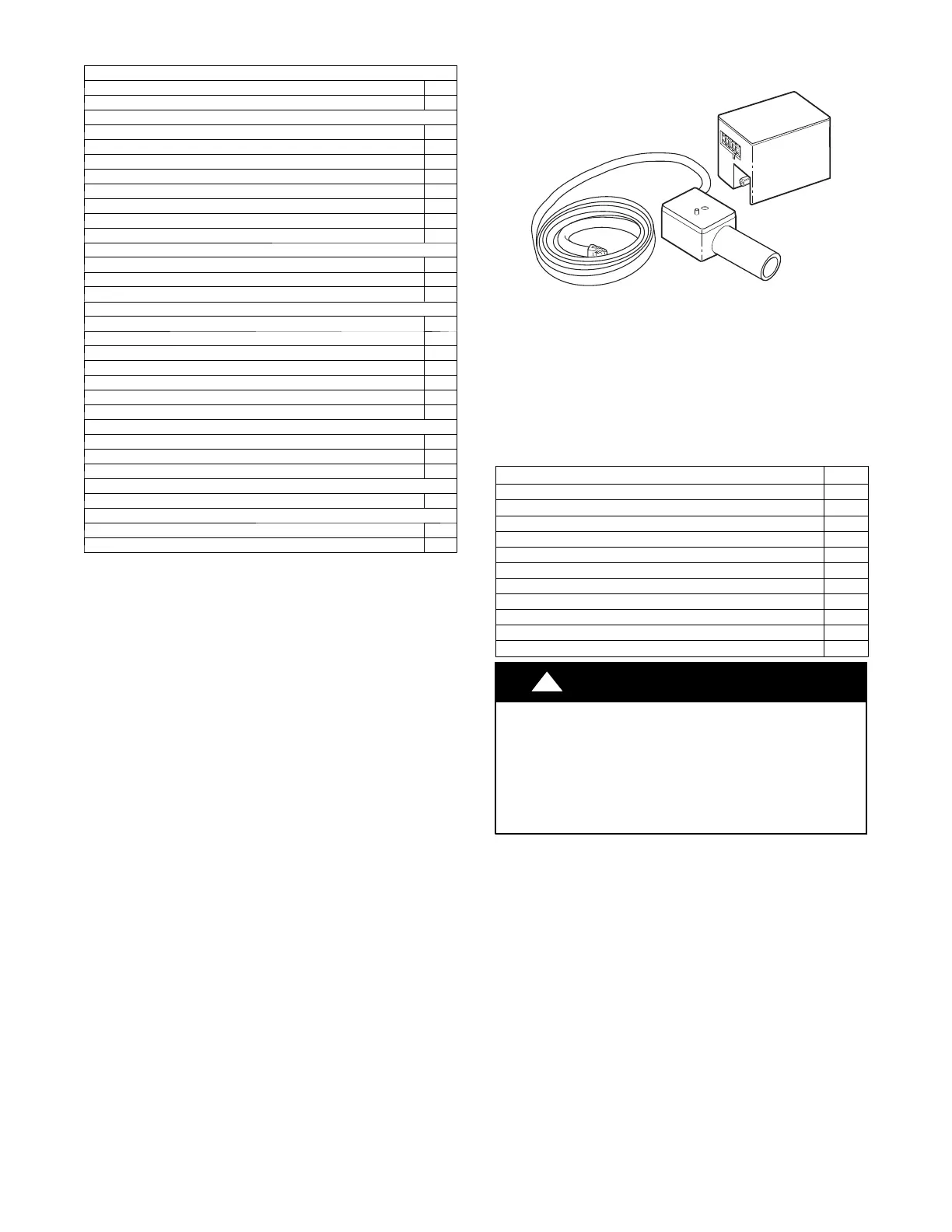

Fig. 1 – Condensate Pump Accessory
On high wall fan coils, the condensate pump accessory is
recommended when adequate drain line pitch cannot be provided,
or when the condensate must move up to exit.
The pump has a lift capability of 12 ft (3.6 m) on the discharge side
if the pump is mounted in the fan coil or 6 ft (1.8 m) on the suction
side if the pump is remote mounted.
Table 1—Accessory Condensate Pump Kit Contents
Item Qty.
16 ft Transparent Suction/Discharge Tubing 1
Condensate Pump Assembly 1
Low voltage Power Cord 1
Transparent Detection Unit Vent Tubing 1
Power Cable 1
Wire Ties 6
Wall Mount Bracket 1
Adhesive 1
Detection Unit Mounting Bracket 1
⅝ --- i n R u b be r E l b o w 1
Detection Unit 1
!
WARNING
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury
or death.
Before installing, modifying, or servicing system, main
electrical disconnect switch must be in the OFF position.
There may be more than one disconnect switch. Lock out
and tag switch with a suitable warning label.
