DIMENSIONS -- INDOOR

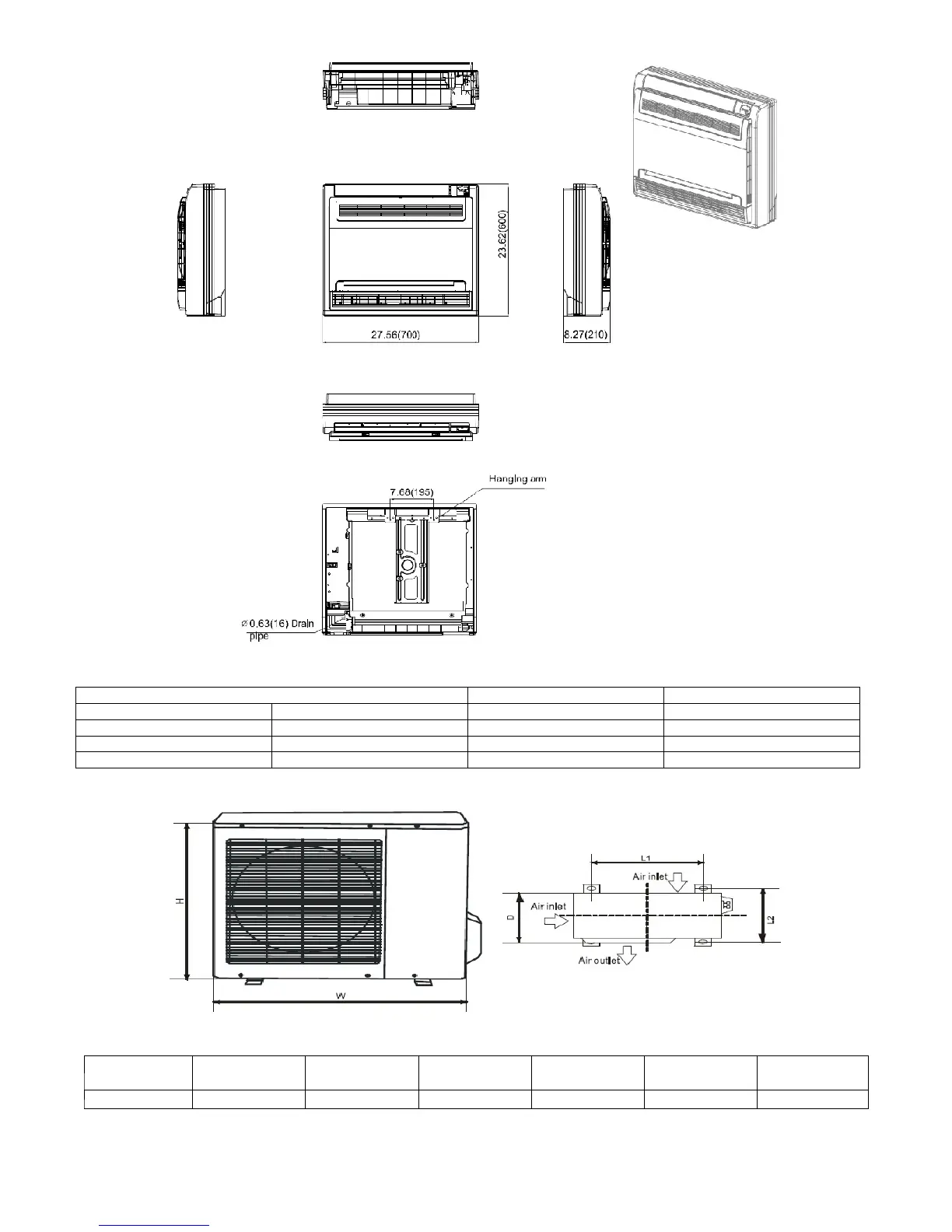

Fig. 2 – Indoor Unit
UNIT SIZE 9 12
Height in (mm) 8.27 (210) 8.27 (210)
Width in (mm) 27.56 (700) 27.56 (700)
Depth in (mm) 23.62 (600) 23.62 (600)
W e i g h t --- N e t Lb (kg.) 32.41 (14.7) 32.41 (14.7)
DIMENSIONS -- OUTDOOR
Fig. 3 – Outdoor unit
MODEL W in (mm) D in (mm) H in (mm) L1 in (mm) L2 in (mm)
OPERATING-
WEIGHT lb (kg)
9K/12K 32.0 (810) 12.2 (310) 22.0 (558) 20.9 (530) 11.4 (290) 82.5 (37.4)
