Carrier 38MGRQ30D 3 Series - 4-Way Valve

38MGR-04SM Specifications subject to change without notice. 101
DISASSEMBLY INSTRUCTIONS SIZES 36 AND 48 (CONT)

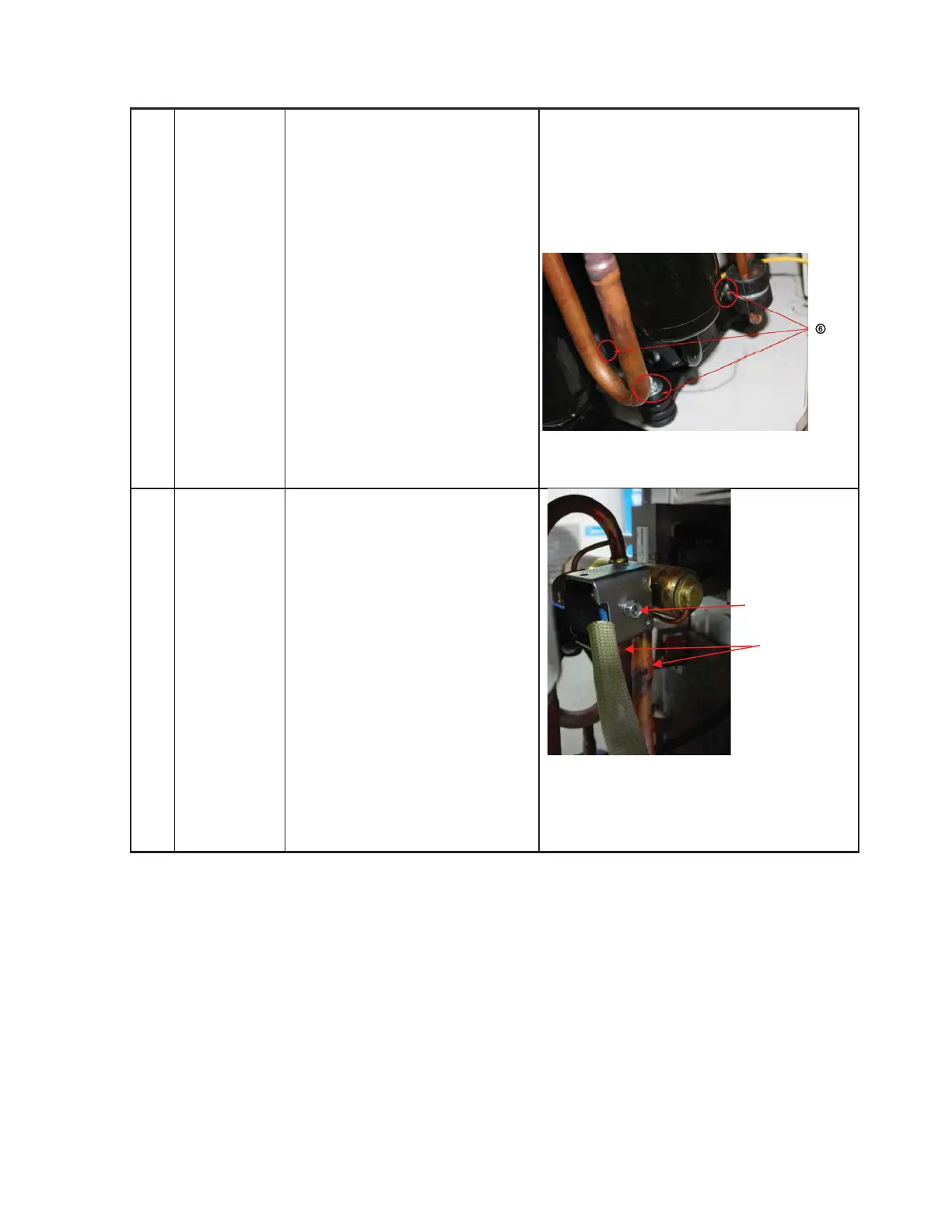

5) Remove the discharge pipe
and suction pipe with a
burner.
6) Remove the hex nuts and
washers securing the
compressor to the bottom
plate.
7) Lift the compressor.
5 The 4-way
valve
How to remove the 4-way valve
2) Extract the refrigerant gas.
3) Remove the electrical parts
(see section 3)
4) Remove the coil screw and
remove the coil.
5) Detach the welded parts of
the 4-way valve and pipe.
Coil
Welded
p
arts
1) Complete steps 5 and 6 in
the Fan Assembly section
and all the steps in the
Panel Plate section.
