Carrier 38MHRC - Pcb Diagrams (Heat Pump)

38MHRC: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
28
PCB DIAGRAMS (HEAT PUMP)
A210485

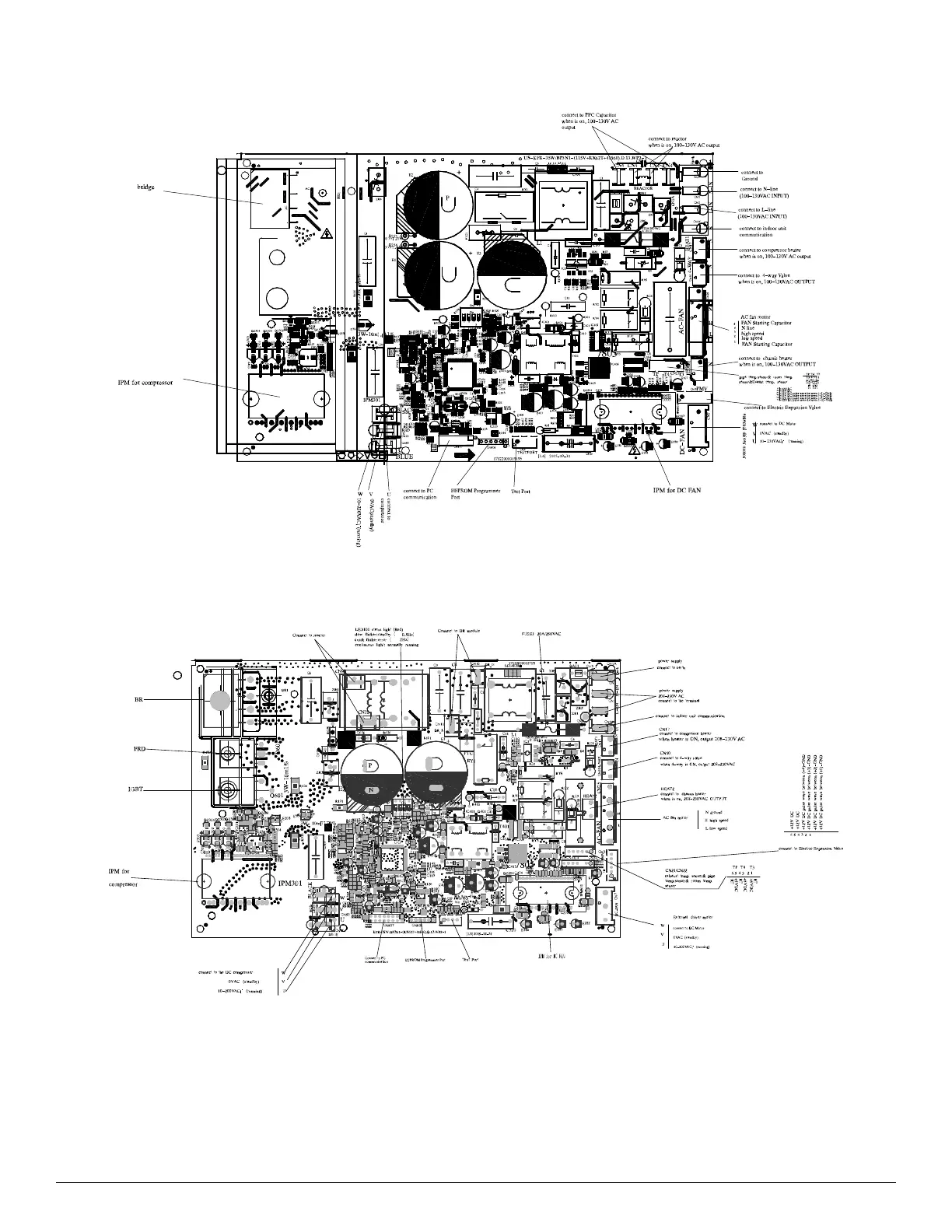

Fig. 32 —Size 12K (115V)
A210486
Fig. 33 —Sizes 09-12K (208/230V)
