Carrier 38MHRCQ12AA1 - Pressure on the Service Port - Cooling Charts

SG-38MHRC-01 Specifications subject to change without notice. 49
Pressure on the Service Port
Table 20 — Cooling Chart

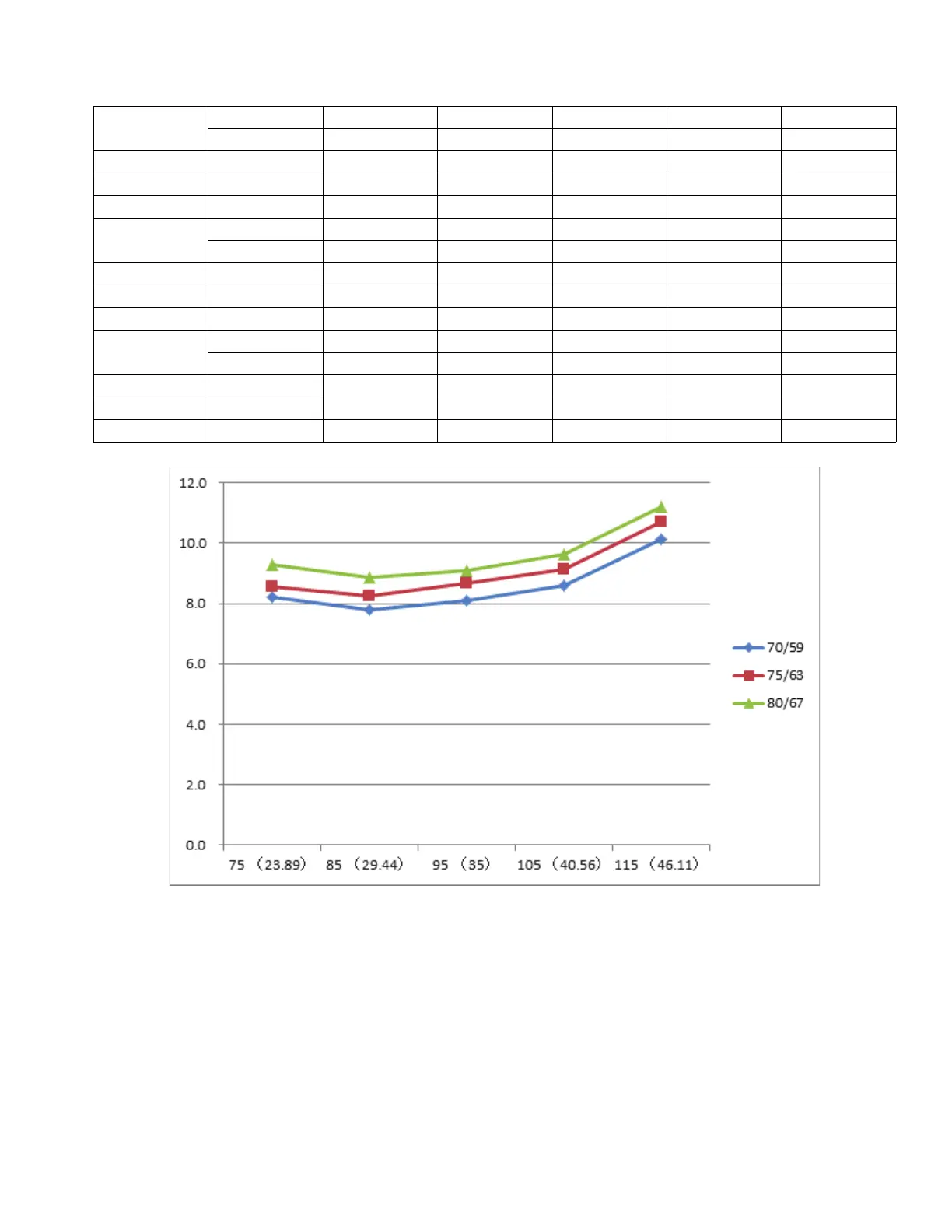

Fig. 51 — Cooling Chart
°F (°C)
ODT 75 85 95 105 115
IDT (23.89) (29.44) (35) (40.56) (46.11)
BAR 70/59 8.2 7.8 8.1 8.6 10.1
BAR 75/63 8.6 8.3 8.7 9.1 10.7
BAR 80/67 9.3 8.9 9.1 9.6 11.2
°F
(°C)
ODT 75 85 95 105 115
IDT (23.89) (29.44) (35) (40.56) (46.11)
PSI 70/59 119 113 117 125 147
PSI 75/63 124 120 126 132 155
PSI 80/67 135 129 132 140 162
°F
(°C)
ODT 75 85 95 105 115
IDT (23.89) (29.44) (35) (40.56) (46.11)
MPA 70/59 0.82 0.78 0.81 0.86 1.01
MPA 75/63 0.86 0.83 0.87 0.91 1.07
MPA 80/67 0.93 0.89 0.91 0.96 1.12
