12 Specifications subject to change without notice. SG-38MPRA-02

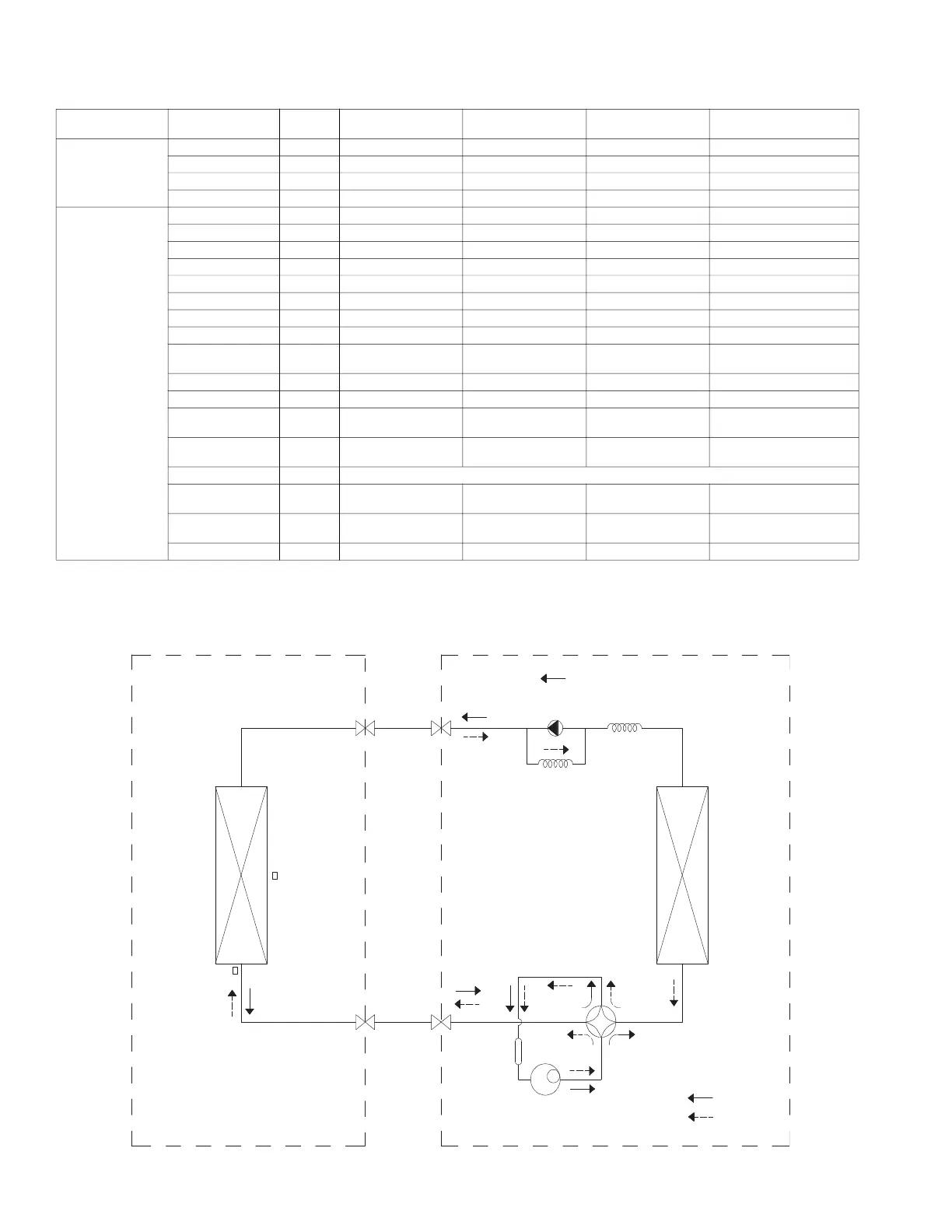

FAN AND MOTOR SPECIFICATIONS
Table 11 — Fan and Motor Specifications
REFRIGERATION CYCLE DIAGRAM
Fig. 8 —Heat Pumps
9K
(208/230V)
12K
(208/230V)
18K
(208/230V)
24K
(208/230V)
OUTDOOR FAN
MATERIAL - glass fiber+AS glass fiber+AS glass fiber+AS glass fiber+AS
TYPE - ZL-490*151*12-3KN ZL-490*151*12-3KN ZL-560*139*12-3KN ZL-560*139*12-3KN
DIAMETER INCH 19.29(490) 19.29(490) 22.05(560) 22.05(560)
HEIGHT INCH 5.94(151) 5.94(151) 5.47(139) 5.47(139)
OUTDOOR FAN
MOTOR
MODEL - ZKFN-50-8-2 ZKFN-50-8-2 ZKFN-120-8-2 ZKFN-120-8-2
VOLTS V 208/230 208/230 208/230 208/230
PHASE 1 1 1 1
HERTZ HZ 60 60 60 60
FLA A 0.6 0.6 0.6 0.6
RATED HP HP 0.156 0.156 0.156 0.156
OUTPUT W 50 50 120 120
TYPE - DC DC DC DC
INSULATION
CLASS
- E E E E
SAFE CLASS - IPX4 IPX4 IPX4 IPX4
INPUT W 115 115 156 156
RANGE OF
CURRENT
AMPS 0.5 0.5 0.55 .055
RATED
CURRENT
AMPS 0.5±10% 0.5±10% 0.5±10% 0.5±10%
CAPACITOR ΜF No Capacitor
SPEED
REV/
MIN
900/850/750 900/850/750 1050/900/850 1050/900/850
RATED RPM
REV/
MIN
900 900 1050 1050
MAX. INPUT W 137 137 156 156
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
COMPRESSOR
ïWAY VALVE
ïWAY VALVE
ïWAY VALVE
COOLING
HEATING
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
ACCUMULATOR
ROODTUOROODNI
CHECK VALVE
(Heating Model only)
CAPILLARY TUBE
