6 Specifications subject to change without notice. SG-38MPRA-02

CLEARANCES

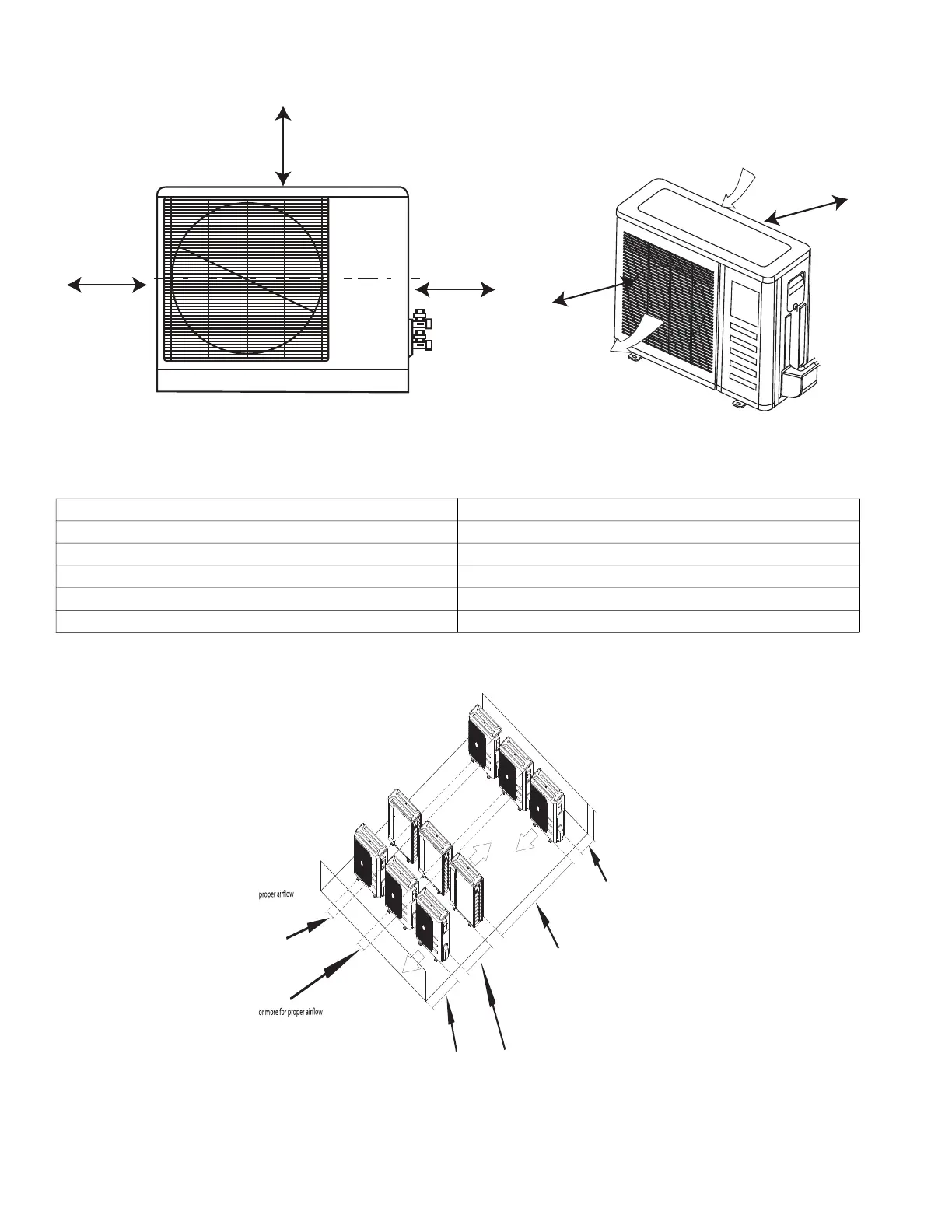

Fig. 3 — Clearances

Table 4 — Clearances

NOTE: The outdoor unit must be mounted at least 2in (50mm) above the maximum anticipated snow depth.

Fig. 4 —Clearances for multiple units

Air outlet

Air inlet

UNIT MINIMUM VALUE IN. (MM)

A 24 (609)

B 24 (609)

C 24 (609)

D 4 (101)

E 4 (101)

118in (300cm) or more

19in (48cm) or more

on a multiple parallel

unit arrangement

4in (10cm) or more on

a single parallel unit

arrangement

24in (60cm)

or more

59in (150cm)

or more on a

multiple parallel

unit arrangement

24in (61cm) or more

on a single parallel

unit arrangement

9.8in (25cm)

or more for

24in (61cm) or

more is

recommended

for service

9.8in (25cm)

24in (61cm)

or more is

recommended

for service
