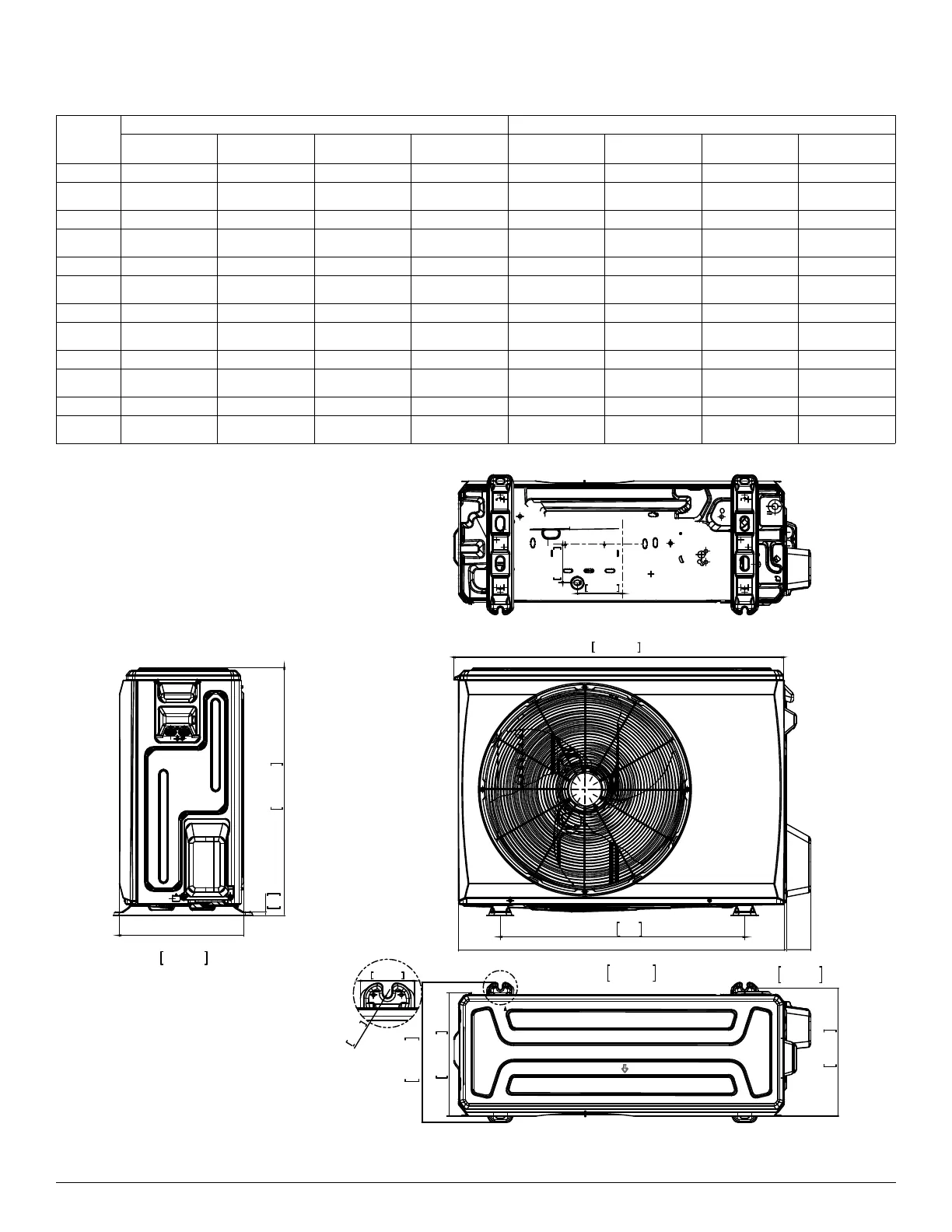

DIMENSIONS
Table 4 — Dimensions
Fig. 4 — Size 18K
System
Size
(208/230V) Packaging
Height (H)
in (mm)
Width (W)
in (mm)
Depth (D)
in (mm)
Net Weight
lbs. (kg)
Height (H)
in (mm)
Width (W)
in (mm)
Depth (D)
in (mm)
Net Weight
lbs. (kg)
18K 21.81 (554) 31.69 (805) 12.99 (330) 75.84 (34.4) 24.21 (615) 36.02 (915) 14.57 (370) 81.35 (36.9)
18K High
Heat
26.50 (673)
35.04 (890) 13.29 (338) 102.95 (46.7) 29.13 (740) 39.17 (995) 15.67 (398) 109.79 (49.8)
24K 26.50 (673) 35.04 (890) 13.29 (338) 102.29 (46.4) 29.13 (740) 39.17 (995) 15.67 (398) 109.79 (49.8)
24K High
Heat
31.89 (810) 37.24 (946) 16.02 (407) 136.69 (62) 34.84 (885) 42.91 (1090) 19.69 (500) 145.50 (36)
30K 31.89 (810) 37.24 (946) 16.02 (407) 141.76 (64.3) 34.84 (885) 42.91 (1090) 19.69 (500) 151.46 (68.7)
30K High
Heat
31.89 (810) 37.24 (946) 16.02 (407) 159.83 (72.5) 34.84 (885) 42.91 (1090) 19.69 (500) 169.75 (77)
36K 31.89 (810) 37.24 (946) 16.02 (407) 151.68 (68.8) 34.84 (885) 42.91 (1090) 19.69 (500) 161.16 (73.1)
36K High
Heat
52.48 (1333) 37.48 (952) 16.34 (415)
227.07 (103)
58.27 (1480) 43.11 (1095) 19.49 (495)
255.73 (116)
48K 52.48 (1333) 37.48 (952) 16.34 (415)
217.59 (98.7)
58.27 (1480) 43.11 (1095) 19.49 (495)
248.68 (112.8)
48K High
Heat
52.48 (1333) 37.48 (952) 16.34 (415)
220.24 (99.9)
58.27 (1480) 43.11 (1095) 19.49 (495)
248.90 (112.9)
60K 52.48 (1333) 37.48 (952) 16.34 (415)
217.15 (98.5)
58.27 (1480) 43.11 (1095) 19.49 (495)
248.46 (112.7)
60K High
Heat
52.48 (1333)
37.48 (952) 16.34 (415) 239.86 (108.8) 58.27 (1480) 43.11 (1095) 19.49 (495) 271.61 (123.2)
A
DETAIL
SCALE 2:1
334.162
13.16
894.715
35.23
663
26.1
890.603
35.06
71.521
2.82
337.562
13.29
73.517
2.89
122.053
4.81
R
6.026
0.24
11
0.43
672.787
26.49
379.586
14.94
346.674
13.65
106.051
4.18
