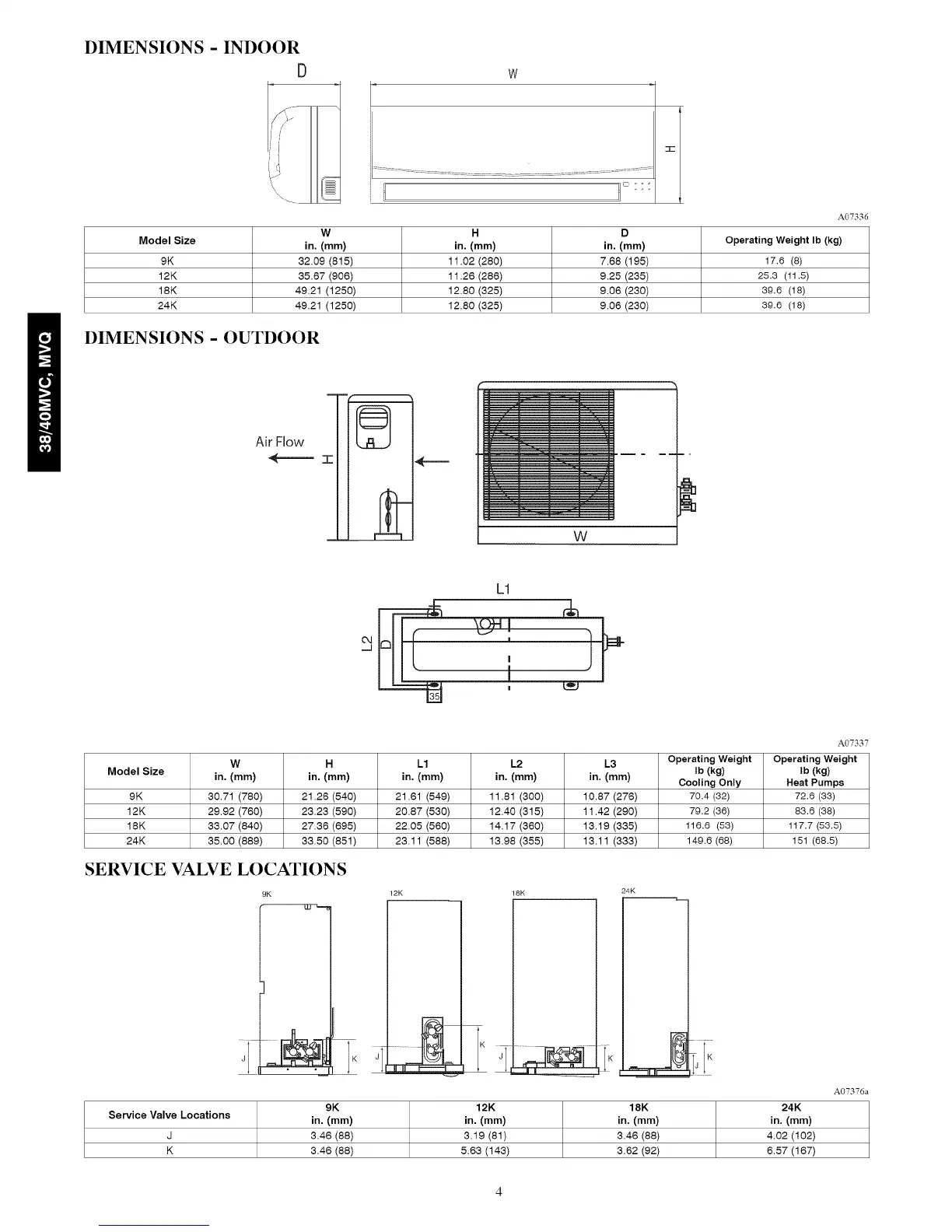

DIMENSIONS - INDOOR
D
A07336
W H D
Model Size in. (mm) in. (mm) in. (mm) Operating Weight Ib (kg)
9K 32.09 (815) 11.02 (280) 7.68 (195) 17.6 (8)
12K 35.67 (906) 11.26 (286) 9.25 (235) 25.3 (11.5)
18K 49.21 (1250) 12.80 (325) 9.06 (230) 39.6 (18)
24K 49.21 (1250) 12.80 (325) 9.06 (230) 39.6 (18)
DIMENSIONS - OUTDOOR
i ,_======_i
I IH==
lllll
W
L1
4-
_k
I r========4._| _ m
solb L.
W H L1 L2 L3 Operating Weight
Model Size in. (mm) in. (mm) in. (mm) in. (mm) in. (mm) Ib (kg)
Cooling Only
9K 30.71 (780) 21.26 (540) 21.61 (549) 11.81 (300) 10.87 (276) 70.4 (32)
12K 29.92 (760) 23.23 (590) 20.87 (530) 12.40 (315) 11.42 (290) 79.2 (36)
18K 33.07 (840) 27.36 (695) 22.05 (560) 14.17 (360) 13.19 (335) 116.6 (53)
24K 35.00 (889) 33.50 (851) 23.11 (588) 13.98 (355) 13.11 (333) 149.6 (68)
SERVICE VALVE LOCATIONS
9K 12K 18K
24K
A07337
Operating Weight
Ib (kg)
Heat Pumps
72.6 (33)
83.6 (38)
117.7 (53.5)
151 (68.5)
..... I1_tl .....
IK IIIt_]j K
9K 12K 18K 24K
Service Valve Locations in. (mm) in. (mm) in. (mm) in. (mm)
J 3.46 (88) 3.19 (81) 3.46 (88) 4.02 (102)
K 3.46 (88) 5.63 (143) 3.62 (92) 6.57 (167)
A07376a
