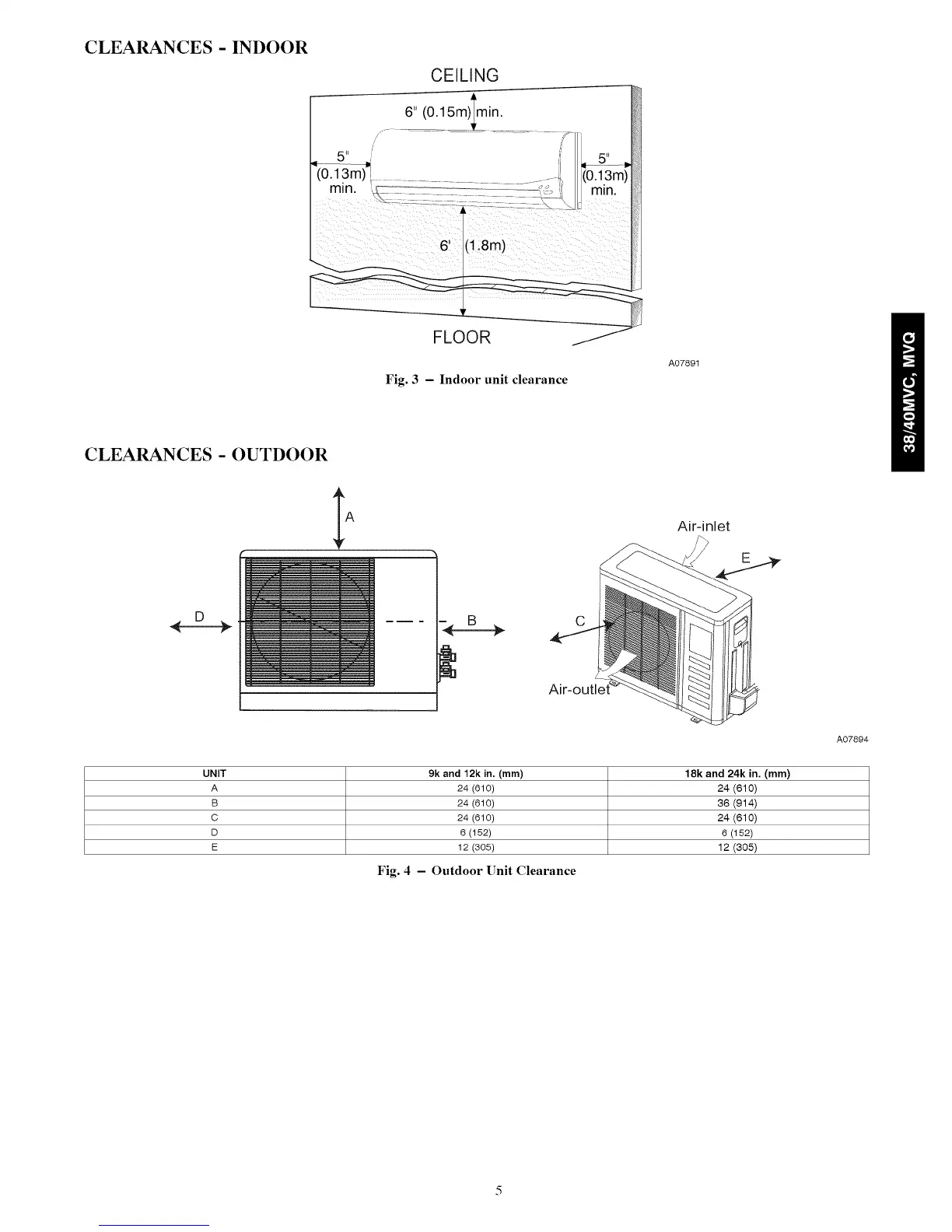

CLEARANCES - INDOOR
CEILING
J-6"(0.15m!._mi n.
/
6' (i8m)
FLOOR
Fig. 3 - Indoor unit clearance
A07891
CLEARANCES - OUTDOOR
IA
Air-inlet
C
Air-outle
UNIT 9k and 12k in. (mm) 18k and 24k in. (mm)
A 24 (610) 24 (610)
B 24 (610) 36 (914)
C 24 (610) 24 (610)
D 6 (152) 6 (152)
E 12 (305) 12 (305)
Fig. 4 - Outdoor Unit Clearance
A07894
