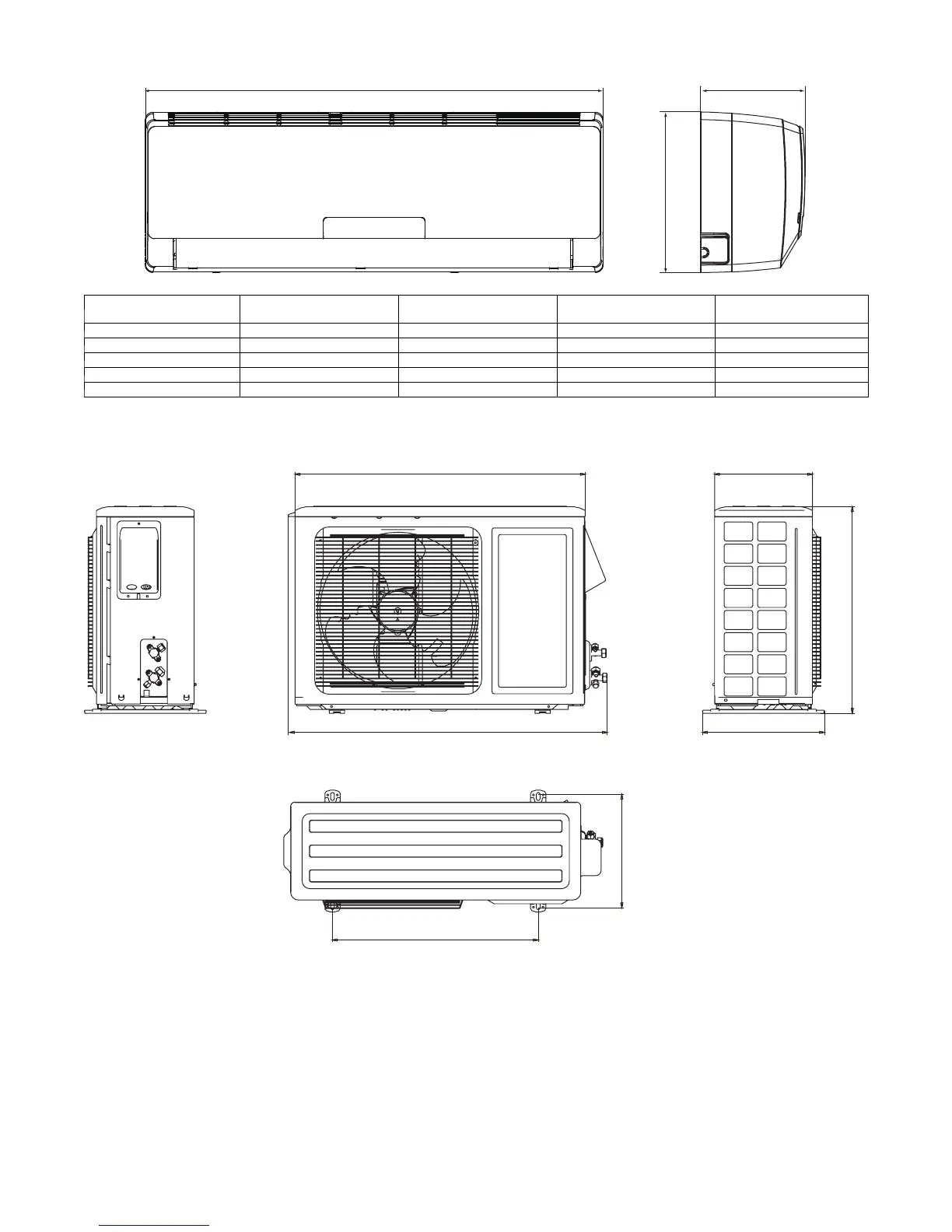

DIMENSIONS -- INDOOR
WD
H
A12377
Unit Size
W
In. (mm)
H
In. (mm)
D
In. (mm)
Net Operating Weight
Lbs. (Kg)
9K 30.3 (770) 11.1 (283) 7.9 (201) 18.7 (8.5)
12K 30.3 (770) 11.1 (283) 7.9 (201) 19.8 (9.0)
18K 34.0 (865) 12.0 (305) 8.5 (215) 26.5 (12.0)
24K 39.7 (1008) 12.6 (319) 8.7 (221) 33.1 (15.0)
30/36 K 53.1 (1349) 12.8 (325) 10.0 (254) 44.1 (20.0)
Fig. 1 --- Indoor Unit Dimensions
DIMENSIONS -- OUTDOOR
30.0 (762)
33.4 (848)
12.6 (320)
10.1 (257)
21.3 (540)
11.7 (267)
21.3 (540)
Unit: IN. (mm)
A12531
Fig. 2 --- 9K and 12K 115V (Net Operating Weight: 75 lbs. / 34 kg)
