DIMENSIONS -- OUTDOOR CONTINUED
25.9 (658)
10.8 (274)
28.0 (711)
18.5 (470)
12.5 (318)
11.8 (300)
21.7 (551)
Unit: IN. (mm)
Unit: IN. (mm)
A12532

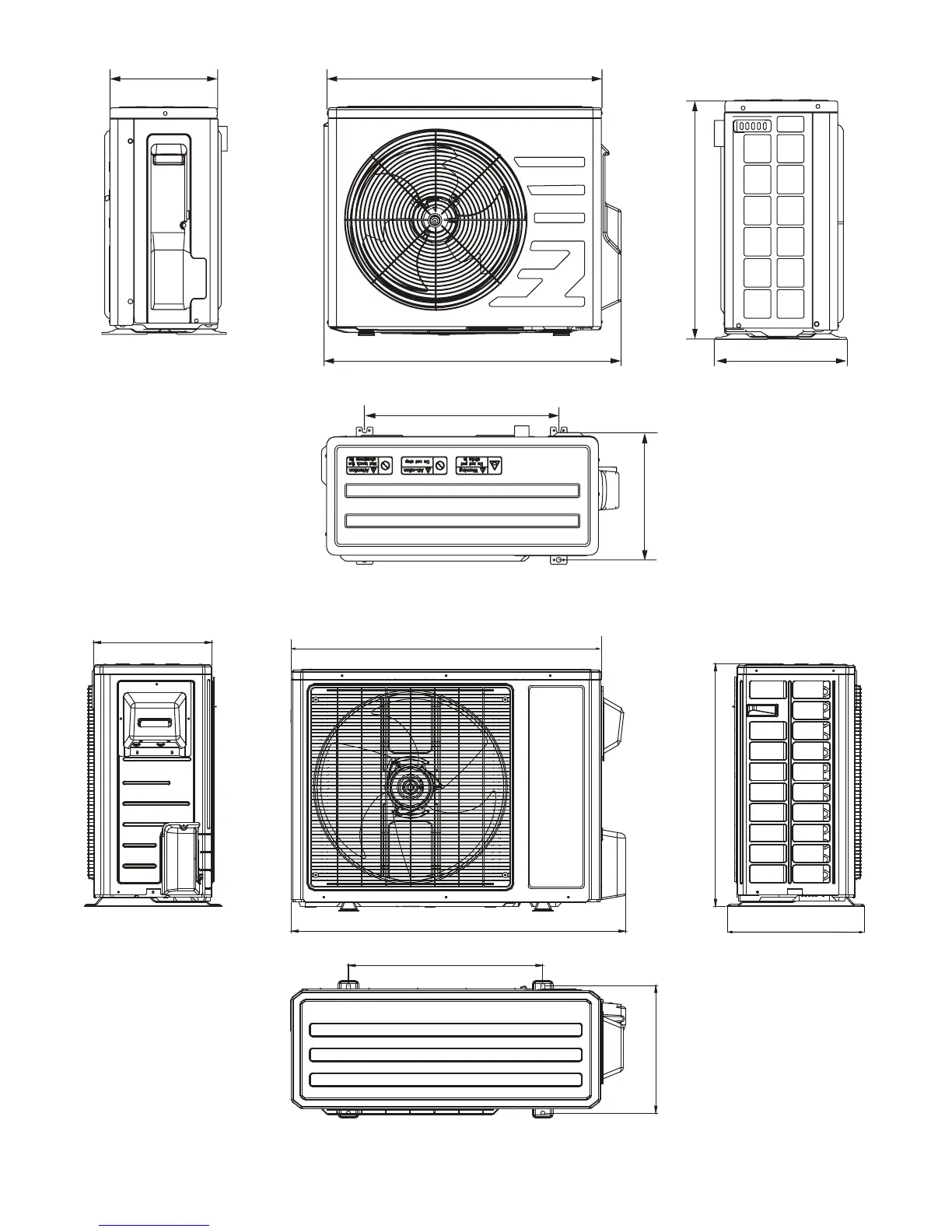

Fig. 3 --- 12K 230V (Net Operating Weight: 63.8 lbs. / 30 kg)
35.0 (890)
14.3 (364)
13.4 (340)
37.9 (963)
15.6 (396)
22.0 (560)
27.6 (700)
Unit: IN. (mm)
A12533
Fig. 4 --- 18K and 24K (Net Operating Weight: 112.2 lbs. / 51 kg)
