DIMENSIONS -- INDOOR
H
D
W
A08289
Unit Size
W
In. (mm)
H
In. (mm)
D
In. (mm)
Net Operating Weight
Lbs. (Kg)
9k 30.3 (770) 9.8 (250) 7.84 (1.99) 18.7 (8.5)
12k 32.7 (830) 11.2 (285) 8.9 (225) 24.2 (11)

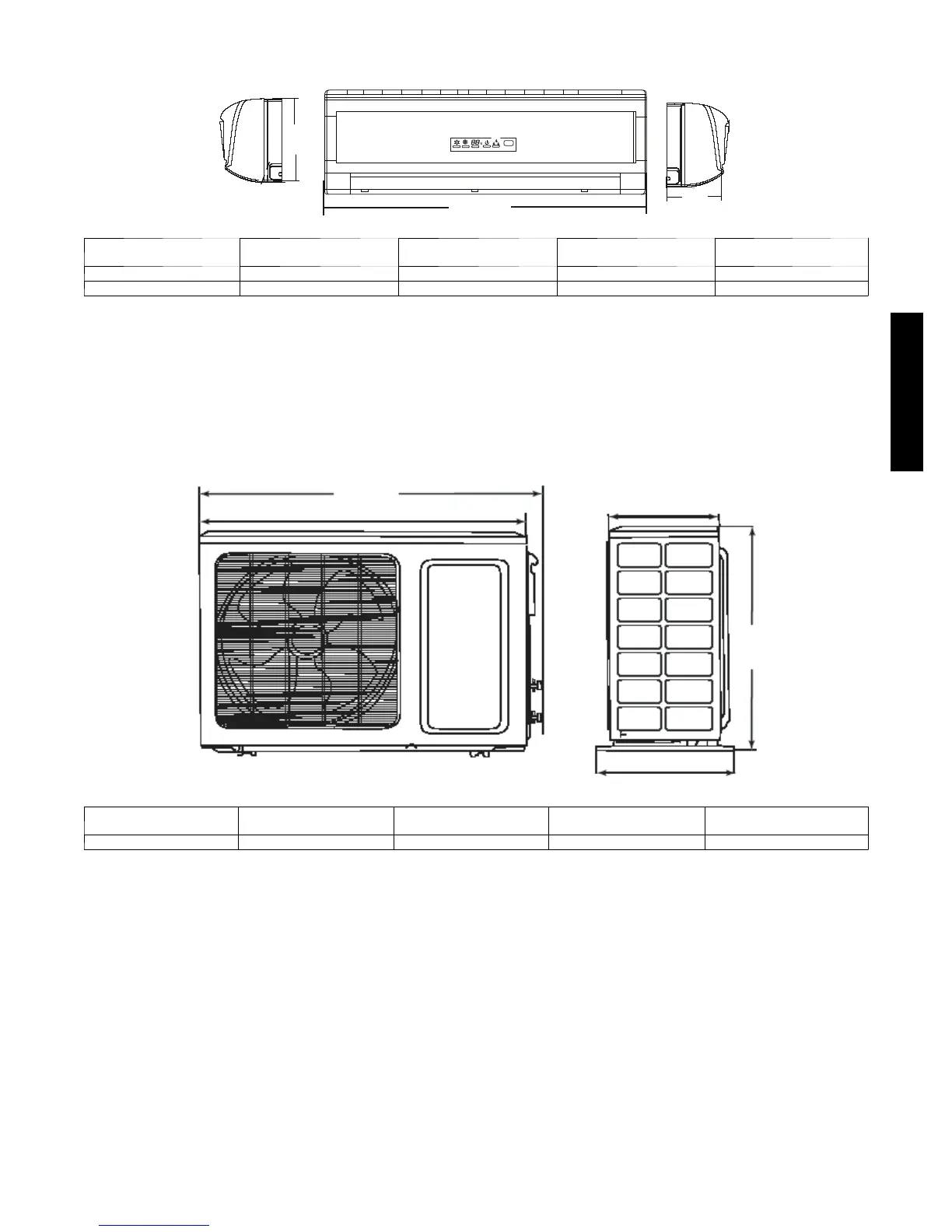

Fig. 2 – Dimensions of Indoor Unit
DIMENSIONS -- OUTDOOR
W
D
H
A08290
Unit Size
W
In. (mm)
D
In. (mm)
H
In. (mm)
Net Operating Weight
Lbs. (Kg)
9k & 12k 33.4 (848) 12.6 ( 320) 21.3 ( 540) 88 (40)
Fig. 3 – Dimensions of Outdoor Unit
