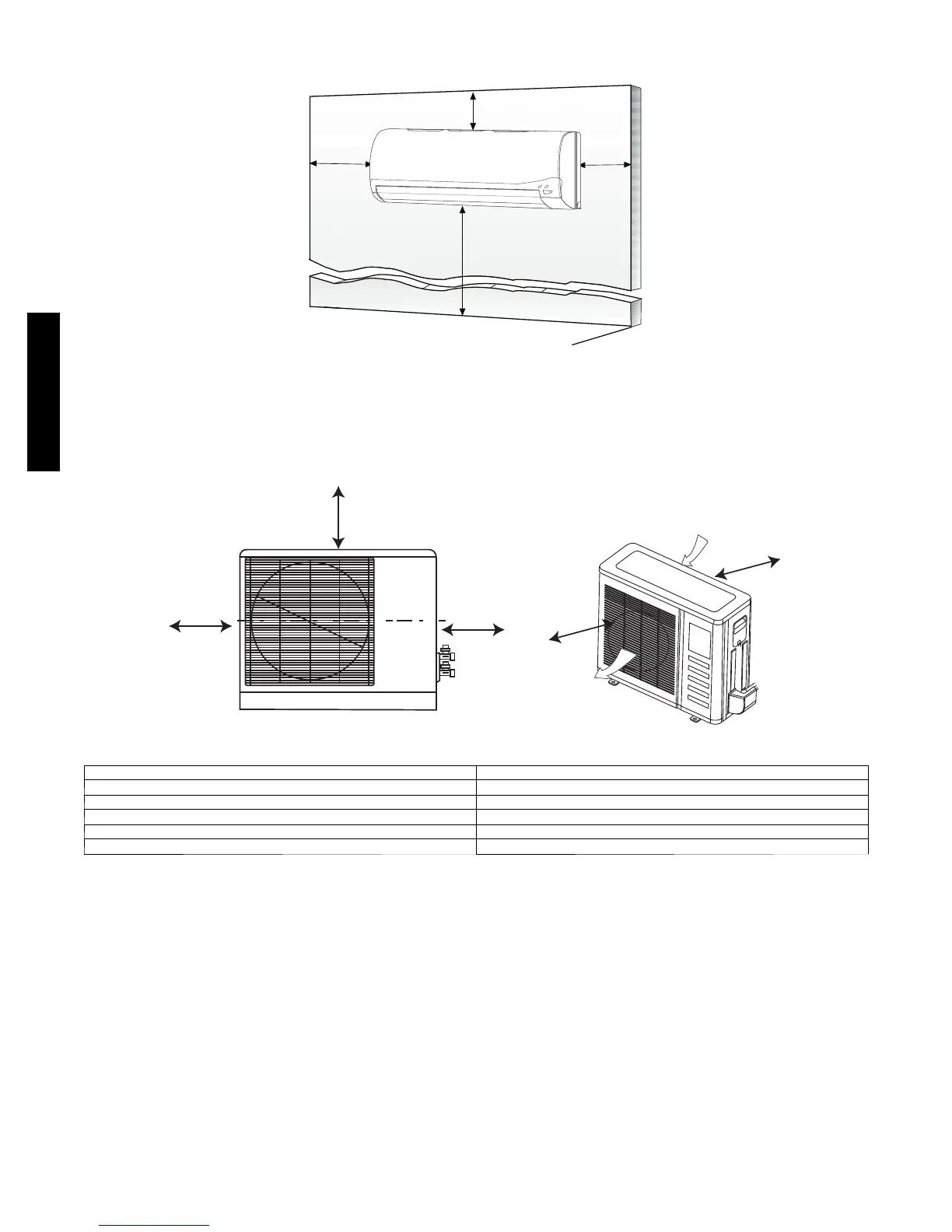

CLEARANCES -- INDOOR
6
"
(0.15m
)
min.
5
"
(0.13m)
min.
6'
5
"
(0.13m)
min.
(1.8m)
CEILING
FLOOR
A07891
Fig. 4 – Indoor unit clearance
CLEARANCES -- OUTDOOR
A
D
B
Air-outlet
Air-inlet
C
E
A07894
UNIT 12k in. (mm)
A 20 (508)
B 20 (508)
C 24 (610)
D 12 (305)
E 12 (305)
Fig. 5 – Outdoor Unit Clearance
