Carrier 40PZ - Dimensions

6

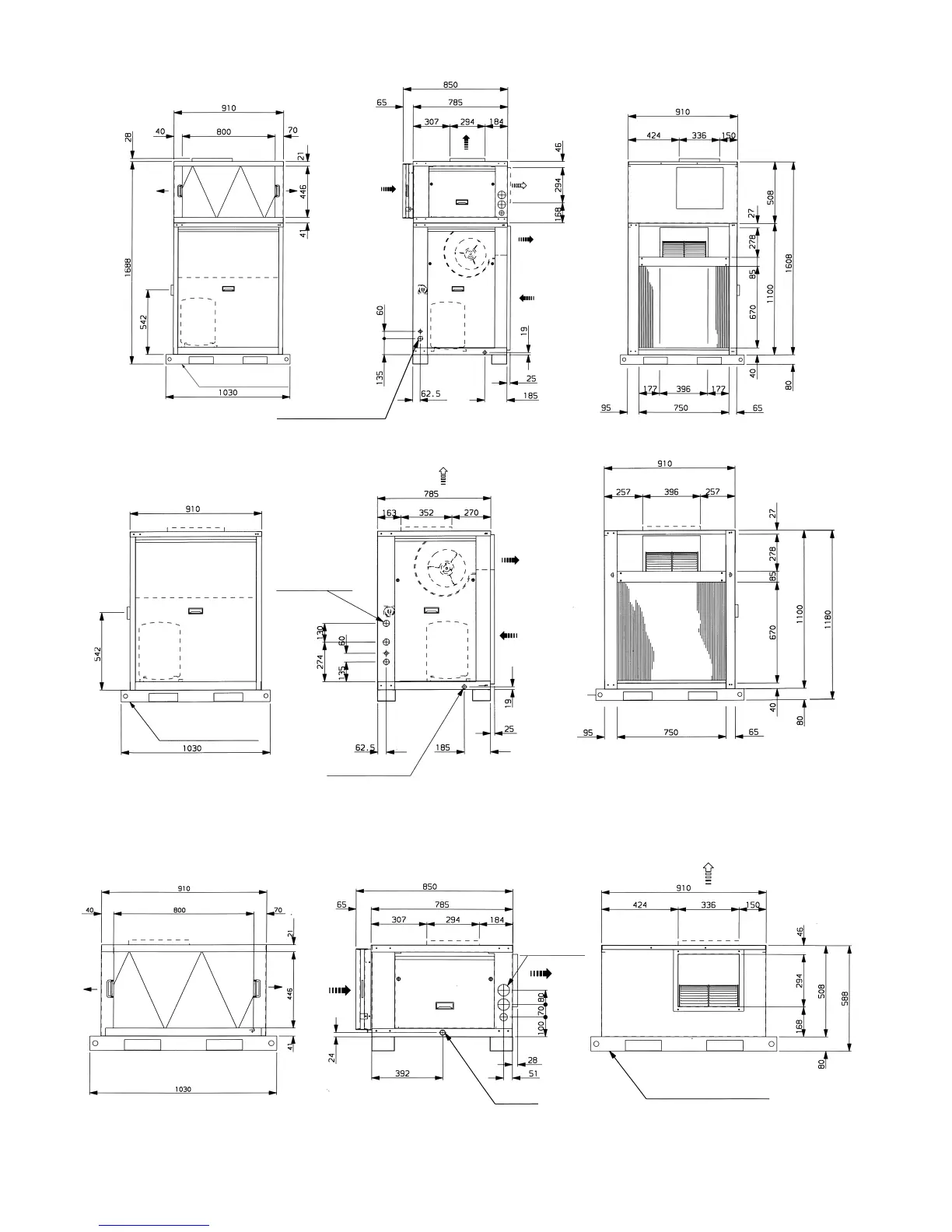

Fig. 1 - Dimensions, mm
50VZ/PZ 015
38VZ/PZ 015
Optional discharge
40PZ 015
Optional
discharge
Power connection
Drain 3/4" gas
Cable inlet
Optional discharge
Transport skid
Drain
Cable inlet
Transport skid
Transport skid
When designing an installation, always use up-to-date drawings, available from your local Carrier office
