11

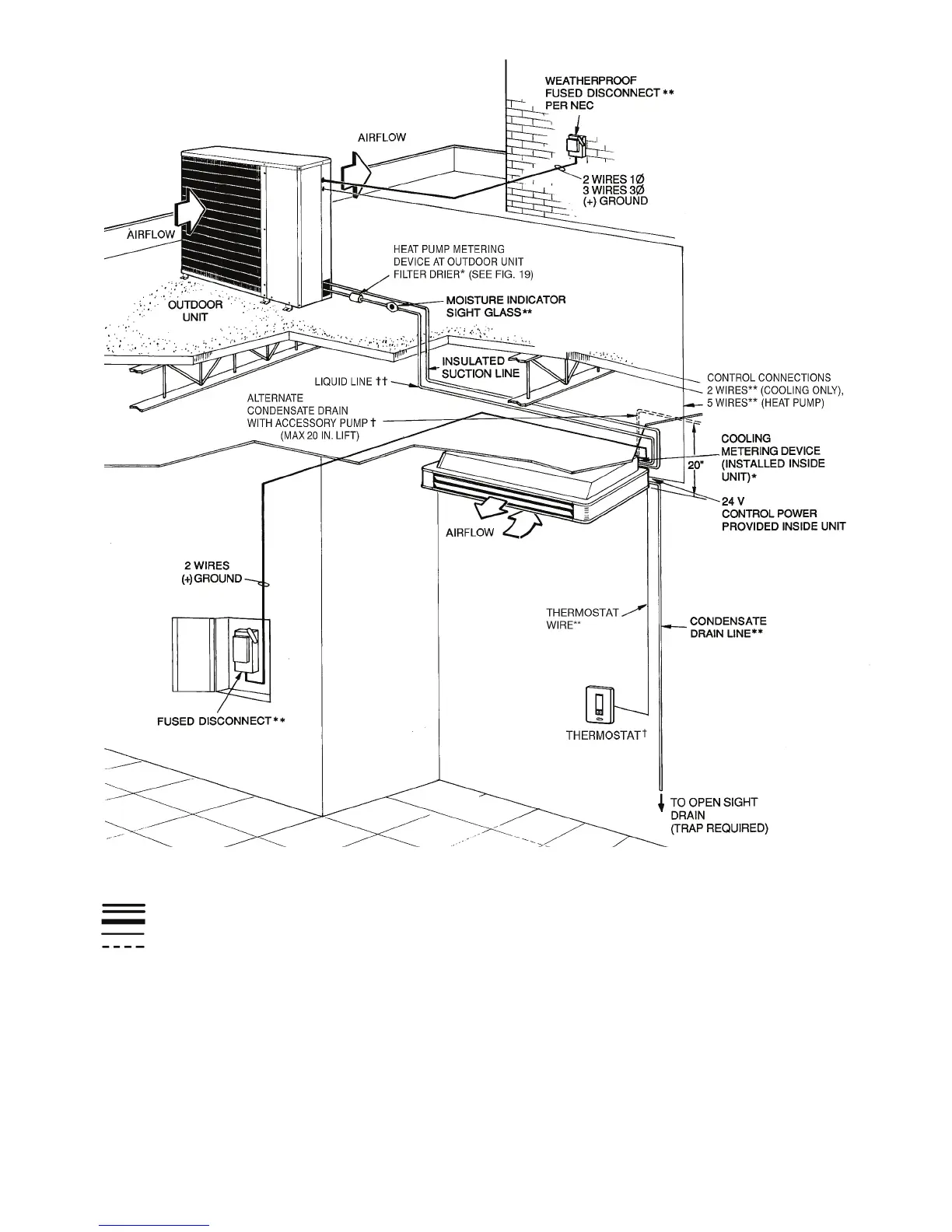

Fig. 14 — Component Location (Typical Ceiling-Suspended System)
LEGEND
*Standard.
†Accessory item.
**Field supplied.
††Insulate for heat pump application.
NOTES:
1. All piping must follow standard refrigerant piping techniques.
2. All wiring must comply with the applicable local and national codes.
3. Liquid line need not be insulated (cooling only units).
4. Wiring and piping shown are general points-of-connection guides
only and are not intended for a specific installation.
5. Insulate condensate line if run above a conditioned space.
7. Metering device is provided.
φ — Phase
NEC — National Electrical Code
Piping
Line Voltage
24 V
Thermistor
