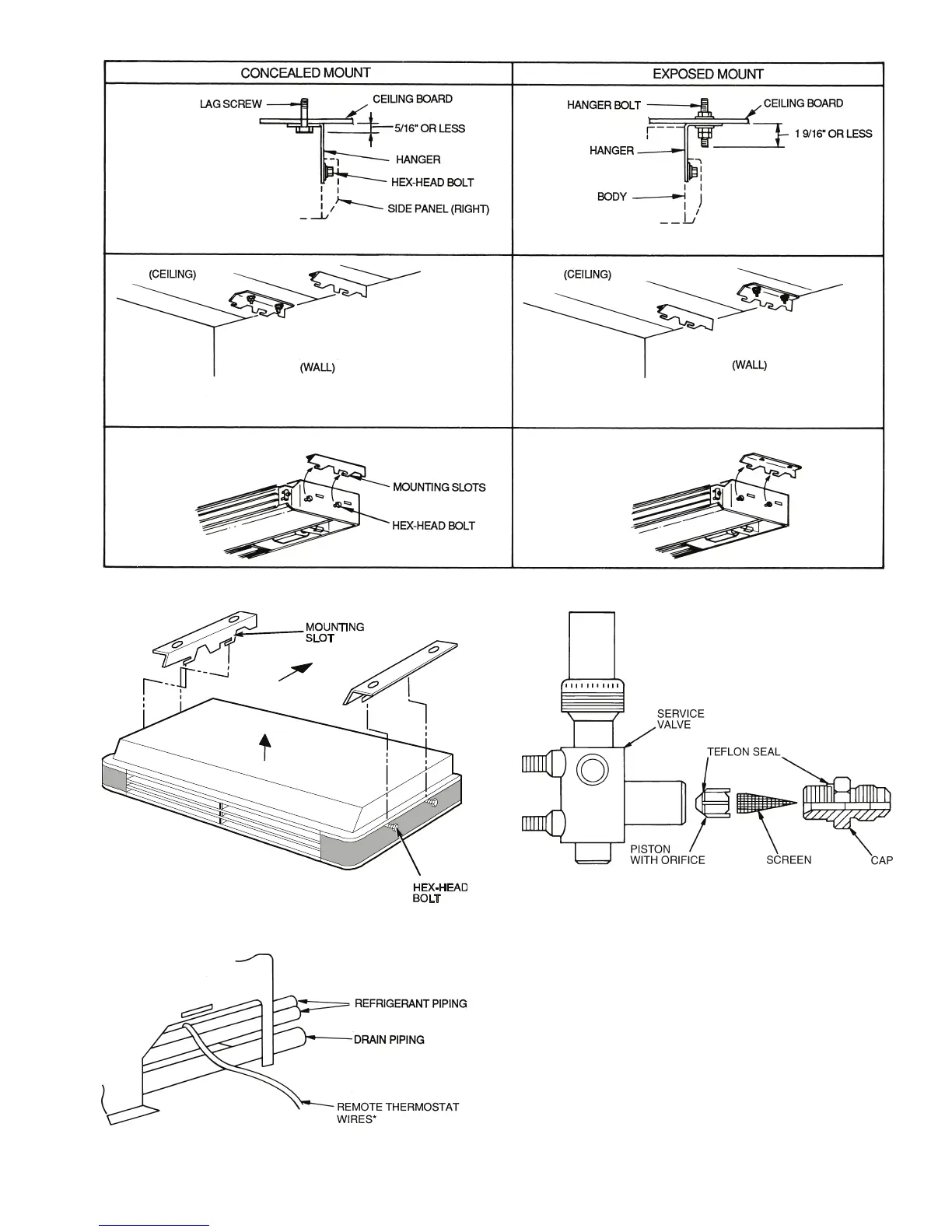

Fig. 10 — Mounting Hanging Brackets
Fig. 11 — Hanging Fan Coil Unit
*Field-supplied.
Fig. 12 — Routing Wires Over Piping
NOTE: Teflon Seal must face toward the outdoor heat pump unit.
Fig. 13 — AccuRater Metering Device at Service
Valve (Bypass Type Components),
Heat Pump Systems Only
