17

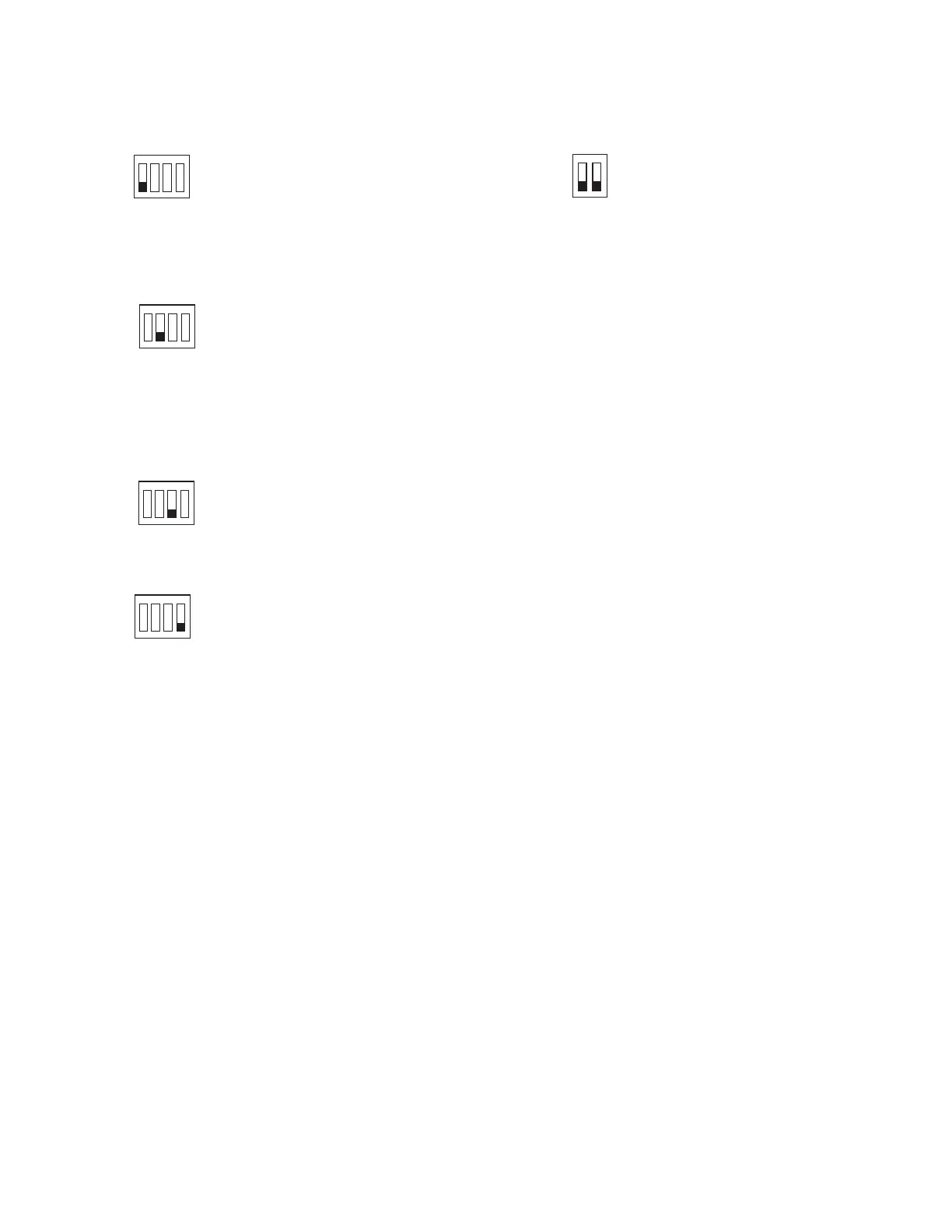

APPENDIX A —DIP SWITCH SETTINGS
There are 2 DIP switches on the main board. Figures A and B
show the settings for each parameter controlled by a switch.
Switches are
shown in the default settings.
v
POSITION 1 — START-UP
OFF Auto Addressing Mode (Default)
ON Factory Test Mode
POSITION 2
OFF Normal Mode (Default)
ON Factory Self-Checking Mode
POSITION 3 — NOT USED
POSITION 4 — INDOOR UNIT IDENTIFICATION
OFF Standard Indoor Unit (Default)
ON
Mode Priority Indoor Unit (HP only)
(IDU address must be 63)
Fig. A — SW1 Settings
ON
OFF
1234
ON
OFF
1234
ON
OFF
1234
ON
OFF
1234
POSITION 1, 2 — NOT USED
Fig. B — SW8 Settings
ON
OFF
