GB - 5
42HQE009/012/018/022-38YE009/012/018/022
ENGLISH

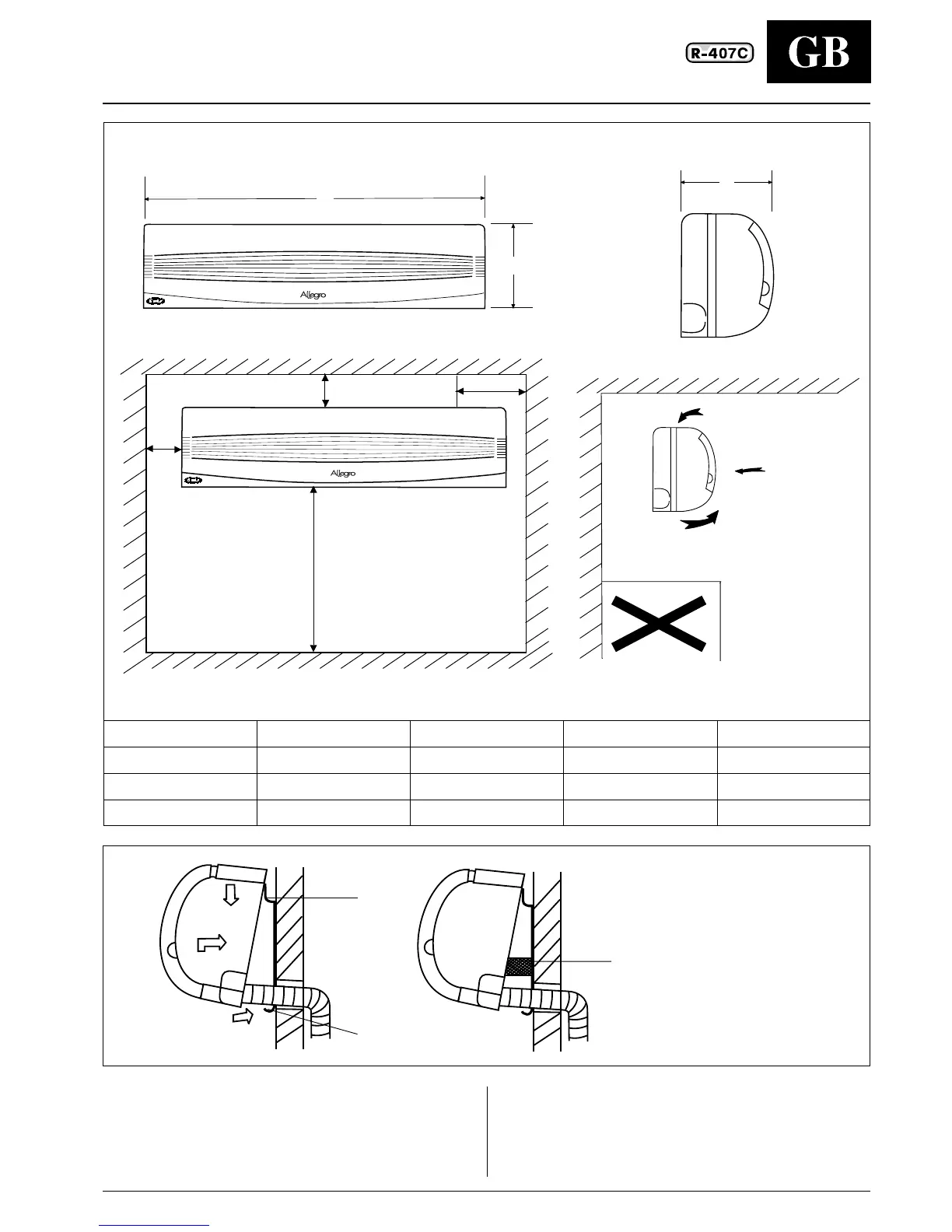

Indoor unit installation
1. Pass the piping through the hole in the wall.
2. Put the upper claw at the back of the indoor unit on the upper
hook of the installation plate, move the indoor unit from side
to side to see that it is securely hooked.
3. Piping can easily be made by lifting the indoor unit
B
A
C
Dimensions and Minimum clearances (mm)
Model 42HQE009 42HQE012 42HQE018 42HQE022
A mm 750 815 906 1080
B mm 250 280 286 330
C mm 188 195 235 222
Upper hooker
Low hooker
Cushioning material
Obstacle
with a cushioning material between the indoor unit
and the wall.
Get it out after finish piping.
4. Push the lower part of the indoor unit up on the wall, then move
the indoor unit from side to side, up and down to check if it is
hooked securely.
2000
min.
90 min.
200
min.
100
min.
To Next Page
