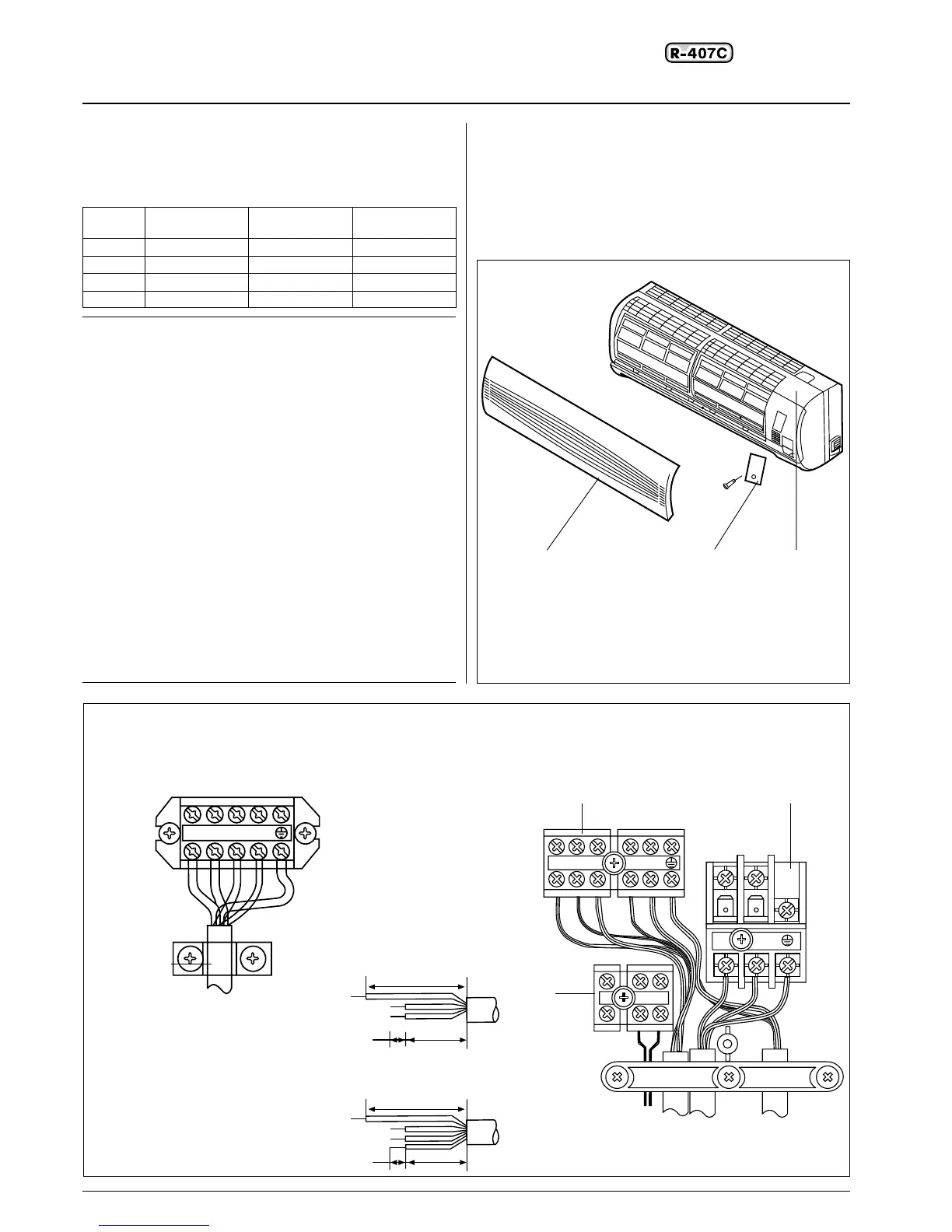

42HQE009/012/018/022-38YE009/012/018/022
GB - 6
Connecting Cables
1. Indoor/Outdoor connection cable should be H07RN-F5G type.
2. Remove the panel and remove the screw of electric cover, then
take down the cover.
3. Connect cables according to their marks to terminals.
4. Wrap those cables not connected with terminals with insulation
tapes, so that they will not touch any electrical components.
Indoor unit installation
Wiring connection
Prepare the power source for exclusive with the air conditioner.
The supply voltage must comply with the rated voltage of the air
conditioner: The plug socket shall be accessible after installation.
Model Power Source Plug socket and Wiring
Fuse rating
009 50Hz, 220~240V 10A =1.5
012 50Hz, 220~240V 16A =1.5
018 50Hz, 220~240V 25A =2.5
022 50Hz, 220~240V 32A =2.5
CAUTION
• Perform the wiring with sufficient capacity. Installation places
legally require a short circuit isolator to be attached to prevent
electrical shock.
• Do not extend the power cable code by cutting.
• Power voltage should in the range of 90% 110% of rated voltage.
• The plug of the air conditioner takes a grounding leg, so clients
should use a grounding socket so that the air conditioner can be
grounded efficiently.
• If the power cord is damaged, replacement should be conducted
by qualified technician or a serviceman.
NOTE: Remark per EMC Directive 89/336/EEC
For to prevent flicker impressions during the start of the compressor
(technical process), following installation conditions do apply.
1. The power connection for the air conditioner has to be done at
the main power distribution.
The distribution has to be of an low impedance, normally the
required impedance reaches at a 32 A fusing point.
2. No other equipment has to be connected with this power line,.
3. For detailed installation acceptance, please refer to your contract
with the power supplier if restrictions do apply for products like
washing machines, air conditioner or electrical ovens.
4. For power details of the air conditioner, refer to the rating plate of
the product.
5. For any question contact your local dealer.
Panel
Electric Cover
Frame
1 2(N) 3 4
12
3
4
N
5
L
78
N
Terminal block of indoor unit
42HQE009/012/018
Terminal block of indoor unit
42HQE022
Cord clamp
Connective cable
CDU signal cable
Power input cable
Connective cable
10 cm
40 cm
60 cm
GND
Power input cord
10 cm
40 cm
60 cm
GND
To Next Page
