GB - 7
42HQE009/012/018/022-38YE009/012/018/022
ENGLISH
Outdoor installation precaution
• Install the outdoor unit on a rigid base to prevent increasing noise
level and vibration.
• Determine the air outlet direction where the discharged air is no
blocked.
• In the case that the installation place is exposed to strong wind
such as a seaside operation by putting the unit lengthwise along
the wall or using a dust or shield plates.
• Specially in windy area, install the unit to prevent the admission of
wind. The connection between bracket and wall, bracket and the
air conditioner should be firm, stable and reliable.
• If need suspending installation, the installation bracket should
accord with technique requirement in the installation bracket
diagram.

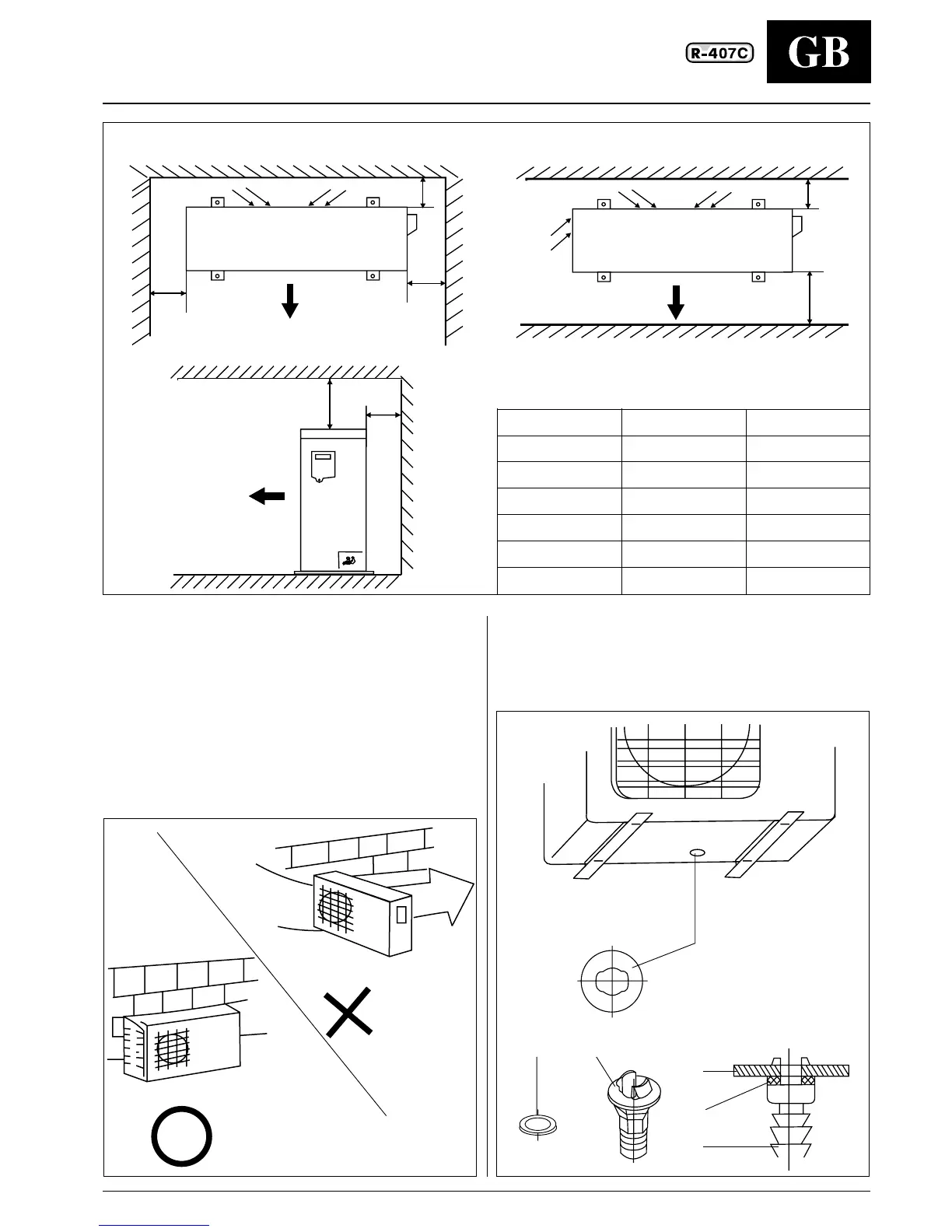

Outdoor unit installation
A
B
C
D
E
A
F
Minimum clearances (mm)
Mod. 38YE009/012 38YE018/022
A mm 100 mm or more 100 mm or more
B mm 100 mm or more 100 mm or more
C mm 600 mm or more 600 mm or more
D mm 100 mm or more 100 mm or more
E mm 1000 mm or more 1000 mm or more
F mm 600 mm or more 600 mm or more
Drain elbow installation
Fit the seal into the drain elbow, then insert the drain elbow
into the base pan hole of outdoor unit, rotate 90
to securely
assemble them. Connecting the drain elbow with an extension
drain hose (Locally purchased), in case of the water draining off
the outdoor unit during the heating mode.
Strong wind
Base pan hole
of outdoor unit
Seal
Drain elbow
To Next Page
