Carrier 50FC A05 Series User Manual

16

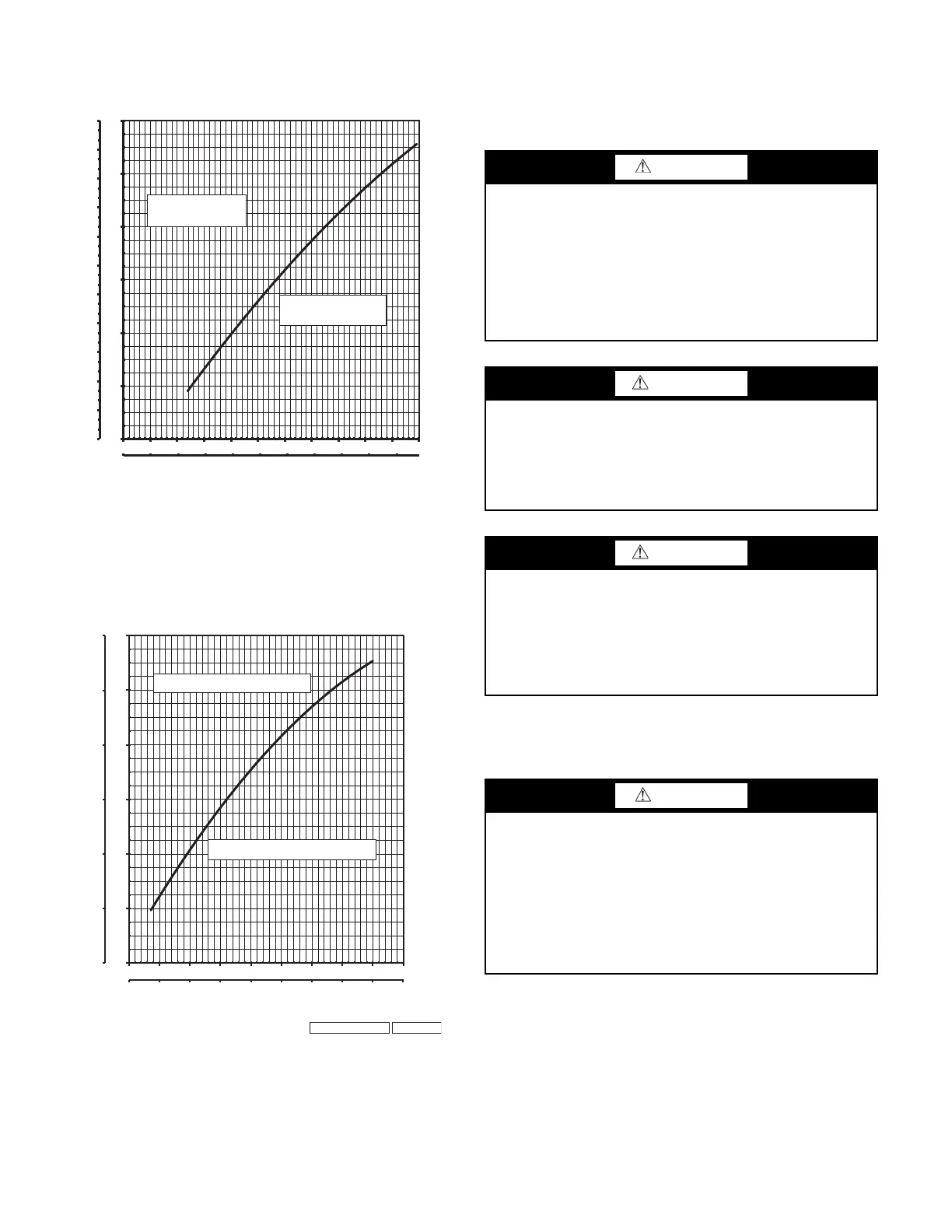

Fig. 27 — Cooling Charging Chart - 6 Ton
Fig. 28 — Cooling Charging Chart - 6 Ton with Hot
Gas Reheat (Humidi-MiZer
®
System) Option
COMPRESSOR
Lubrication
The compressor is charged with the correct amount of oil at the
factory.
Replacing Compressor
NOTE: Only factory-trained service technicians should remove
and replace compressor units.
350 700 1050 1400 1750 2100 2450 2800 3150 3500 3850
-6
0
6
12
18
24
30
36
42
48
54
60
20
40
60
80
100
120
140
50 100 150 200 250 300 350 400 450 500 550 600
Temperature at Liquid Valve (°C / °F)
Compressor Discharge Pressure (PSIG / Kpa)
2-Stage Cooling Charging Chart Std Tier 6 Ton
(Unit must run high stage compressor and
outdoor fan on high speed)
Add Charge if
Above the Curve
Remove Charge if
Below the Curve
48TC003185 REV -
Outdoor Coil Leaving Temperature, [°C/°F]
1034 1379 1723 2068 2413 2758 3102 3447 3792 4136
-6.7
4.4
15.5
26.6
37.7
48.8
59.9
20
40
60
80
100
120
140
150 200 250 300 350 400 450 500 550 600
Compressor Discharge Pressure, [psig/Kpa]
6 Ton Std Tier Hot gas Reheat R-410A CHARGING CHART
(Unit must run on Sub-cooling mode)
Remove Charge if Below the Curve
48TC003192 rev. A
Add Charge if Above the Curve
CAUTION
UNIT DAMAGE HAZARD
Failure to follow this caution may result in damage to com-
ponents.
The compressor is in a Puron
®
refrigerant system and uses
a polyolester (POE) oil. This oil is extremely hygroscopic,
meaning it absorbs water readily. POE oils can absorb 15
times as much water as other oils designed for HCFC and
CFC refrigerants. Avoid exposure of the oil to the atmo-
sphere.
WARNING
FIRE, EXPLOSION HAZARD
Failure to follow this warning could result in death, serious
personal injury and/or property damage.
Never use air or gases containing oxygen for leak testing or
for operating refrigerant compressors. Pressurized mixtures
of air or gases containing oxygen can lead to an explosion.
WARNING
FIRE, EXPLOSION HAZARD
Failure to follow this warning could result in death, serious
personal injury and/or property damage.
Never use non-certified refrigerants in this product. Non-
certified refrigerants could contain contaminates that could
lead to unsafe operating conditions. Use ONLY refrigerants
that conform to AHRI Standard 700.
CAUTION
INSTALLATION SITE DAMAGE
Failure to follow this caution can result in damage to equip-
ment location site.
Puron (R-410A) refrigerant contains polyolester (POE) oil
that can damage the roof membrane. Caution should be tak-
en to prevent POE oil from spilling onto the roof surface.
The factory also recommends that the suction and discharge
lines be cut with a tubing cutter instead of using a torch to
remove brazed fittings.
