Carrier 50FC A05 Series User Manual

69

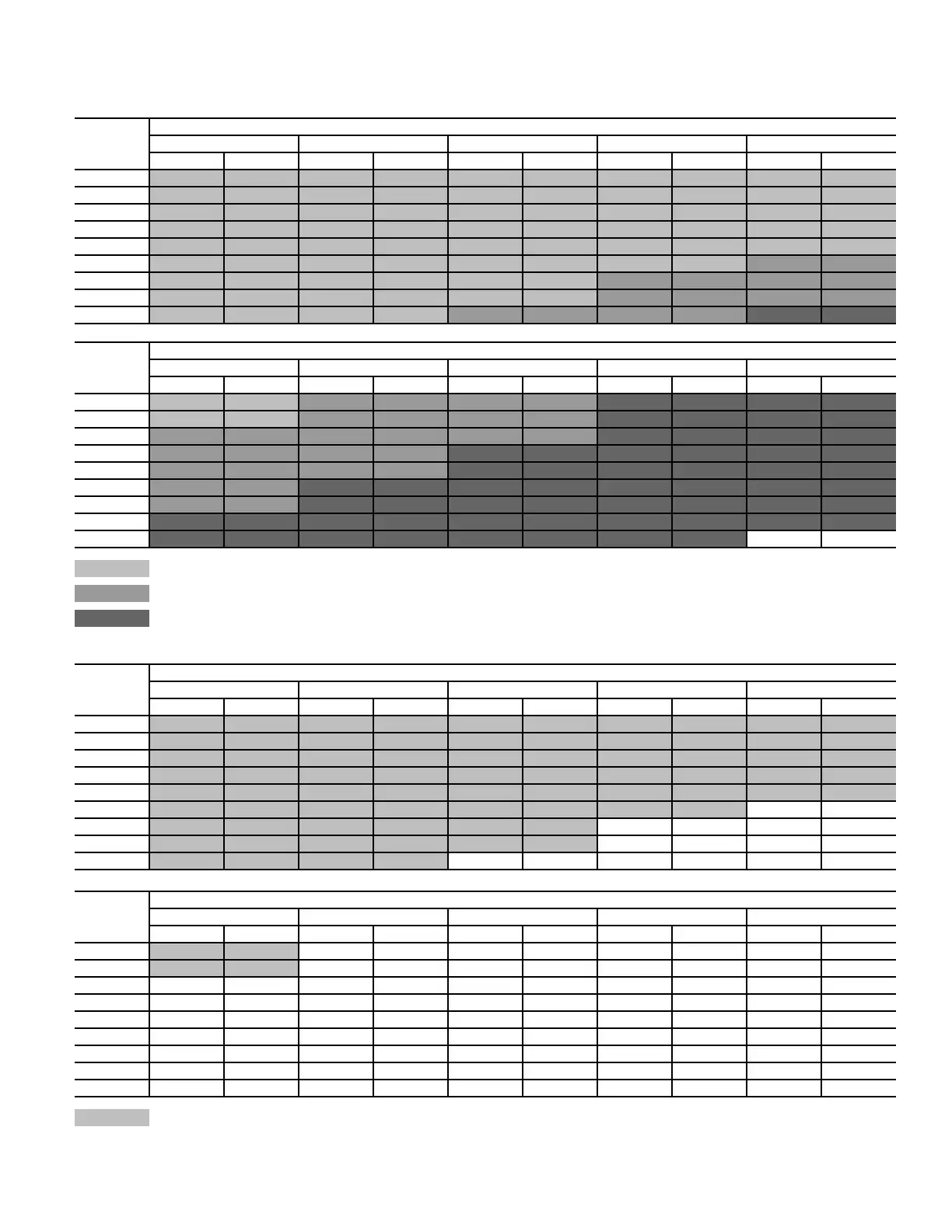

APPENDIX C — FAN PERFORMANCE
50FC-A06 THREE PHASE — 5 TON VERTICAL SUPPLY (RPM - BHP)
CFM
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
0.2 0.4 0.6 0.8 1.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1500
1301 0.24 1477 0.35 1639 0.47 1788 0.62 1925 0.77
1625
1381 0.28 1545 0.40 1700 0.53 1843 0.67 1977 0.83
1750
1463 0.34 1615 0.45 1763 0.59 1902 0.74 2031 0.90
1875
1548 0.40 1688 0.51 1829 0.65 1962 0.81 2088 0.97
2000
1633 0.46 1764 0.59 1897 0.73 2025 0.89 2147 1.06
2125
1720 0.54 1842 0.67 1968 0.81 2090 0.97 2208 1.15
2250
1809 0.63 1922 0.75 2040 0.90 2158 1.07 2271 1.24
2375
1897 0.72 2003 0.85 2115 1.00 2227 1.17 2336 1.35
2500
1987 0.83 2086 0.96 2192 1.12 2299 1.29 2403 1.47
CFM
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1500
2053 0.93 2174 1.11 2289 1.29 2398 1.49 2502 1.69
1625
2102 1.00 2220 1.18 2332 1.36 2439 1.56 2542 1.77
1750
2153 1.07 2268 1.25 2378 1.44 2483 1.64 2584 1.85
1875
2206 1.15 2319 1.33 2426 1.53 2529 1.73 2628 1.94
2000
2262 1.23 2372 1.42 2477 1.62 2578 1.83 2675 2.04
2125
2320 1.33 2427 1.52 2530 1.72 2629 1.93 2724 2.15
2250
2380 1.43 2485 1.63 2585 1.83 2682 2.05 2775 2.27
2375
2443 1.55 2544 1.75 2642 1.96 2737 2.17 2828 2.40
2500
2506 1.67 2605 1.87 2701 2.09 2794 2.31 ——
Standard Static 1301-2150 RPM, 1.06 Max BHP
Medium Static 1301-2390 RPM, 1.44 Max BHP
High Static 1301-2836 RPM, 2.43 Max BHP
50FC-A06 THREE PHASE – STANDARD STATIC — 5 TON VERTICAL SUPPLY (RPM - VDC)
CFM
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
0.2 0.4 0.6 0.8 1.0
RPM Vdc RPM Vdc RPM Vdc RPM Vdc RPM Vdc
1500
1301 6.1 1477 6.9 1639 7.6 1788 8.3 1925 9.0
1625
1381 6.4 1545 7.2 1700 7.9 1843 8.6 1977 9.2
1750
1463 6.8 1615 7.5 1763 8.2 1902 8.8 2031 9.4
1875
1548 7.2 1688 7.9 1829 8.5 1962 9.1 2088 9.7
2000
1633 7.6 1764 8.2 1897 8.8 2025 9.4 2147 10.0
2125
1720 8.0 1842 8.6 1968 9.2 2090 9.7 — —
2250
1809 8.4 1922 8.9 2040 9.5 — — — —
2375
1897 8.8 2003 9.3 2115 9.8 — — — —
2500
1987 9.2 2086 9.7——————
CFM
AVAILABLE EXTERNAL STATIC PRESSURE (in. wg)
1.2 1.4 1.6 1.8 2.0
RPM Vdc RPM Vdc RPM Vdc RPM Vdc RPM Vdc
1500
2053 9.5————————
1625
2102 9.8————————
1750 ——————————
1875 ——————————
2000 ——————————
2125 ——————————
2250 ——————————
2375 ——————————
2500 ——————————
Standard Static 1301-2150 RPM
