26
7
See notes 1, 2, 3, 4, 12, 13, 14, 15, and 17
on the page following these figures
A03182

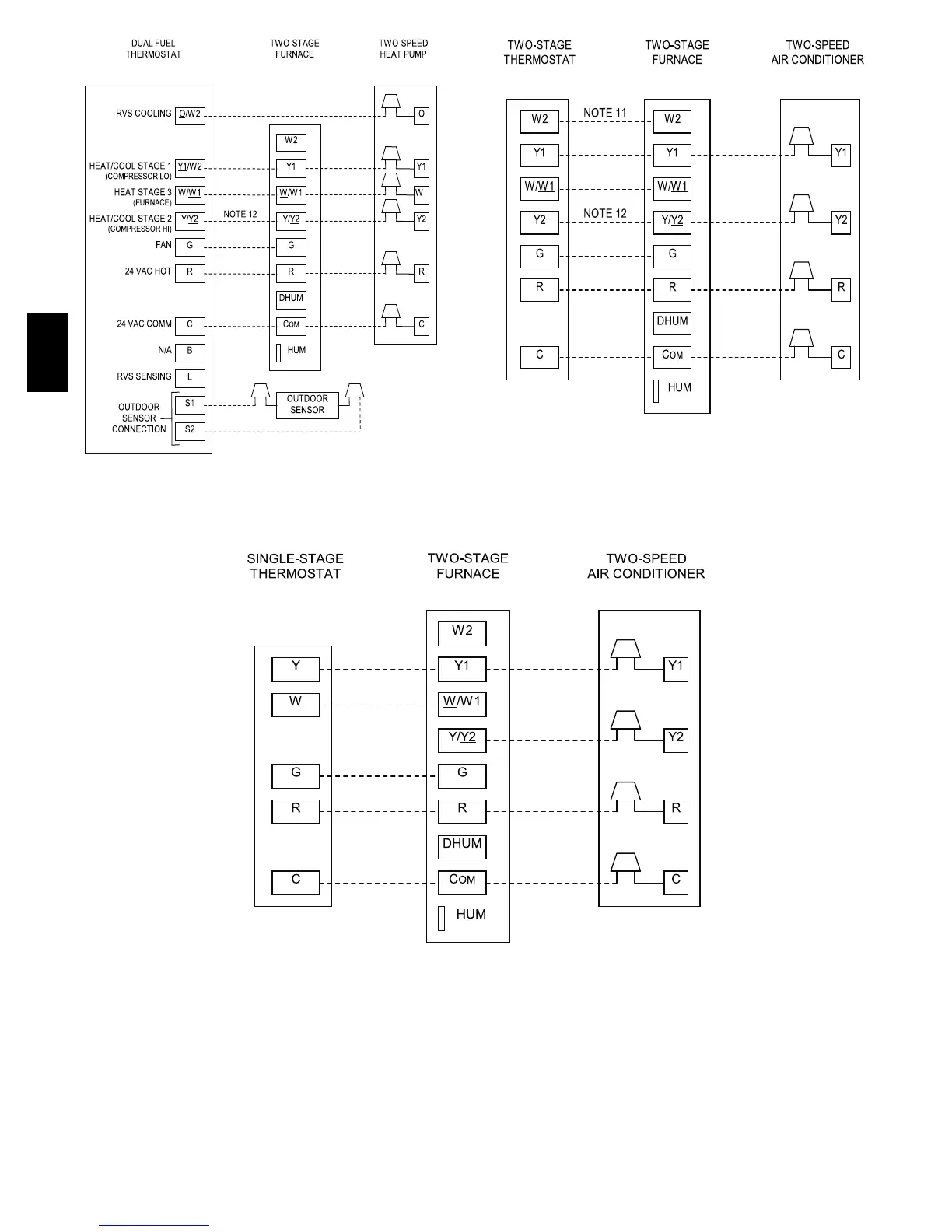

Fig. 32 -- Dual--Fuel Thermostat with Two--Stage Furnace
and Two--Speed Heat Pump
See notes 2, 11, and 12 on the
page following these figures
A03183
Fig. 33 -- Two--Stage Thermostat with Two--Stage Furnace
and Two--Speed Air Conditioner
See notes 1 and 2 on the page
following these figures
A03184
Fig. 34 -- Single--Stage Thermostat with Two--Stage Furnace and Two--Speed Air Conditioner
