Carrier 60 - Page 23

LEGEND
A—Alarm C—Contactor, Compressor COM — Common EQUIP — Equipment GND — Ground NC — Normally Closed NO — Normally Open R—Relay TB — Terminal Block TOR — Torroid,Accessory Ground Fault
Interrupt
Field Wiring Factory Wiring
NOTE: Factory wiring is in accordance with the National Electrical Code (U.S.A.). Any field modifications or additions must be in com- pliance with all applicable codes. Field installed power wires must be rated 75° C minimum.

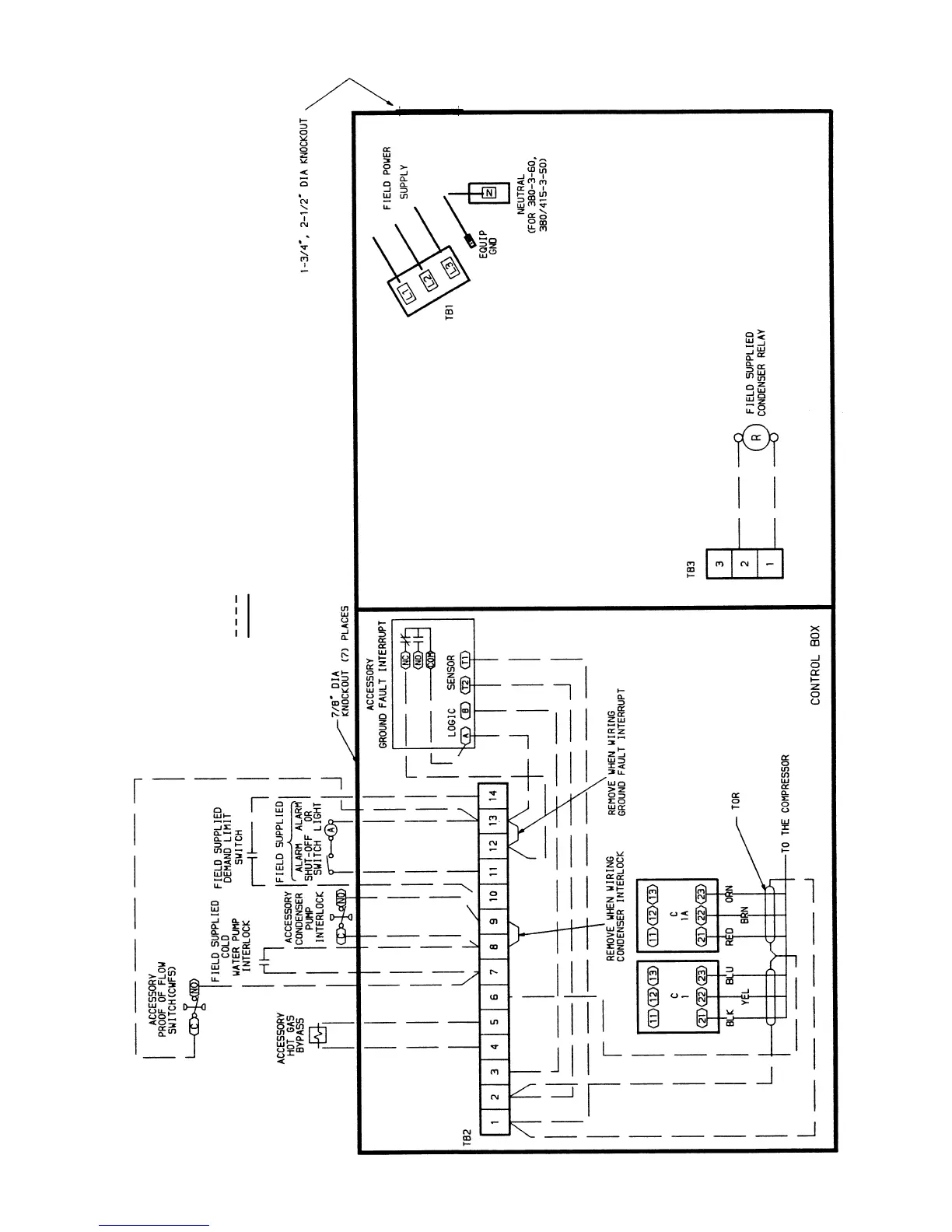

Fig. 18 — Field Wiring Diagram; 30HW Units
23
