ZONE SETPOINTS

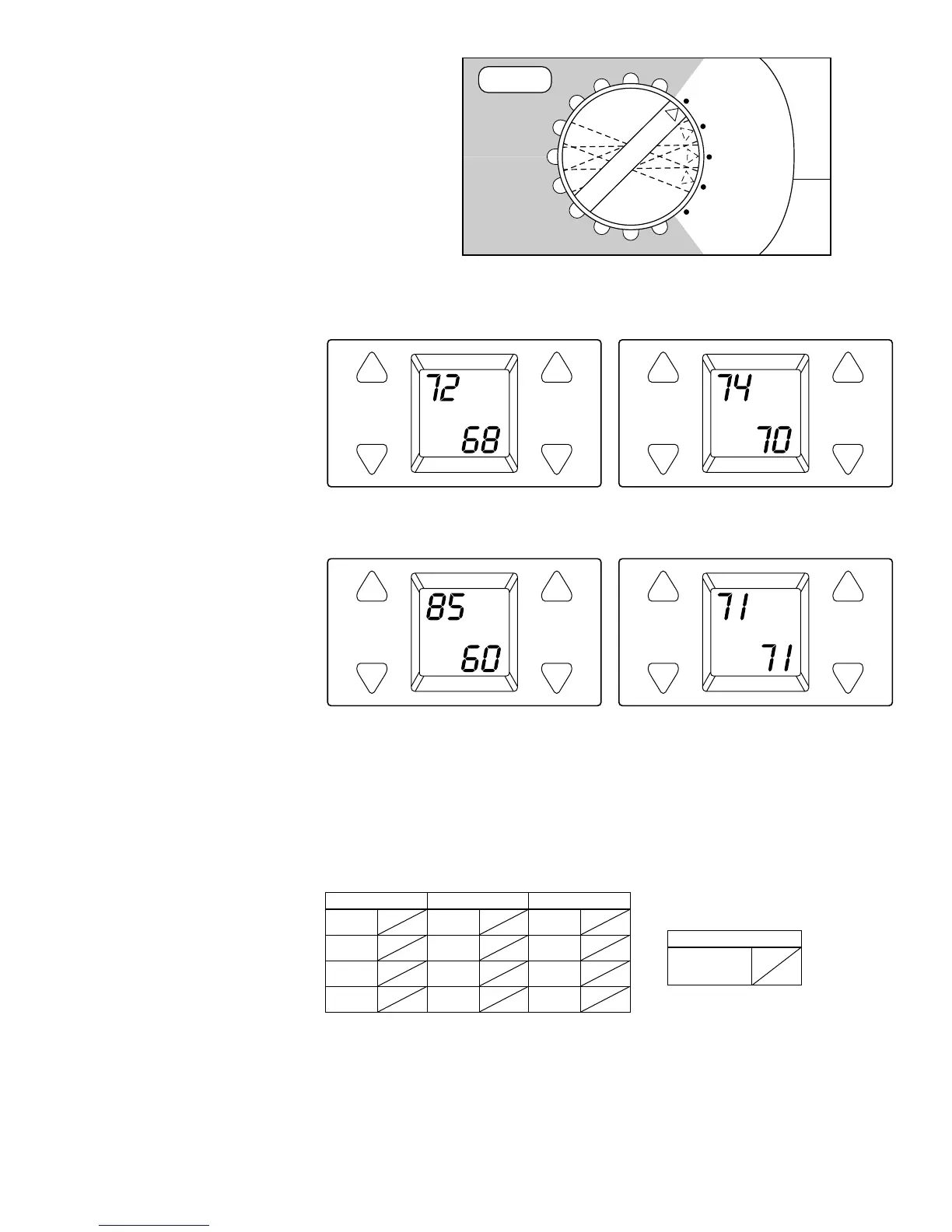

To view the setpoints for each zone, turn the Zone
Selector Dial to the ZONE No. you wish to view.
The setpoints for the selected zone will be
displayed in the controller display.
A95561
Example Setpoints
Sat., Start Time - 7:00 AM
ZONE 1 - Family and Living Rooms
ZONE 2 - Kitchen and Laundry
ZONE 3 - Bedrooms
ZONE 4 - Home Office
A95562
______________________________________________
PROGRAM SCHEDULES
Each zone has 3 different weekly periods (Weekdays, Saturday and Sunday), and up to 4 different
possible combinations of heating and cooling setpoints that can be programmed to provide
automatic climate control depending upon the day of the week and the time of the day. Each zone can
be programmed independently.
Example
Weekly Schedule
- Zone 1, Family and
Living Rooms
A95563
A chart similar to the 1 in the example above has been provided in the back of this manual to assist you in
programming. Complete the chart for Zones, Week Periods, Start Times, and Setpoints, then use the chart to
program the controller.
NOTE:
If no program schedules are desired for a particular zone, leave all times and temperatures in the factory
default position. (i.e. Weekdays, Saturday, Sunday — 8:00 a.m. — 75/68)
