Wiring the Carrier® Connect™ Wi-Fi Thermostat
Carrier Connect™
Wi-Fi Thermostat Carrier Proprietary and Confidential CARRIER CORPORATION ©2017
Installation Guide 8 All rights reserved

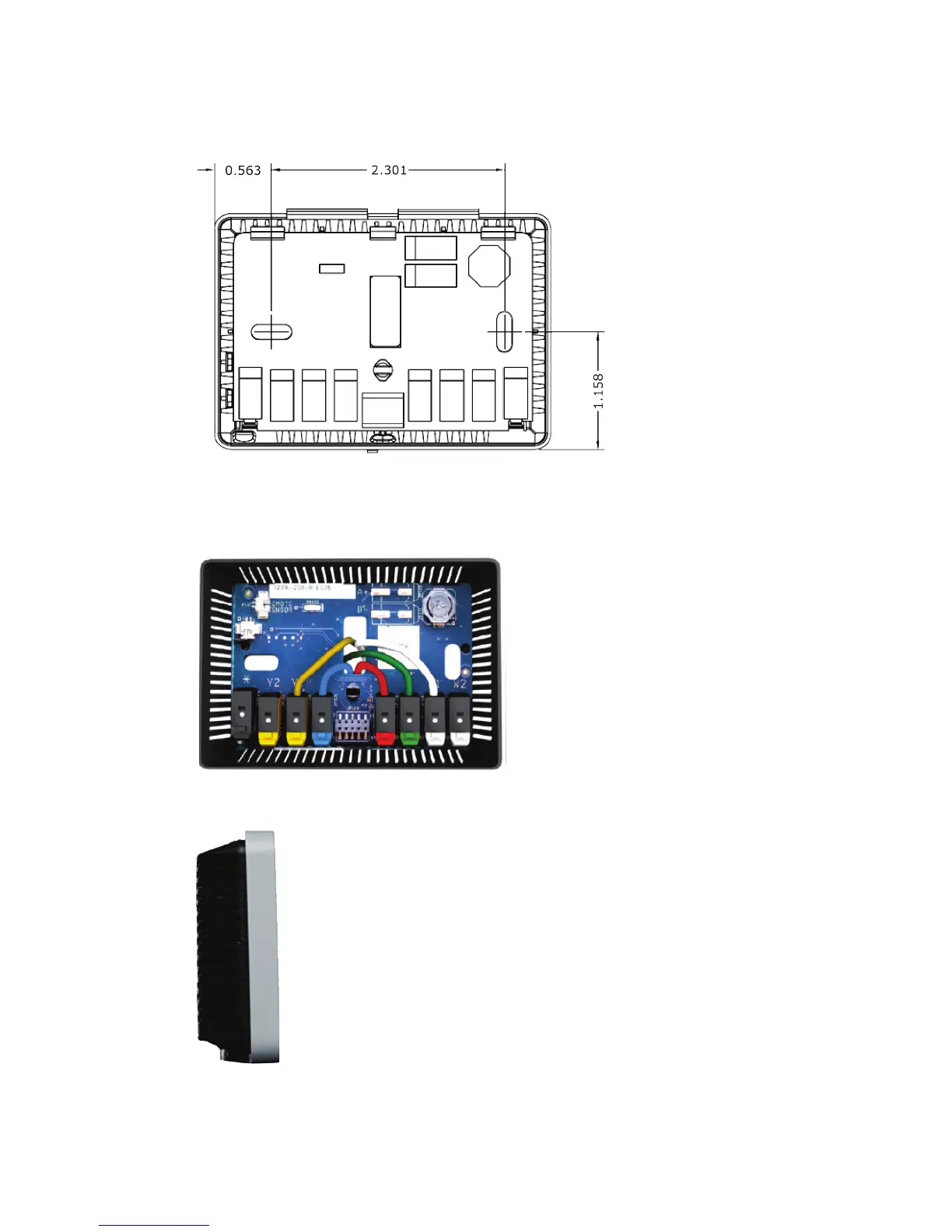

5 Attach the base to the wall with the provided screws.
6 Straighten the wires and match your wire configuration to the terminals on the base.
7 Connect each wire individually by pushing down on the color-coded quick connect tab, inserting it into the
connector opening, and then releasing the tab.
8 Attach the thermostat face by aligning it with the hinge guide on top of the back.
