Wiring
the Carrier® Connect™ Wi
-Fi Thermostat
Carrier Connect™
Wi-Fi Thermostat Carrier Proprietary and Confidential CARRIER CORPORATION ©2017
Installation Guide 7 All rights reserved

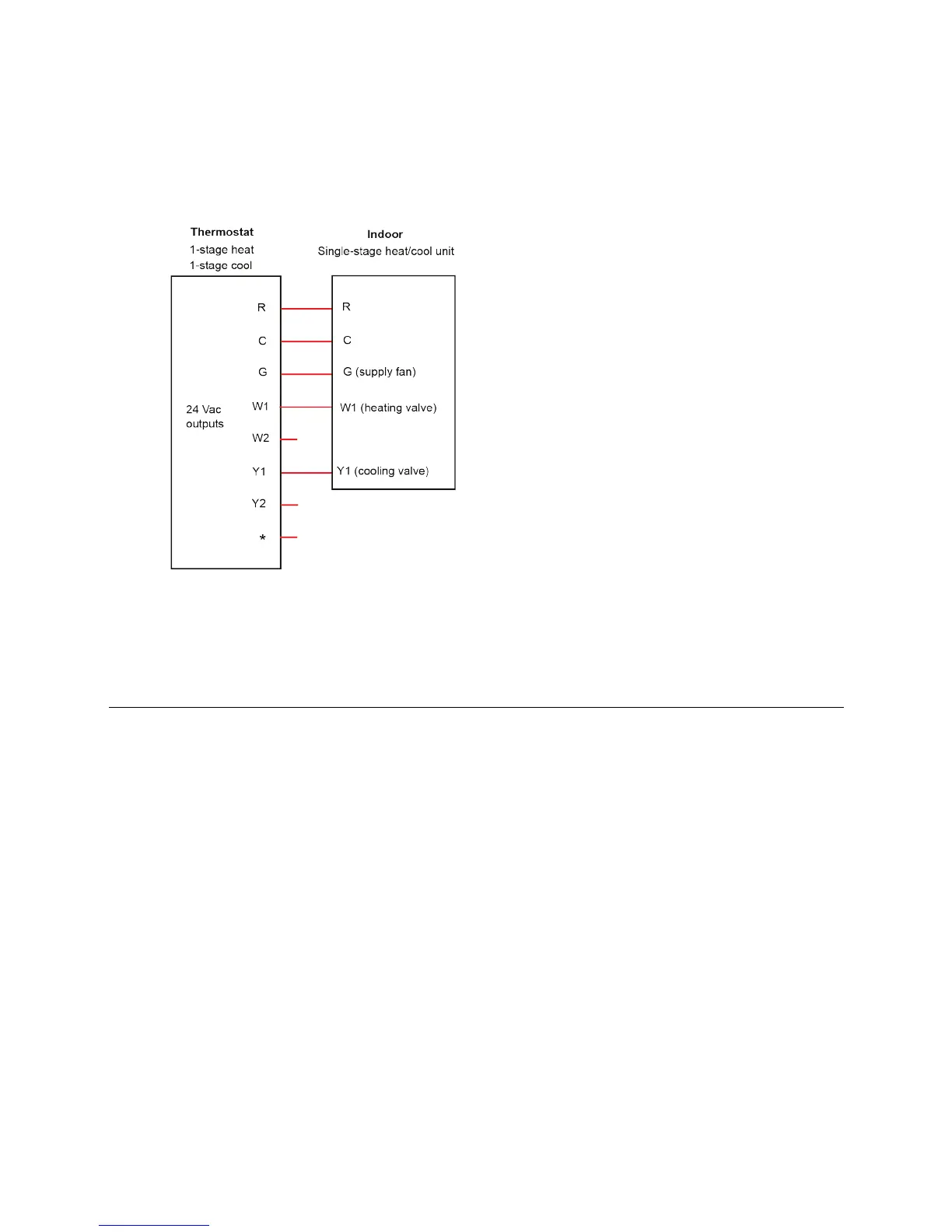

Hydronic Fan Coil
To wire and mount the thermostat
1 Turn off 24 Vac power at the equipment circuit breaker or the system switch.
2 Place the thermostat base against your wall to mark drill holes.
NOTE To cover a horizontal 2" x 4" electrical box, install accessory wallplate.
3 Drill the anchor holes or use existing holes to mount the wallplate.
○ Drywall — Drill 3/16” hole for the anchor.
○ Plaster — Drill 7/32” hole for the anchor.
4 Pull wires through opening in base.
To Next Page
