Air Purifier Sizes 1620, 1625, 2020, 2025, 2420: Installation Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
13
A11334

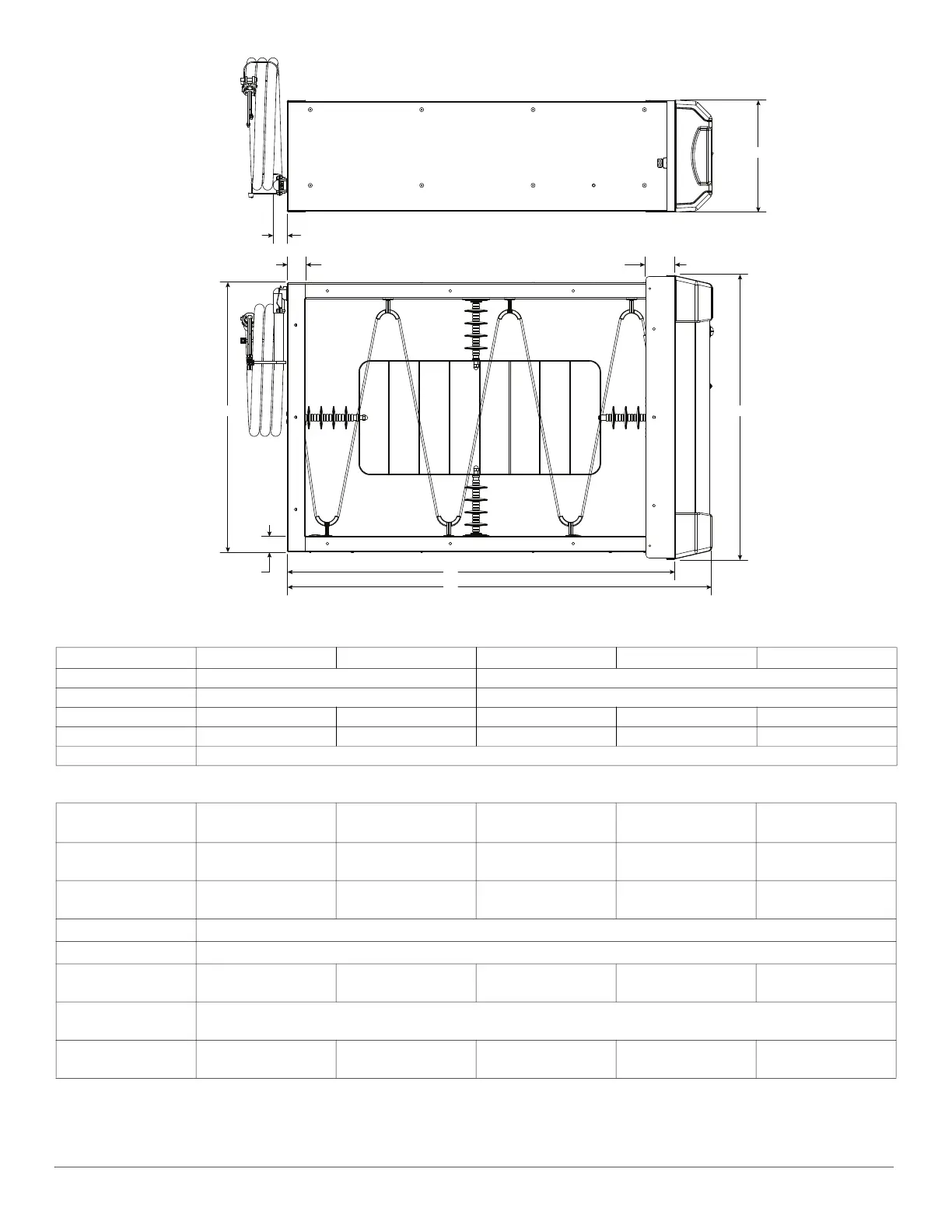

Fig. 20 – Dimensions
UNIT 1625 2025 1620 2020 2420
A 27.68” / 703.0 mm 24.68” / 626.8 mm
B 25.28” / 642.1 mm 22.28” / 565.9 mm
C 17.49” / 444.2 mm 21.19” / 538.2 mm 17.49” / 444.2 mm 21.19” / 538.2 mm 24.69” / 627.1 mm
D 18.48” / 469.3 mm 22.18” / 563.3 mm 18.48” / 469.3 mm 22.18” / 563.3 mm 25.68” / 652.2 mm
E 7.25” / 184.2 mm
Table 5 – Replacement Filters, Replacement Component Kits, and Accessories
Air Purifier Model
DGAPAXX
1625 2025 1620 2020 2420
Filter Enhancement
Module (FEM)
KIT140000 KIT141000 KIT142000 KIT143000 KIT144000
Front Door including
Power Supply
KIT156000 KIT157000 KIT156000 KIT157000 KIT158000
Flow Sensor KIT160000 (Included as standard with Models DGAPAXX1620, DGAPAXX2020, and DGAPAXX2420)
Flow Sensor Bypass KIT161000 (Included as standard with Models DGAPAXX1625 and DGAPAXX2025)
Front Screen
Accessory
KIT170000 KIT171000 KIT172000 KIT173000 KIT174000
Service Quick Kit
344872-751
(Included as standard with Models DGAPAXX1620, DGAPAXX2020, and DGAPAXX2420)
Replacement filter
Cartridge (2-Pack)
PGAPXCAR1625-A02 PGAPXCAR2025-A02 PGAPXCAR1620-A02 PGAPXCAR2020-A02 PGAPXCAR2420-A02
2X 1.02 / 25.88
C
1.19 / 30.33
0.91 / 22.99
1.94 / 49.23
E
D
A
B
