3
UNIT
FIELD
SUPPLIED
HANGING
STRAPS
LOW VOLT
ENTRY
OPTIONS
POWER
ENTRY OPTIONS
SECONDARY
DRAIN
002-005 21" (533 mm)
006 24" (610 mm)
FRONT SERVICE
CLEARANCE
(Full face of unit)
SECONDARY
DRAIN
A-COIL
HORIZONTAL LEFT
PRIMARY
DRAIN
PRIMARY
DRAIN
1
3
/4" (44 mm)
FILTER ACCESS
CLEARANCE
A09323

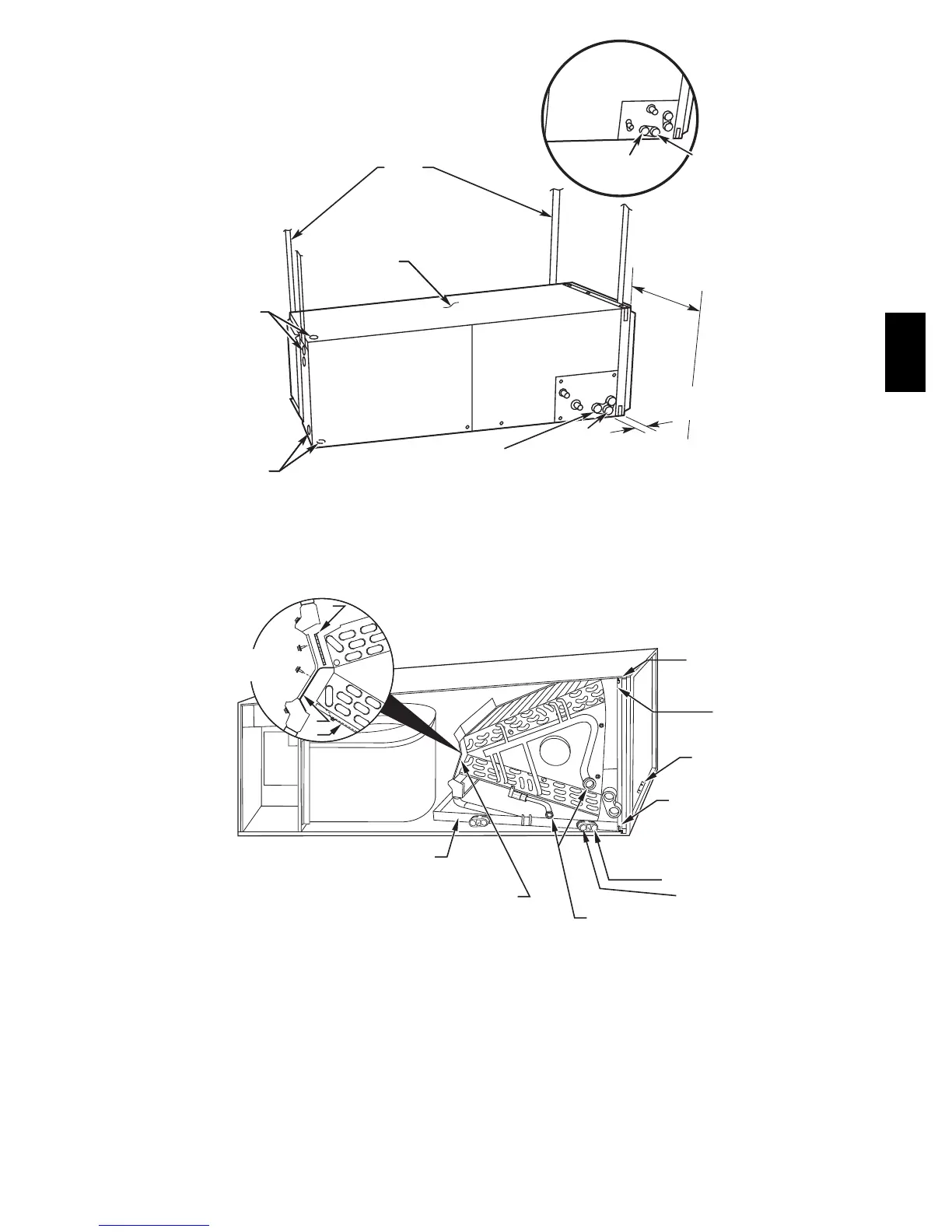

Fig. 3 -- Slope Coil in Horizontal--Left Application (Factory Ready)
A
B
C
FA CT OR Y SHIPPED
HORIZONTAL LEFT
APPLICATION
AIR SEAL
ASSEMBLY
HORIZONTAL
DRAIN PAN
REFRIGERANT
CONNECTIONS
SECONDARY DRAIN
HORIZONTAL LEFT
PRIMARY DRAIN
HORIZONTAL LEFT
COI L
SUPPORT
RAIL
COIL
BRACKET
DRAIN PA N
SUPPORT
BRACKET
COIL
BRACKET
A00072
Fig. 4 -- A--Coil in Horizontal--Left Application (Factory Ready)
FV4C
