24VNA6 / 25VNA4: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
16

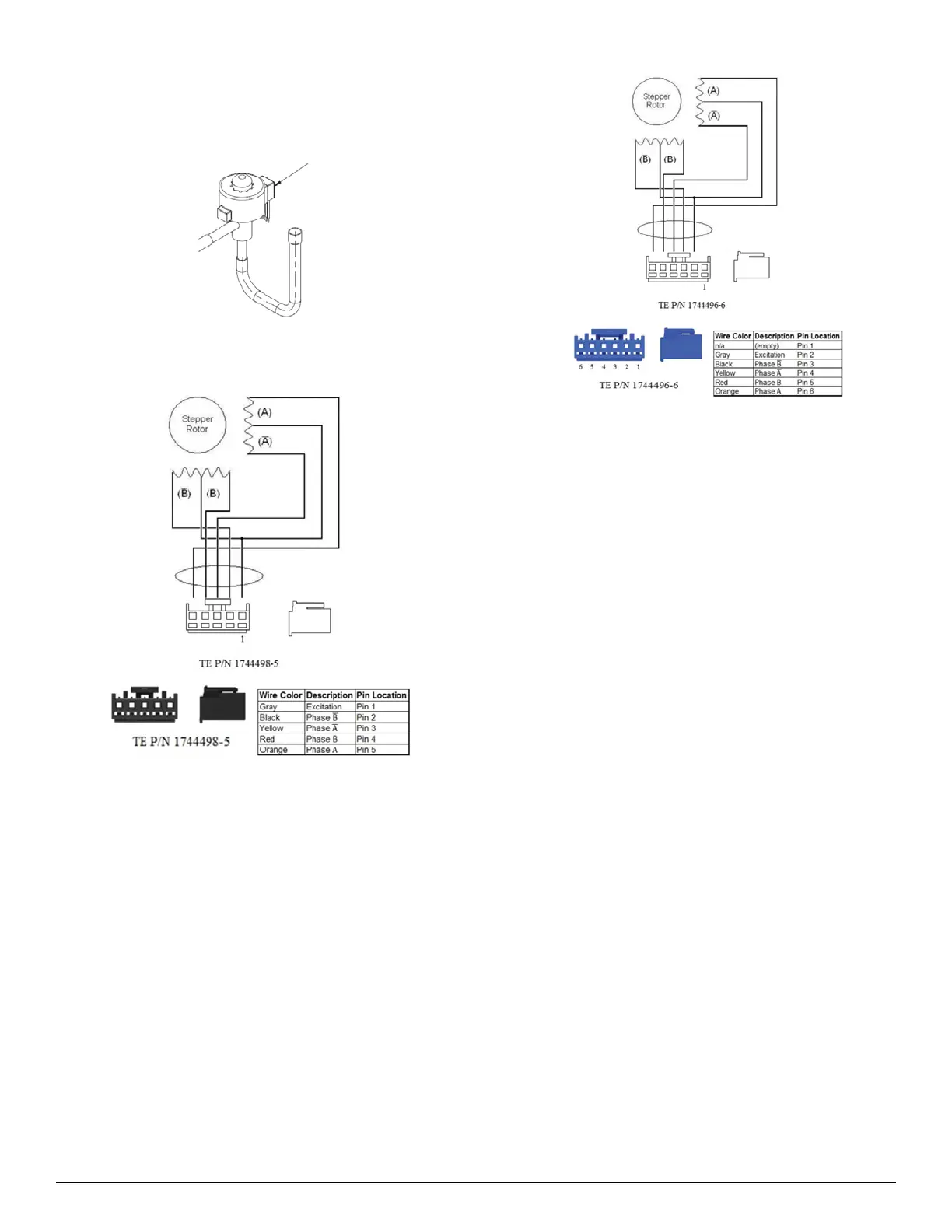

Electronic Expansion Valves (EXV, Fig. 16)
While the EXV-H and EXV-VI valve bodies are different for different
models, the stator for all valves have the same electrical properties. The
EXV coil resistance should fall between 43 and 49 ohms when measured
from common to remaining terminals. See Fig. 17 and Fig. 18.
A200182
Fig. 16 – Electronic Expansion Valve (EXV)
A200215
Fig. 17 – 25VNA4 EXV 5-wire Harness
Heating EXV
A200216
Fig. 18 – 24VNA660 / 25VNA460 EXV 6-wire Harness
Vapor I n j ec tion EXV
