49
[1090.6] 42-15/16
[328.6]
12-15/16
[1122.4]
44-1/8
DRAIN OUTLET
3/4" [19.1] N.P.T
X 7/8" [22.2] DEEP
[1224.0]
48-3/16
[1193.8]
47
"A"
[376.2]
14-13/16
[235.9]
9-1/4
[87.3] 3-7/16
[122.2] 4-13/16
[4.8]
3/16
[50.8]
2
[87.3] 3-7/16
[344.5] 13-9/16
[354.0]
13-15/16
"X"
"Z"
[403.2]
15-7/8
[168.3]
6-5/8
[352.4]
13-7/8
[346.1]
13-5/8
[352.4]
13-7/8
15-15/16
[404.8]
[354.0]
13-15/16
1-3/4" [44.5] DIA. K.O.
POWER SUPPLY
[87.3] 3-7/16
7/8" [22.2] DIA. HOLE CONTROL ENTRY
[42.8]
1-11/16
[93.7] 3-11/16
[612.7]
24-1/8
[465.1] 18-5/16
[417.5] 16-7/16
7-5/16
[185.7]
"Y"
21-7/8
[555.6]
[142.9]
5-5/8
[700.0]
27-1/2
[69.9] 2-3/4
-
50VT500270
CENTER OF GRAVITY IN/MMUNIT HEIGHT IN/MM
UNIT WT.
ELECTRICAL
CHARACTERISTICS
UNIT
ZYX"A"
KGLB
431.817477.518-13/16482.6191137.044-3/4205.9454
208/230-3-60
50VT-A36---51
431.817475.018-11/16482.6191137.044-3/4212.3468460-3-6050VT-A36---61
434.317-1/8475.018-11/16485.119-1/81238.048-3/4226.8500
208/230-3-60
50VT-A42---51
434.317-1/8472.418-5/8485.119-1/81238.048-3/4232.2512460-3-6050VT-A42---61
434.317-1/8475.018-11/16485.119-1/81238.048-3/4221.4488208/230-3-6050VT-A48---51
434.317-1/8475.018-11/16485.119-1/81238.048-3/4227.7502460-3-6050VT-A48---61
449.617-11/16472.418-5/8487.719-3/161391.054-3/4245.9542
208/230-3-60
50VT-A60---51
449.617-11/16469.918-1/2487.719-3/161391.054-3/4252.2556460-3-6050VT-A60---61
UNIT VOLTAGE
CORNER WEIGHTS LB/KG
"1" "2" "3" "4"
50VT-A36---51
208/230 90.8 41.2 72.6 32.9 109.0 49.4 181.6 82.4
50VT-A36---61
460 90.8 41.2 72.6 32.9 118.0 53.5 186.6 84.6
50VT-A42---51
208/230 100.0 45.4
80.0 36.3 120.0 54.4 200.0 90.7
50VT-A42---61
460 100.0 45.4
80.0 36.3 129.0 58.5 205.0 93.0
50VT-A48---51
208/230 97.6 44.3
78.1 35.4 117.1 53.1 195.2 88.5
50VT-A48---61
460 97.6 44.3
78.1 35.4 126.1 57.2 200.2 90.8
50VT-A60---51
208/230 108.4 49.2
86.7 39.3 130.1 59.0 216.8 98.3
50VT-A60---61
460 108.4 49.2
86.7 39.3 139.1 63.1 221.8 100.6
2
1
4
3
REV
LOUVER PANEL
LOUVER PANEL
LOUVER PANEL
FILTER ACCESS
LOUVER PANEL
TOP OF UNIT...............................................14 [355.6] DUCT SIDE OF UNIT......................................... 2 [50.8] SIDE OPPOSITE DUCTS.......................................14 [355.6] BOTTOM OF UNIT.............................................0 [0.0] ELECTRICAL PANEL..........................................36 [914.4] BETWEEN UNITS, POWER ENTRY SIDE..........................42 [1066.8] UNIT AND UNGROUNDED SURFACES, POWER ENTRY SIDE...........36 [914.0] UNIT AND BLOCK OR CONCRETE WALLS AND OTHER GROUNDED SURFACES, POWER ENTRY SIDE......................42 [1066.8] POWER ENTRY SIDE.........................................42 [1066.8] (EXCEPT FOR NEC REQUIREMENTS) UNIT TOP.................................................48 [1219.2] SIDE OPPOSITE DUCTS......................................36 [914.0] DUCT PANEL...............................................12 [304.8]* ECONOMIZER HOOD SIDE.....................................55 [1397.0]** *MINIMUM DISTANCES:IF UNIT IS PLACED LESS THAN 12 [304.8] FROM WALL SYSTEM,THEN SYSTEM PERFORMANCE MAYBE COMPROMISED. **CLEARANCE DISTANCE TO BE MEASURED FROM LEFT SIDE OF UNIT. DIMENSIONS IN [] ARE IN MM
OPTIONAL RETURN AIR OPENING
OPTIONAL SUPPLY AIR OPENING
RETURN
SUPPLY
OUTDOOR COIL
INDOOR COIL
OUTDOOR COIL
CG
TOP VIEW
CG
FRONT VIEW
COMPRESSOR PANEL
BLOWER PANEL
ELECTRICAL ACCESS PANEL
RIGHT SIDE VIEW
LEFT SIDE VIEW
SUPPLY DUCT OPENING
RETURN DUCT OPENING
REAR VIEW
REQUIRED CLEARANCES TO COMBUSTIBLE MATL
NEC. REQUIRED CLEARANCES REQUIRED CLEARANCE FOR OPERATION AND SERVICING
A10213

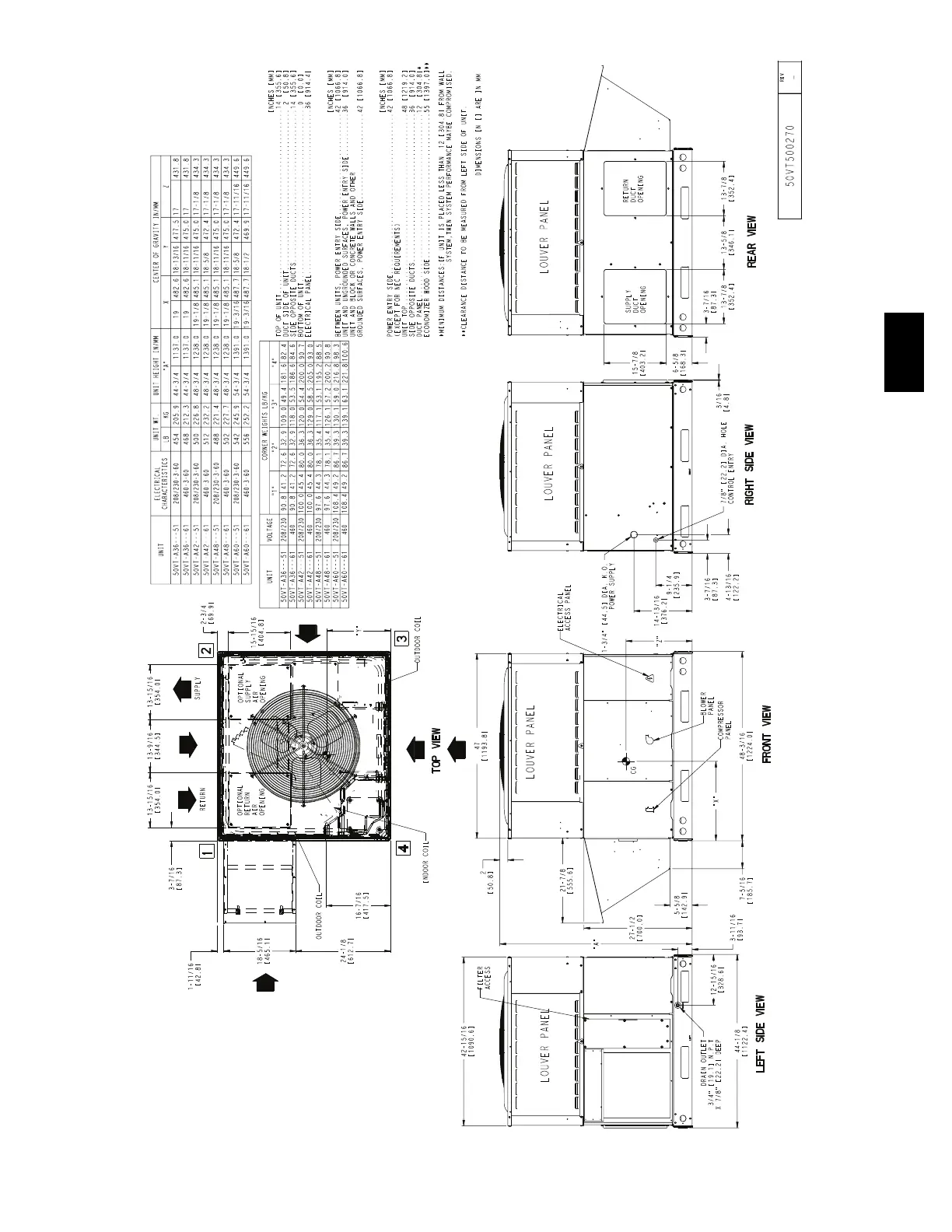

Fig. 49 -- 50VT --A 36--60 3 Phase with Economizer
50VT--A
