PG92MSA: Installation, Start-up, Operating and Service and Maintenance Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
3
A210796

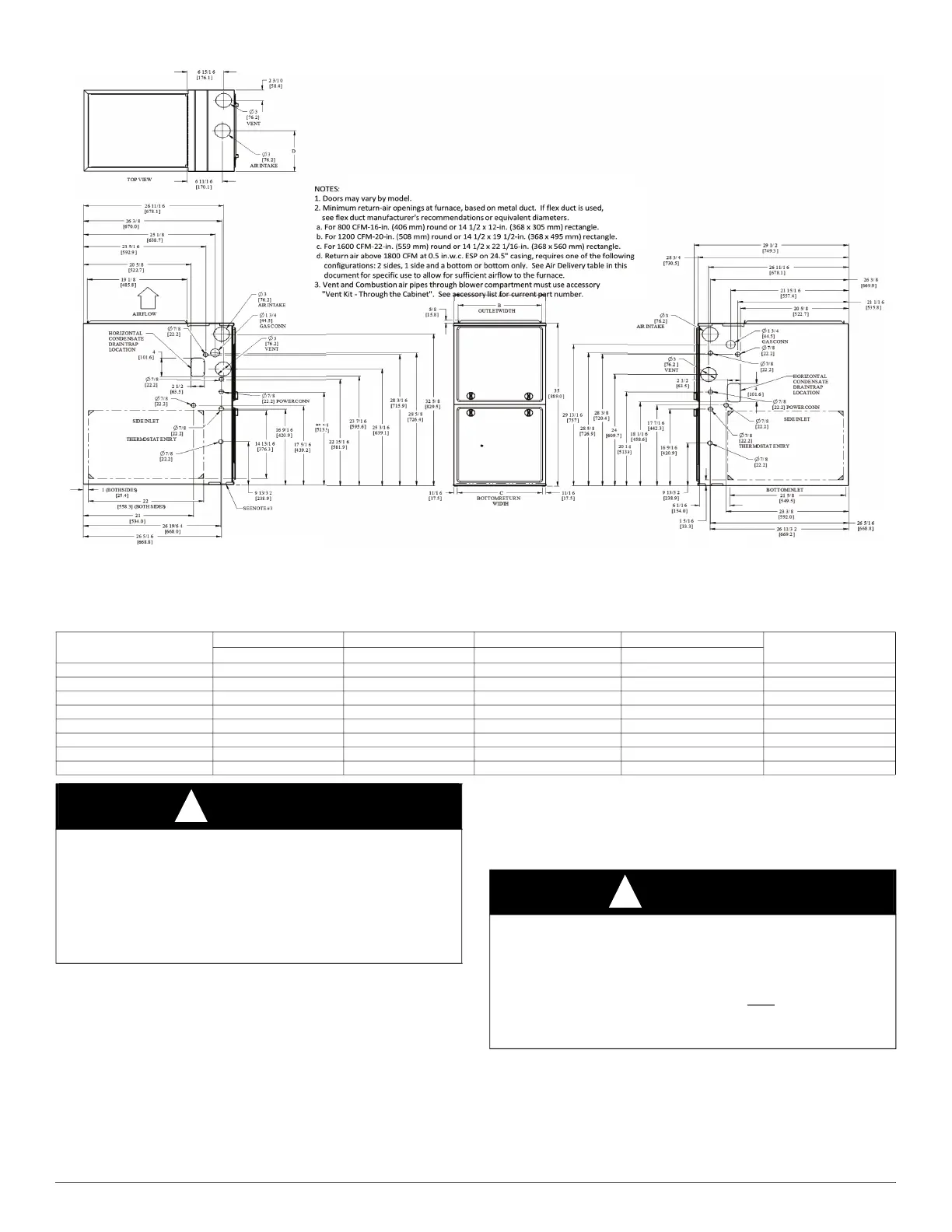

Fig. 1 – Dimensional Drawing
Most states in the USA and jurisdictions in Canada have laws that
require the use of Carbon Monoxide (CO) alarms with fuel burning
products. Examples of fuel burning products are furnaces, boilers, space
heaters, generators, water heaters, stoves/ranges, clothes dryers,
fireplaces, incinerators, automobiles, and other internal combustion
engines. Even if there are no laws in your jurisdiction requiring a CO
Alarm, it’s highly recommended that whenever any fuel burning product
is used in or around the home or business that the dwelling be equipped
with a CO Alarm(s). The Consumer Product Safety Commission
recommends the use of CO Alarm(s). The CO Alarm(s) must be
installed, operated, and maintained according to the CO Alarm
manufacturer’s instructions. For more information about Carbon
Monoxide, local laws, or to purchase a CO Alarm online, please visit the
following website. https://www.kidde.com.
SAFETY CONSIDERATIONS
Table 1 – Dimensions
FURNACE SIZE
A B C D SHIP WT.
LB (KG) CABINET WIDTH OUTLET WIDTH BOTTOM INLET WIDTH AIR INTAKE
36040A 14-3/16 (361) 12-1/2 (319) 12-9/16 (322) 7-1/8 (181) 122 (55)
36040B 17-1/2 (445) 15-7/8 (403) 16 (406) 8-3/4 (222) 123 (56)
36060A 14-3/16 (361) 12-1/2 (319) 12-9/16 (322) 7-1/8 (181) 128 (58)
42060B 17-1/2 (445) 15-7/8 (403) 16 (406) 8-3/4 (222) 136 (62)
48080B 17-1/2 (445) 15-7/8 (403) 16 (406) 8-3/4 (222) 144 (65)
60080C 21 (533) 19-3/8 (492) 19-1/2 (495) 10-1/2 (267) 153 (69)
60100C 21 (533) 19-3/8 (492) 19-1/2 (495) 10-1/2 (267) 160 (73)
60120D 24-1/2 (622) 22-7/8 (581) 23 (584) 12-1/4 (311) 180 (82)
NOTE: ALL DIMENSIONS IN INCH (MM)
WARNING
!
CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal injury and/or
death.
Carbon Monoxide (CO) is a colorless, odorless, and tasteless poisonous
gas that can be fatal when inhaled. Follow all installation, maintenance,
and service instructions. See additional information below regarding
the installation of a CO Alarm.
WARNING
!
FIRE, INJURY, OR DEATH HAZARD
Failure to follow this warning could result in property damage, personal
injury, or death.
This furnace was manufactured to operate with natural gas. When fuel
supply is Liquid Propane (LP), this furnace must
be converted with a
factory approved LP conversion kit. See furnace rating plate for
approved conversion kit.
