C. Passengers
The vehicle allows for two riders only. Combined
maximum weight of driver and the passenger should
not exceed 180kg or 400lbs.

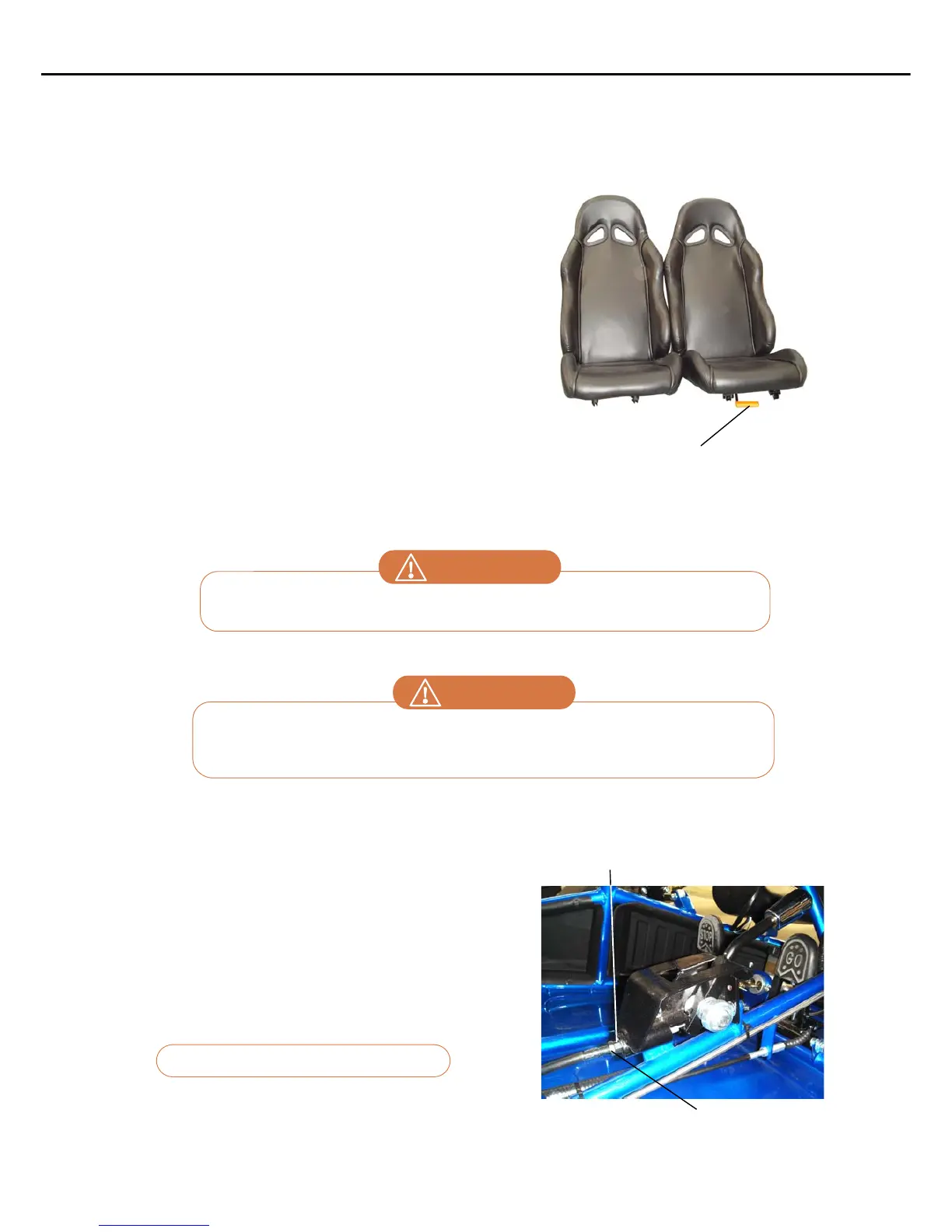

D. Seat Adjustment
The seat must always be securely fastened in the
position which best affords the operator control of
the foot pedals, steering wheel, and the remote
stop button.
a. Pull seat adjustment handle upward to disengage
seat slide.
b. Move seat to desired position.
c. Be sure seat adjustment handle snaps back into
place and that seat is locked into position.
Before attempting to adjust the seat, ensure that NDUW engine is stopped.
Never operate this buggy when the provided seat is not securely fastened, to
do so could result in a strong possibility of severe personal injury or loss of life.
Before attempting to adjust the seat, ensure the NDUW engine is stopped.
OPERATION
E. Parking Brake Adjustment
a. Push forward the brake lever so that the unit can roll
freely. Pull back the lever to engage the parking brake.
b. When brake lever is in forward position, there
needs to be 1/2” of freeplay. If the adjustment
is not correct, loosen lock nut #2, then adjust
lock nut #1 to the proper amount of freeplay.
Always stop the NDUW before changing gears.
SEAT ADJUSTMENT HANDLE
ADJUSTING NUT #1,
REVERSE CABLE
ADJUSTING NUT #2,
REVERSE CABLE
22
WARNING
WARNING
