Carter INTERCEPTOR GTR 250 - Balance Shaft

1
2
3
4
5
6
7
8
9
10
1
1
1
1
1
4
1
1
1
1
REF. QTY DESCRIPTION
PART NO.

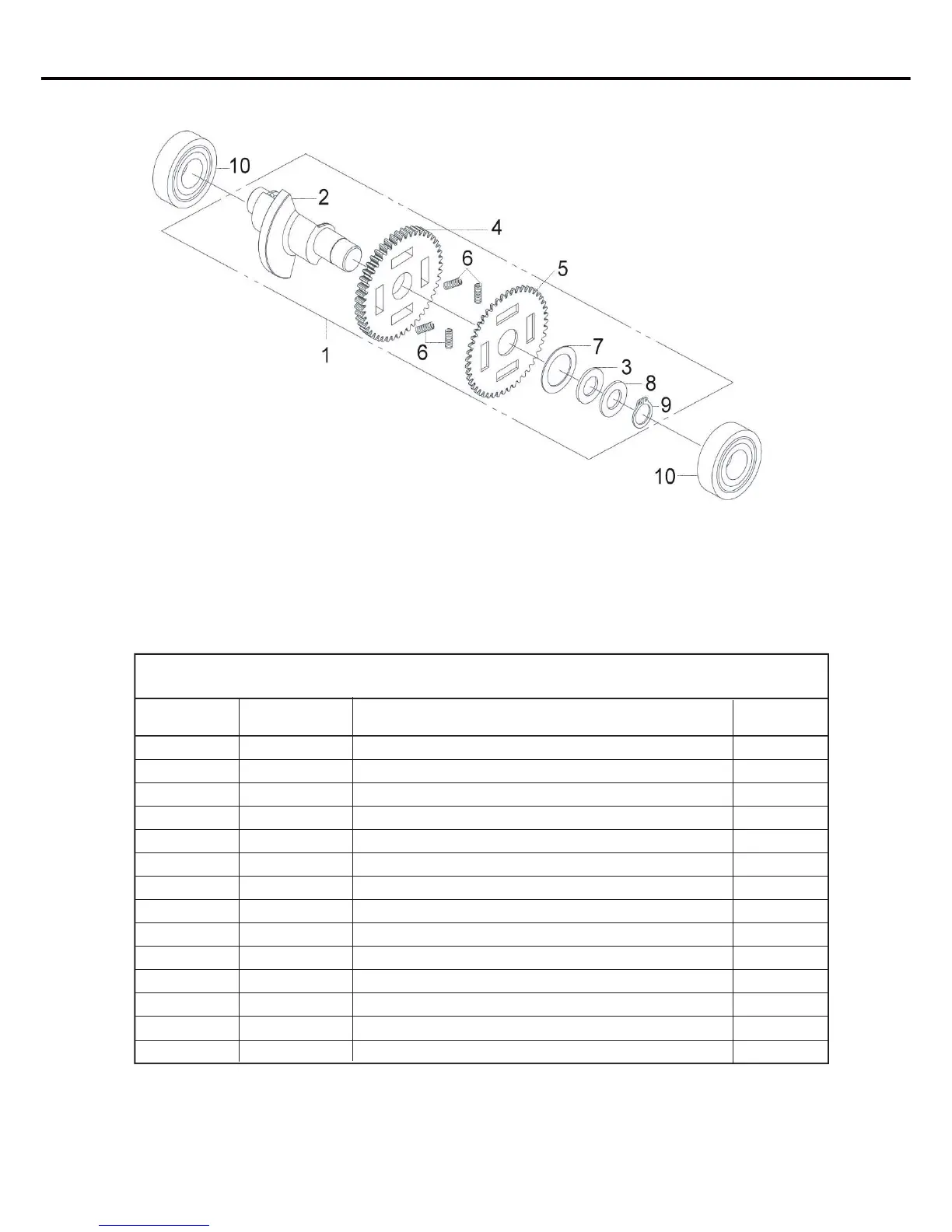

Fig.11 BALANCE SHAFT
8213-3069
8213-3070
8200-3511
8213-3071
8213-3072
8257-3015
8200-3505
8200-3504
8200-3802
8222-3016
Balance Shaft Comp
Balance Shaft
Wave Washer 28.3x36x1
Balance Shaft Drive Gear A
Balance Shaft Drive Gear B
Balance Shaft Drive Gear Spring
Washer 28.3x47.5x1.4
Washer 28.3x36x1
Circlip EX 28mm
Radial Ball Bearing. 6204
FIG.11 BALANCE SHAFT
11
