Used oil must be disposed of at a proper collection center.
SERVICE INSTRUCTIONS
B. Engine Lubrication
You must change the oil in the crankcase after the first 5 hours of operating your new
engine and after 10 hours of use thereafter. This will insure proper lubrication
of internal parts and prevent costly repairs due to excessive wear.
a. Remove drain plug located on the right rear side of engine.
Tip EXJJ\ backwards slightly by blocking the front tires and
drain oil into suitable container.
b. Remove and clean oil screen.
c. Replace drain plug and tighten securely. Place kart in a level
position.
d. Refill crankcase (approximately 1200 cc or 1 1/4 quarts) to
top of filler neck with SAE 10W 30 oil.
e. Check oil level before each use of kart or after each 10 hours
of operation. Add oil to bring up to proper level. Do not mix
various grades of oil.

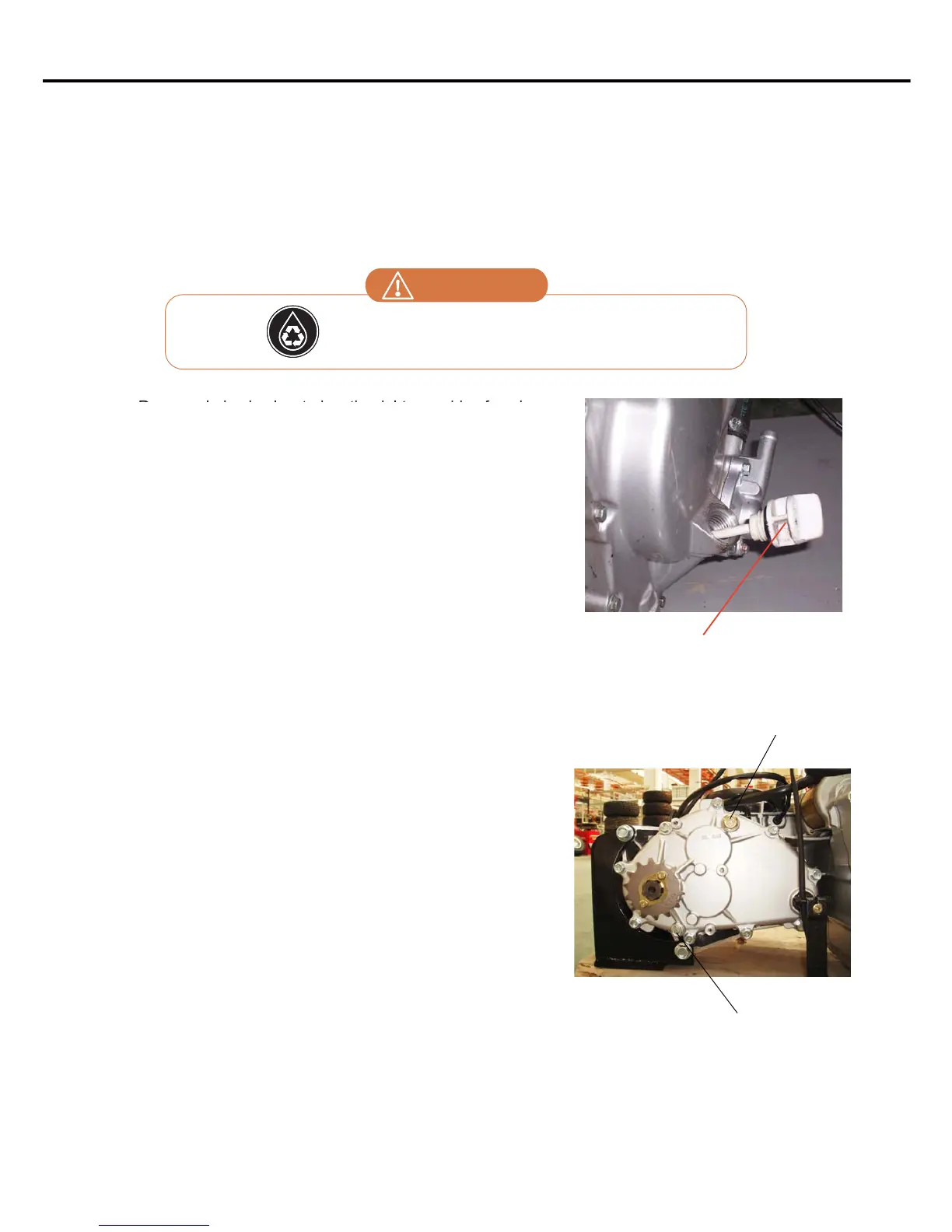

ENGINE OIL PLUG COVER
C. Gear Oil Check and Change
a. Remove oil join bolt. Remove drain bolt and drain oil out.
b. Install the drain bolt after drained. Torque value: 1.1~1.5kgf-m
c. Make sure that the drain bolt washer can be re-used.
d. Add oil to specified quantity from the join hole.
Gear Oil Quantity: 650 cc when replacing.
e. Make sure that the join bolt washer can be re-used, and install
the bolt. Torque value: 3.5~4.5kgf-m
f. Start engine and run engine for 2-3 minutes. Turn off engine and
make sure that oil level is at correct level. Make sure that there is
no oil leakage.
JOIN BOLT
DRAIN BO
LT
27
WARNING
