SERVICE INFORMATION
L. Front Wheel Alignment

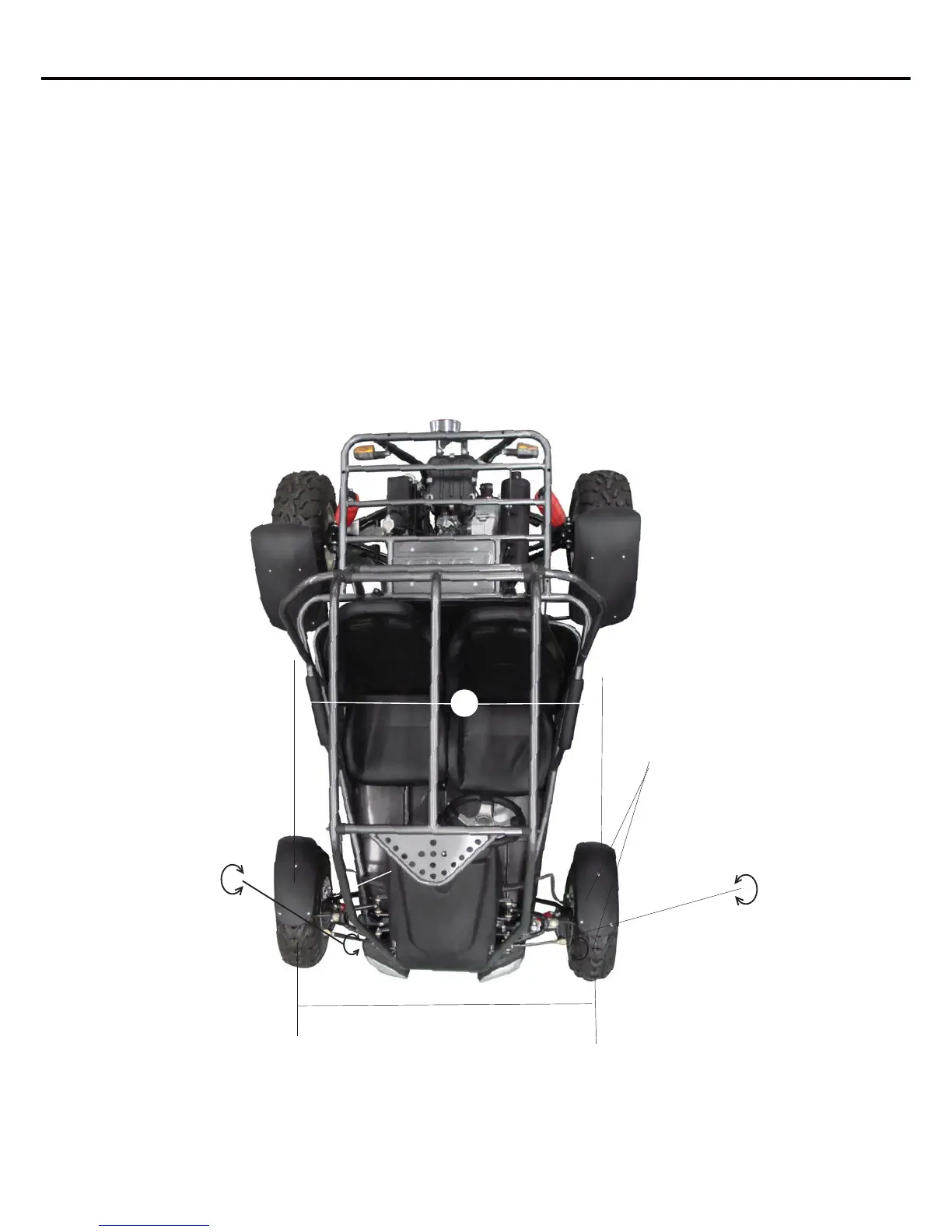

a. The front wheels should be “toe-in” from 1/8” to 1/4”. To check for alignment, measure
distance A and B between the centerline (CL) of the wheels. The proper toe-in dimension A
should be 1/8” – 1/4” greater than dimension B.
b. To adjust the alignments, loosen the lock nuts on both sides of Front Tie Rods. To make
Dimension B smaller, turn the rod to the left. Adjust the rod to the right direction to make
Dimension B larger. After adjusting to the desired length, tighten the lock nut against the rod end.
Recheck the dimensions for proper alignment.
LEFT ROTATE
LEFT ROTATE
RIGHT ROTATE
RIGHT ROTATE
CL
CL
B
FRONT WHEEL TIE ROD
LOOK NUT, FR.
WHEEL TIE ROD
A
32
