OPERATION
F. Gear Shift Lever
YOKE ADJUSTMENT
a. Each end of the cable has a threaded yoke on it.
b. You must remove the pin or bolt in either end of
the cable to which the yoke is attatched.
c. To adjust an end, loosen the jam nut and turn the
yoke the appropriate way.
CABLE MOUNT ADJUSTMENT
a. The cable has a threaded stud and jam nuts on each
end that is used to attatch itself to the frame.
b. To adjust, loosen one jam nut on one or both ends
and adjust the appropriate direction.
c. Tighten jam nuts.
SHIFT LEVER ADJUSTMENT
a. On the rear end of the cable a shift lever is attatched to
both it and the engine.
b. The lever is on a splined shaft protruding from the engine.
c. Remove the bolt which holds this lever to the engine.
d. Slide the lever off the shaft and turn the appropriate way,
one spline at a time.
e. Once in the appropriate position tighten all bolts back.

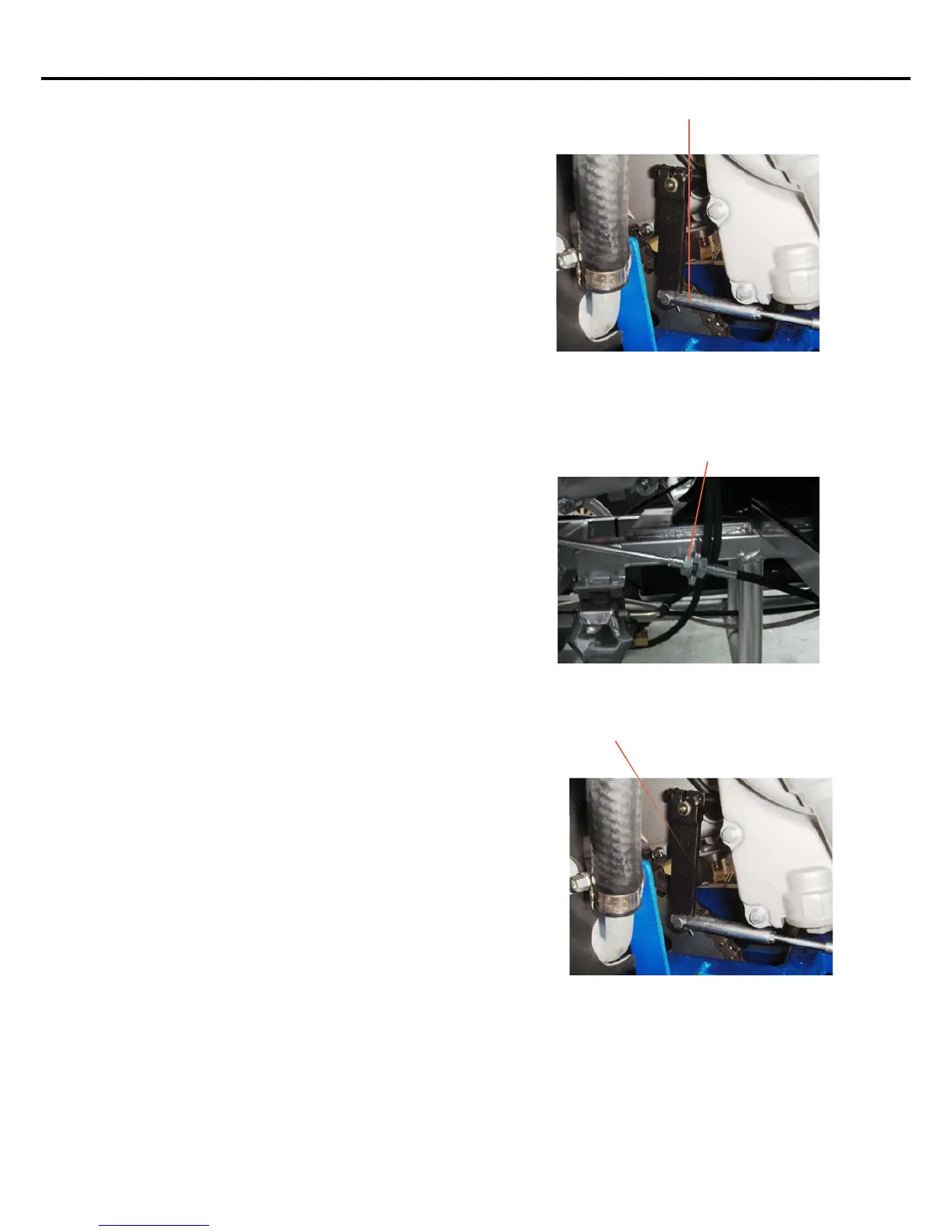

YOKE
CABLE MOUNT
SHIFT LEVER
