Carter INTERCEPTOR GTR 300 - Cylinder Assembly

1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
1
1
1
1
1
1
1
1
1
1
2
4
1
REF.
QTY
DESCRIPTION

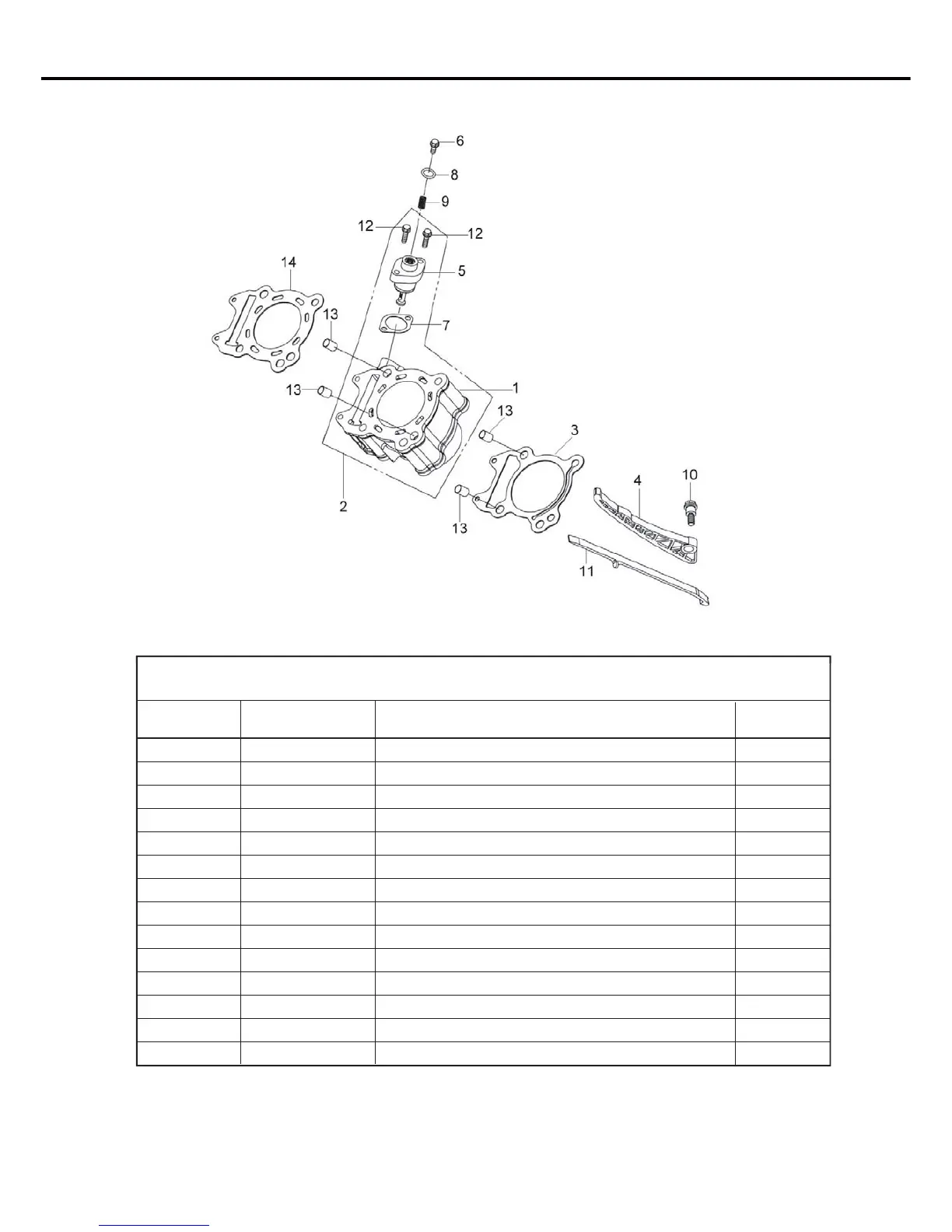

FIG.3 CYLINDER ASSEMBLY
PART NO.
Fig.3 CYLINDER ASSEMBLY
8213-3019
8213-3020
8240-3105
8213-3021
8213-3022
8200-3191
8240-3108
8200-3606
8257-3013
8213-0035
8213-3023
8200-0167
8200-3301
8240-3106
Cylinder Comp
Cylinder Assy.
Cylinder Gasket
Cam Chain Tensioner
Tensioner Lifter Assy.
Adjuster Bolt-cylinder
Tensioner Lifter Gasket
O-Ring H6T
Adjuster Spring-cylinder
Cam Chain Tensionerpivot
Cam Chain Guide
Flange Bolt SHF 6x22
Dowel Pin 12x20
Cylinder Head Gasket
3
