A. Service Air Cleaner
Service air cleaner every 20 hoursDIWHUULGLQJ.
NOTE: Service more often under dusty conditions.
SERVICE INSTRUCTIONS
Torque Values
The torque values listed in this table are for more important tightened torque values. Please see standard
values for torques not listed in the table.

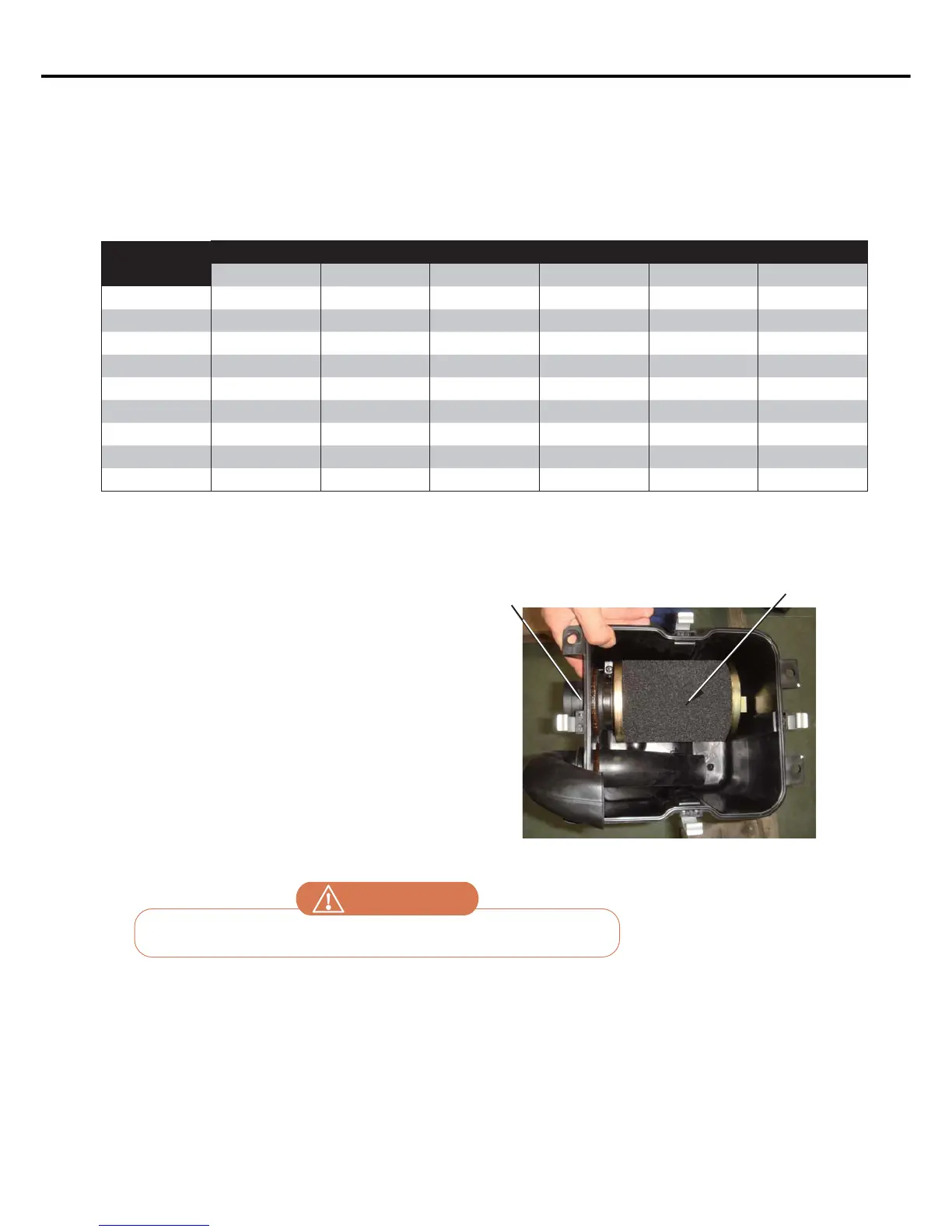

a. Loosen 4 hooks from the air cleaner cover and
then remove the cover.
b. Loosen the clamp strip and 1 screw of air cleaner
element, and then remove the air cleaner element.
c. Clean the element with non-flammable or
high-flash point solvent and then squeeze it dry.
Soap the element in clean engine oil and then squeeze it out. Install the element on the
element seat and then install the air cleaner cover.
Never use gasoline or acid organized solvent to clean the element.
CLAMP
ELEMENT
tloBdekraM8.8tloBdekraMlanoitnevnoCtloB
Diameter
N.m Kg.m Ib-ft N.m Kg.m Ib-ft
4 1 ~2 0.1 ~0.2 0.7 ~1.5 1.5 ~3 0.15 ~0.3 1.0 ~2.0
5 1 ~4 0.2 ~0.4 1.5 ~3.0 3 ~6 0.3 ~0.6 2.0 ~4.5
6 4 ~7 0.4 ~0.7 3.0 ~5.0 8 ~12 0.8~1.2 6.0 ~8.5
8 10 ~16 1.0 ~1.6 7.0 ~11.5 18 ~28 1.8 ~2.8 13.0 ~20.0
10 22 ~35 2.2 ~3.5 16.0~25.5 40 ~60 4.0 ~6.0 29.0 ~43.5
12 35 ~50 3.5 ~5.5 25.5 ~40 70 ~100 7.0 ~10.0 50.5 ~72.5
14 50 ~80 5.0 ~8.0 36.5 ~58 110 ~160 11.0 ~16.0 79.5 ~115.5
16 80 ~130 8.0 ~13.0 58 ~94 170 ~250 17.0 ~25. 123.0 ~181.0
18 130 ~190 13.0~19.0 94 ~137.5 200 ~280 20 ~28.0 144.5 ~202.5
Torque Tightening Chart
26
WARNING
