SERVICE INSTRUCTIONS
H. Adjustment of Front and Rear Shocks
There are five adjustable positions on each shock. The default position is in the middle.
a.Use a round nut wrench to adjust the shock.
b.The tension of the shock spring will increase as
you scew to the right.
c. Adjust accordingly to the weight of the riders.
I. Front or Rear Shock Removal
a. You must first lift either the front or the rear of
the kart off the ground, depending on which shocks
you want to remove.
b. Once the kart is off the ground remove the bolt
from both top and bottom of each shock.

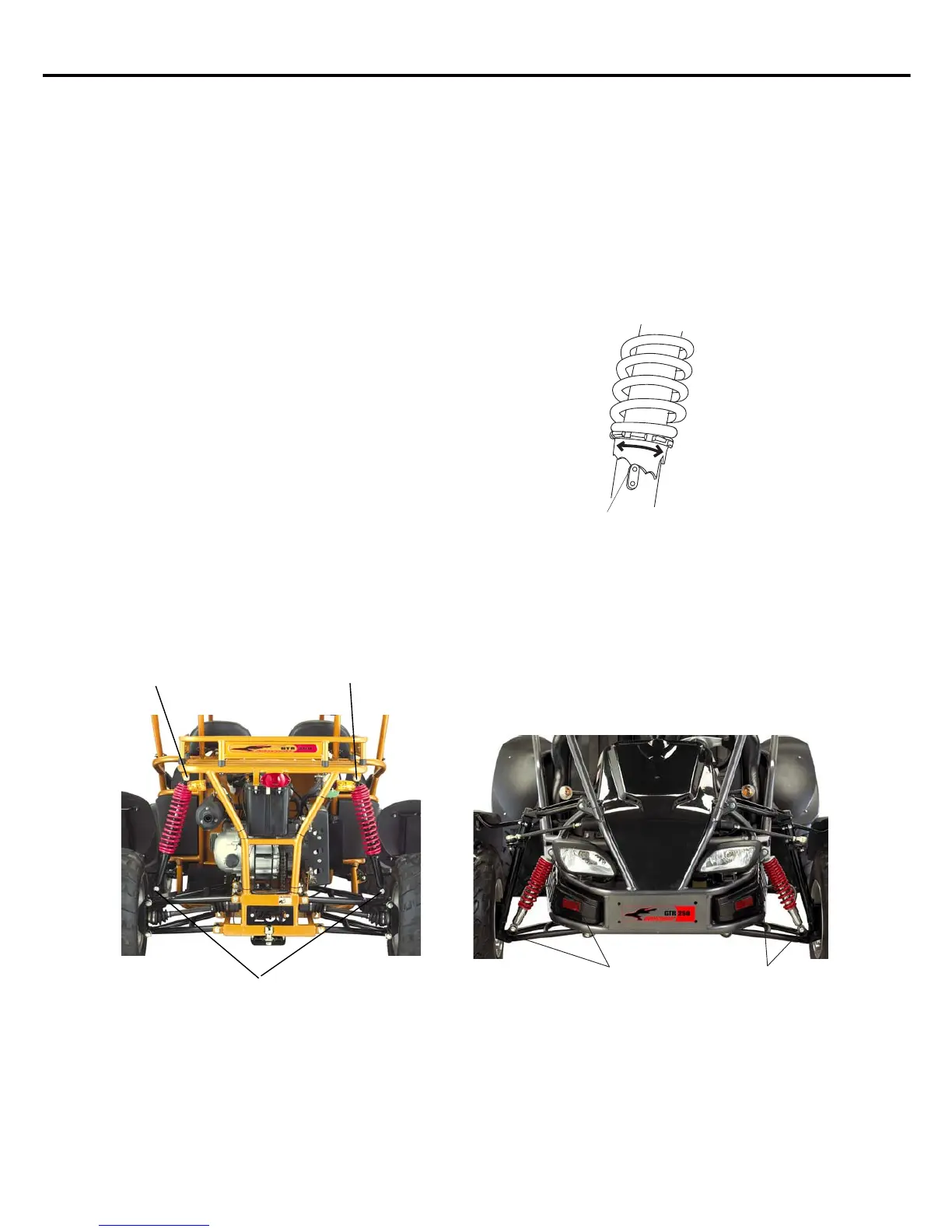

REAR SHOCKS
FRONT SHOCKS
BOLT
BOLTS
BOLTS
BOLTS
BOLT
30
LEFT ROTATE
RIGHT ROTATE
SPRING ADJUSTMENT CAM
