CARVIN
®
SILVER SERIES ABOVE-GROUND POOL | USER MANUAL
11

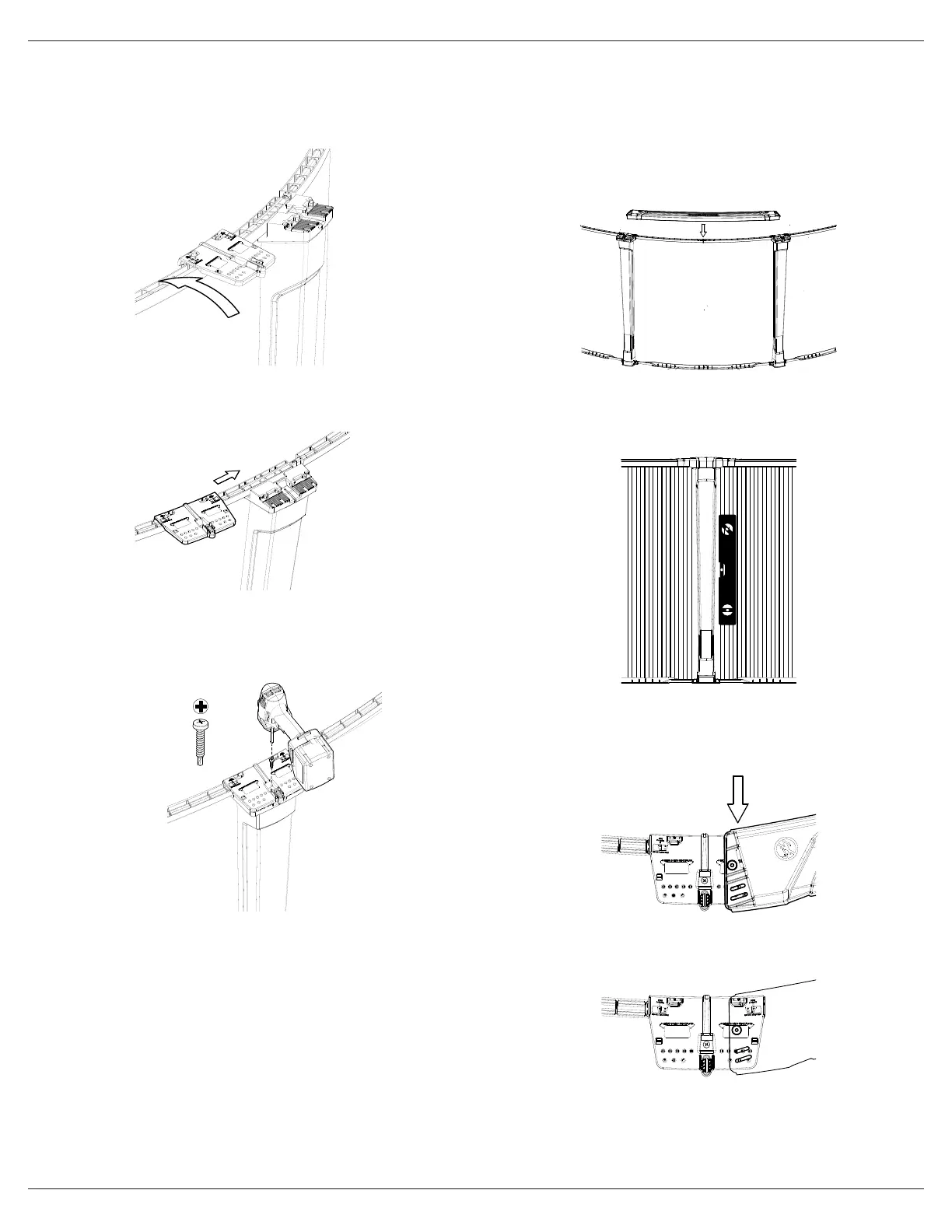

TOP PLATE INSTALLATION
STEP 1
From the outside tilt the top plate so that the inside part hooks onto the top rail.
STEP 2
Lower the top plate and slide this one over the upright and press down.
STEP 3
Make sure the holes on top plates are aligned with the holes on top of uprights.
Install 1x auto tapping screws (14455032) to assemble the top plates on
the uprights.
TOP LEDGE INSTALLATION
STEP 1
Position all top ledges around the pool structure.
STEP 2
Center the top ledges to the top plates and uprights.
Make sure the uprights are straight before screwing top ledges. Use the corrugation
(fold lines) of the steel wall to guide you on straightness of the uprights.
STEP 3
Before screwing top ledge, pull them towards the exterior of the pool so that the
corners on the interior of the pool are pressed and ush against top plates.
Make sure the round hole is in the screwing zone.
P/N. 14455032
SCREW AT LOW SPEED
Max torque 4 NM / 3FT-LB
PH3
PH3
Pn. 14455110
DRILL AT LOW SPEED
Max torque 4 NM/3FT-LB
Pn. 14455032
DRILL AT LOW SPEED
Max torque 4 NM/3 FT-LB
