SILVER SERIES ABOVE-GROUND POOL | USER MANUAL
6

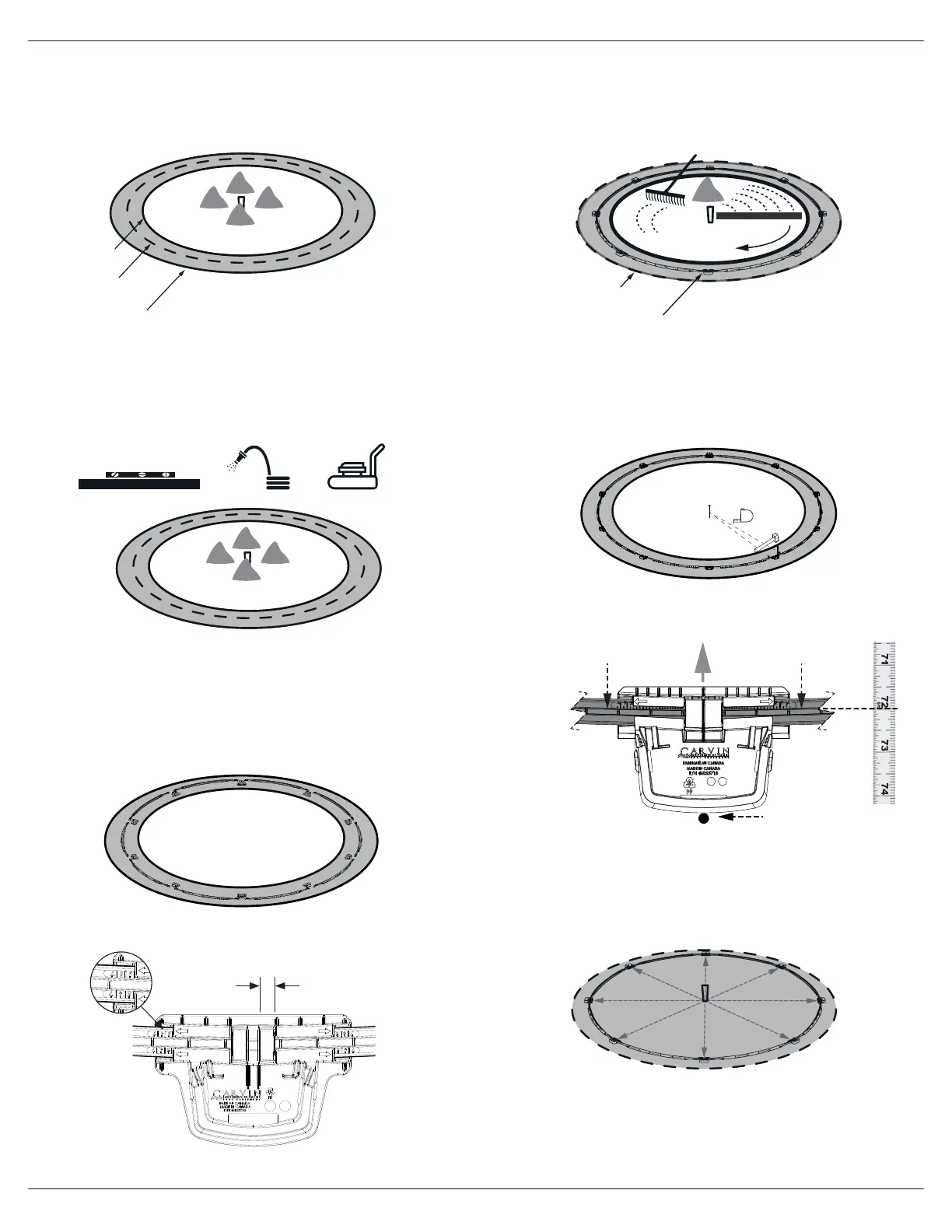

STEP 7
Spread the rock dust on the rim of the circle to a width of 24” (2’) all around including
12” outside and 12’’ inside the rails location. The thickness of the rock dust should be
around 2’’ to 3”.
STEP 10
Spread the rock dust in center of the pool foundation so that level is maintained with
the exterior compacted rock dust. Compacting this part will be done in a subsequent
step just prior to installing the liner.
STEP 11
Measure the diameter from the center of the pool to the interior of the grooves on
the rail on each side of the bottom plates. The distance should equal the radius of
your pool.
When the measurement is good, plant a nail or 8” rod on the exterior center of each
bottom plate so that they can stay in place.
STEP 12
Measure between each opposite bottom plate to make sure your pool is a perfect
circle. You must not miss or skip this step under any circumstances because an oval
pool could cause future problems, and pool can even burst in time.
STEP 8
Damp and pack down the rock dust of the perimeter with your compactor. Once this
is done, measure the level and atness to ensure that the pool will rest on a straight
surface without space under bottom plates or/and rails.
STEP 9
Place bottom plates and rails around the perimeter and assemble together. Do not
push the rails completely in bottom plates. The rail has a graduated scale at each
end, begin by placing to the number 5 which will give you approximately ½” to 5/8”
of space between the center of the plate and the end of the rail. The spacing of both
rails into each bottom plate should be equal at all times.
12’’ interior
Pool size
Approx. 1/2’’ to 5/8’’
(Equal on both sides)
Foundation line or rail location
(12’’ exterior)
Foundation line
Rails and bottom plates
Measure between each opposite bottom
plate to ensure a perfect circle.
(12’ pool as example)
Interior of groove Interior of groove
Plant nail exterior/center
Example of a 12’ pool = 6’ (72”) radius
Pool center
