Cascade 55K Installation Instructions

7
FP1657.eps
&
⁄
*
9
3
3
5
7
6
4
1
2
¤
3
(
%
8
^
$
0
@
#
!
#
$
)
$

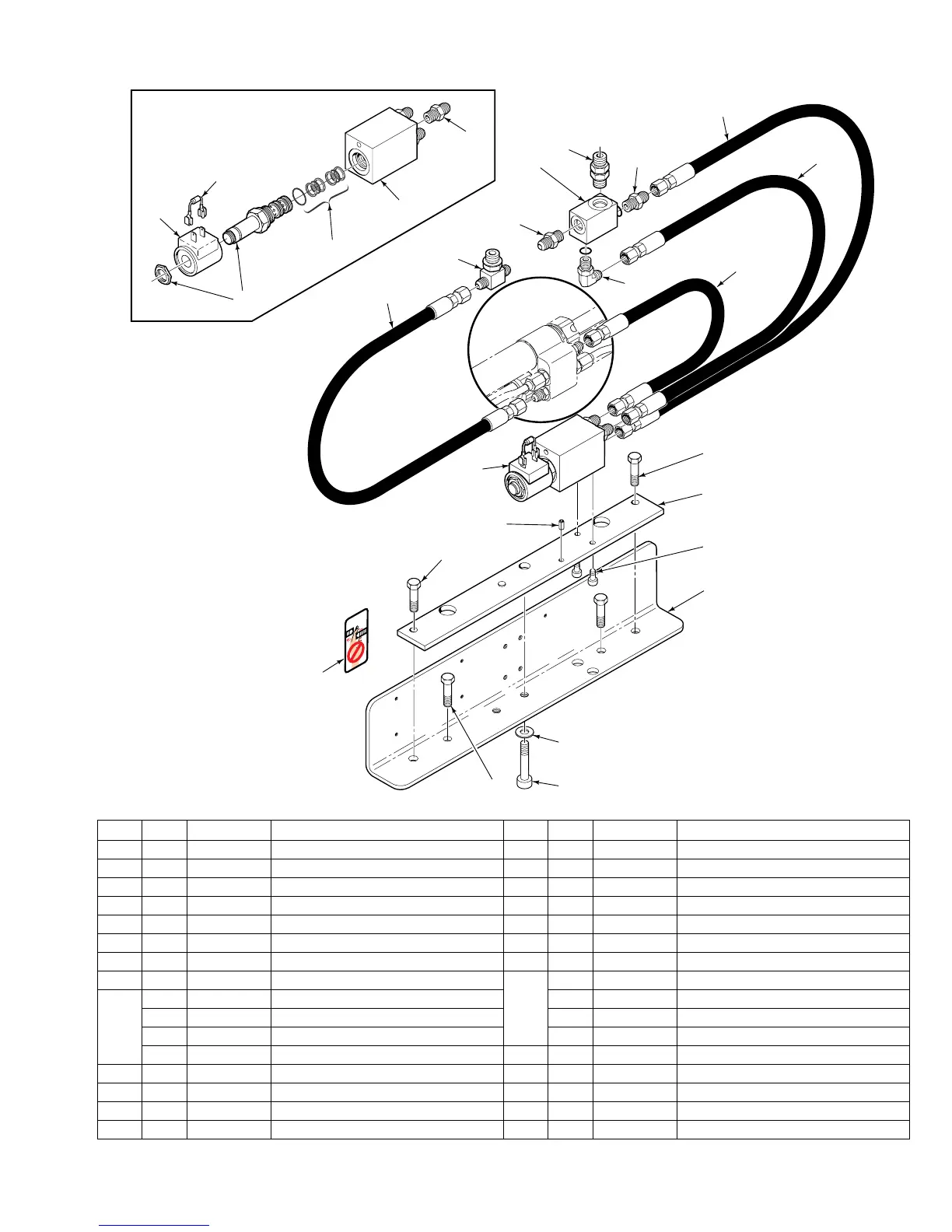

100K Solenoid Control Kit
REF QTY PART NO. DESCRIPTION REF QTY PART NO. DESCRIPTION
6074873 100K Solenoid Control Kit–12V 10 1 6050411
Manifold ●
6074945 100K Solenoid Control Kit–24V 11 1 6064643 Hose, 27.0 in. (686 mm)
6074947 100K Solenoid Control Kit–36V 12 1 6050052 Hose, 20.0 in. (510 mm)
6074948 100K Solenoid Control Kit–48V 13 2 6064656 Hose, 24.0 in. (610 mm)
1 1 6076117 Guard 14 5 617915
Fitting, 4-4 ●
■
2 1 768814 Capscrew, M10 x 60 15 1 617917
Fitting, 4-4 ●
3 4 787373 Capscrew, M8 x 25 16 1 6008166
Solenoid Cartridge
■
4 1 6076112 Mounting Bar
17
1 6860494
Solenoid Coil–12V
■
5
1 6064490 Solenoid Valve Assembly–12V 1 6860576
Solenoid Coil–24V
■
1 6064502 Solenoid Valve Assembly–24V 1 6859258
Solenoid Coil–36V
■
1 6064503 Solenoid Valve Assembly–36V 1 6860663
Solenoid Coil–48V
■
1 6064504 Solenoid Valve Assembly–48V 18 1 6126457 Service Kit
6 2 768785 Capscrew 19 1 6052237
Valve Body
■
7 1 768991
Roll Pin, 5 x 10 mm
■
20 2 665595 Decal
8 1 201671
Fitting, 6-6 ●
21 1 669432 Diode
9 1 6050638 Fitting, 6-4 22 1 787383 Washer, M10
● Included in Manifold Assembly 6050615
■ Included in Solenoid Valve Assembly, Item 5
