3
FP0213.ill
cascade
®
C-675514-1
SS0141.ill
NSTALLATION
3

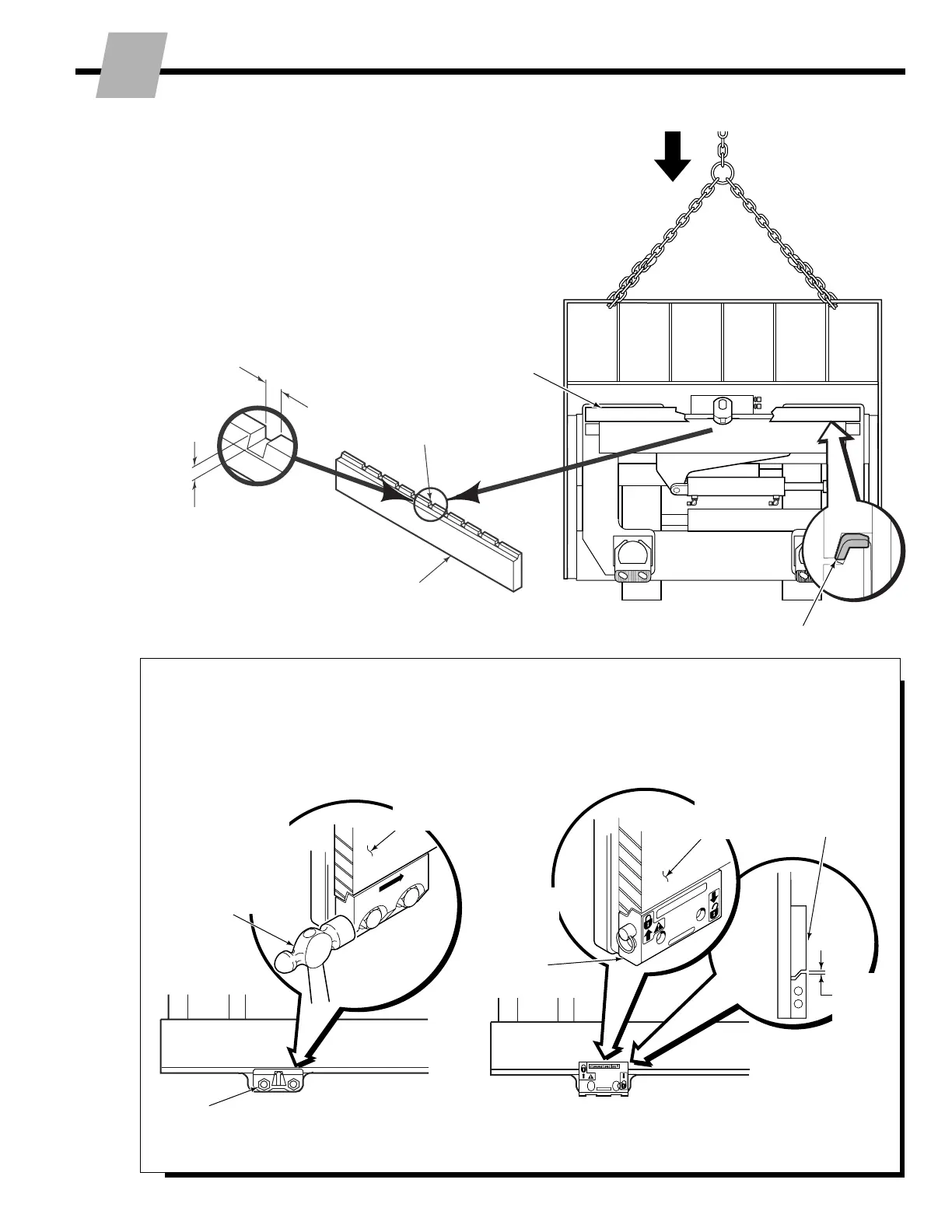

Mount Fork Positioner on truck
A
Center truck behind Attachment.
BHang Attachment onto truck carriage.
CEngage upper mounting hooks. On
sideshifting units, make sure upper bearings
are in place and centering tab engages
center notch on truck carriage.
I
QUICK-CHANGE TYPE
(optional)
Tighten Capscrews:
Class II, III Mounting – 120 ft.-lbs. (165 Nm)
Class IV Mounting – 190 ft.-lbs. (255 Nm)
4
Install or engage lower hooks
Inspect hooks for
excessive clearance.
(Reverse guides to
reduce clearance –
see Step 2.)
Slide hook up
to engage
bar, install
pin in locked
position.
(upper hole.)
SS0139.ill
ADJUST
SS0140.ill
Lower
Carriage
Bar
Lower
Carriage
Bar
3/16 in.
(4.8 mm)
max.
C
ITA Class II – 0.32–0.36 in. (8–9 mm)
ITA Class III – 0.39–0.43 in. (10–11 mm)
ITA Class IV – 0.47–0.51 in. (12–13 mm)
ITA Class II – 0.60–0.66 in. (15–17 mm)
ITA Class III – 0.72–0.78 in. (18–20 mm)
ITA Class IV – 0.72–0.78 in. (18–20 mm)
Center
Notch
Truck
Carriage
Back (Driver's) View
B
Upper Bearings
SD0023.ill
Upper Hook
(Full-length
Sideshifter
type shown)
BOLT-ON TYPE
Tap tight into position.
If sideshifting, back off
1 notch and
check clearance:
3/32 in. (2.4 mm) min.
3/16 in. (4.8 mm) max.
To Next Page
