Truck Preparation
NOTE: Prior to installing the 90FX Paper Roll Clamp,
install the following components on the truck:
• Solenoid-operated 3N2 control valve in the CLAMP
and ROTATE supply lines to the Attachment.
• 'Tee' adapter in the truck tank main return line for
return-to-tank from the 3N2 Control Valve.

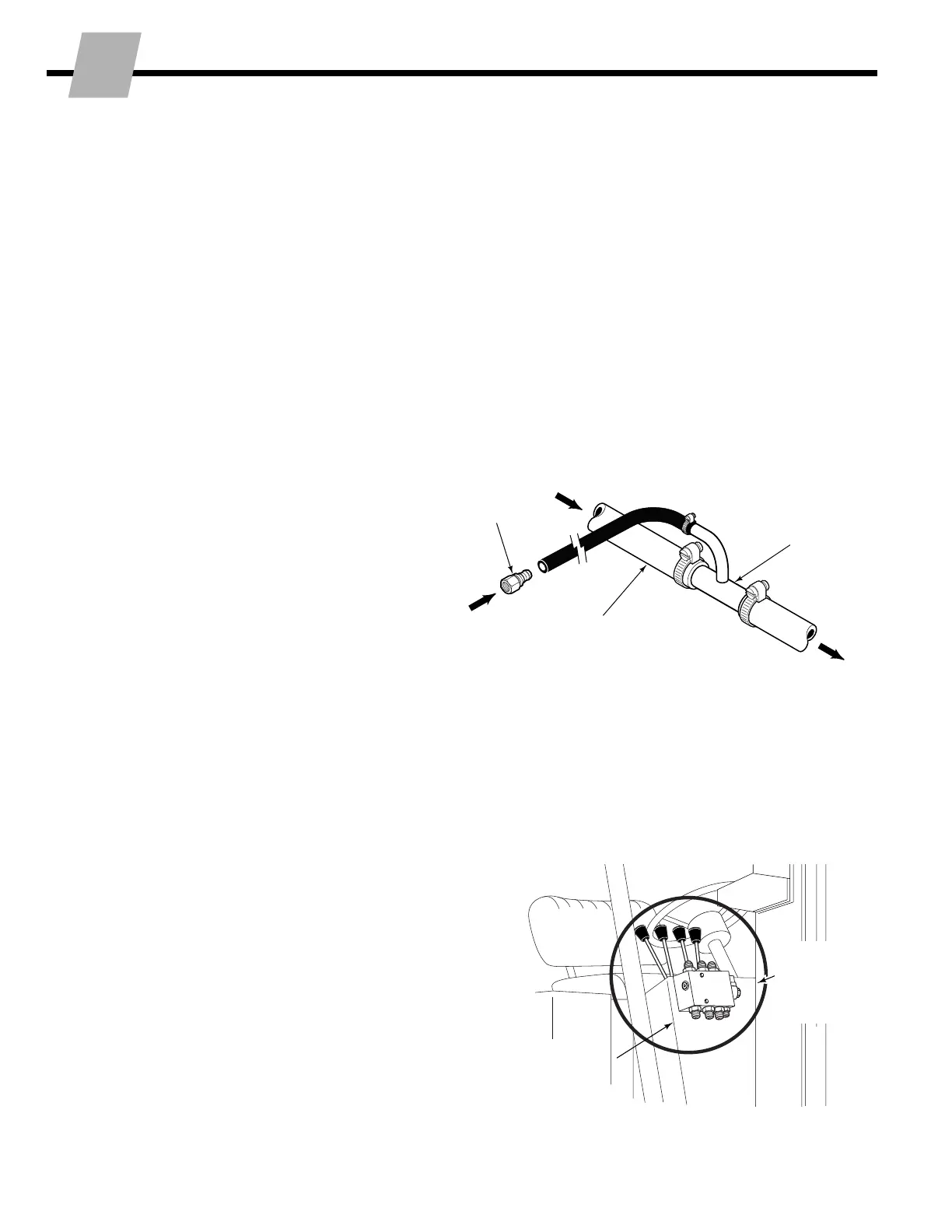

1
AC0150.ill
'Tee' fitting
To truck tank
From truck
auxiliary
valve block
From Control
Valve TANK port
Tank Return
Hose
Push-On Fitting
Install 'Tee' adapter
A Determine a suitable location and install the
'tee' adapter in the truck tank main return line.
CAUTION: Do not install into power steering
or other tank return lines.
Mount 3N2 Control Valve
Determine a suitable mounting location for the
solenoid-operated control valve. If mounted on
the truck cowl as shown, the valve must not
extend outside the width of the cowl or interfere
with the truck mast when tilted back.
If the valve is mounted in the engine compart-
ment, make sure it is securely mounted. Use
hose clamps or cable ties as necessary.
NOTE: Control valve ports are drilled straight-
through allowing 'tee' connections when opposite
ports are capped. Straight-through connections
are preferred to reduce entrapped air and enable
use of straight fittings.
2
RC1301.ill
Check for
interference
with mast
tilted back.
Valve must not
extend outside
width of cowl.
