Cascade K Series User Manual

9
6055911-R8 EN
NSTALLATION
I

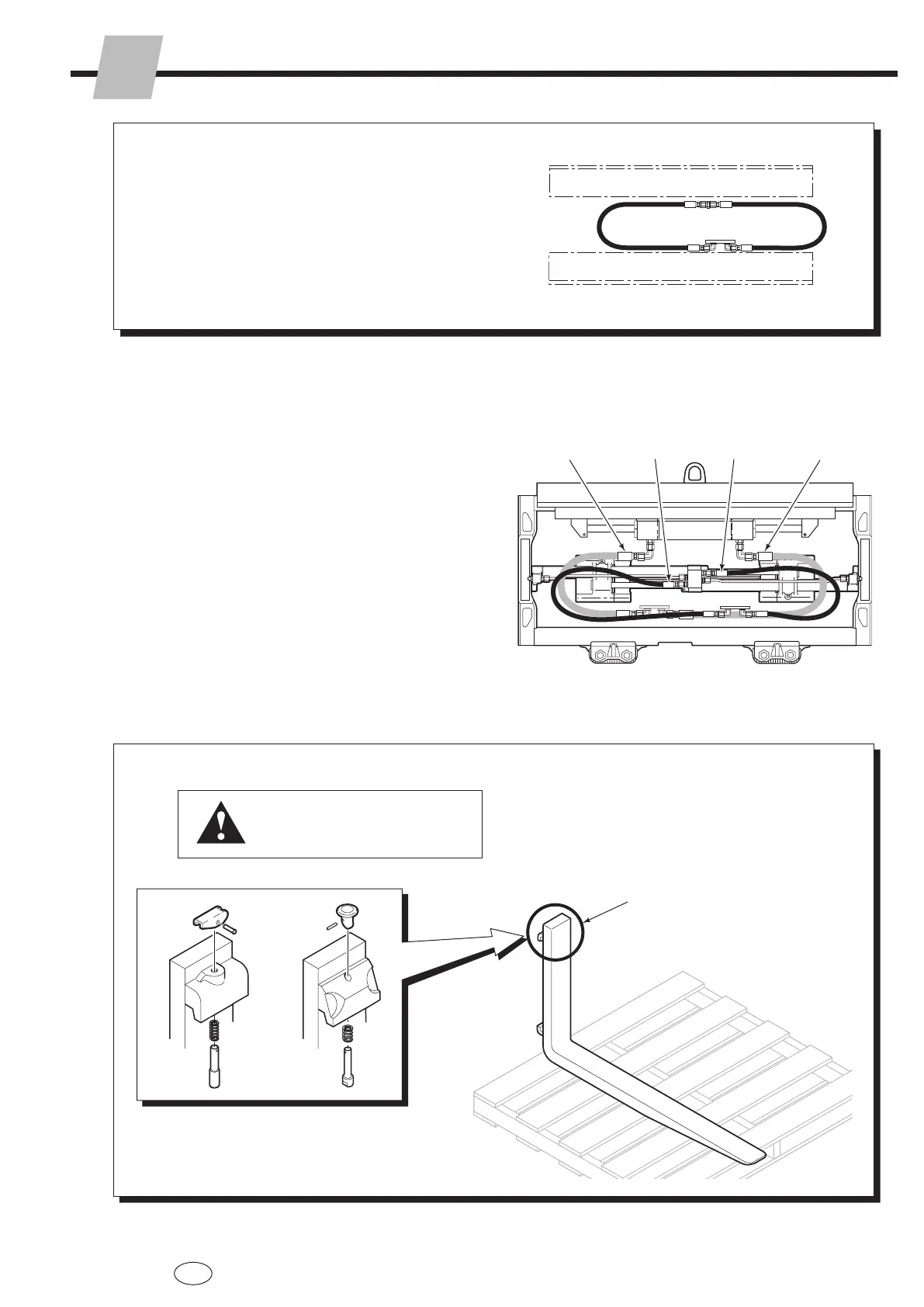

Install hoses
FP0726.eps
5
6
Flush supply hoses
CAUTION: Allow for 100 mm movement
in each direction for sideshifting ('rolling'
hose arrangement recommended).
Back (Driver's) View
A Connect supply hoses to supply
terminals and connect together using
a union fitting as shown.
B Operate auxiliary valve for 30 sec.
C Remove union fitting
FP0701.eps
OPEN
Forks
CLOSE
Forks
Sideshift
Left
Sideshift
Right
Remove fork locking pins
7
WARNING: Remove locking pins
from forks. Make sure that forks
slide freely on carriage bars.
FP1432.eps
FP1115.eps
Remove Fork
Pin Assembly
