Cascade K Series User Manual

10
6055911-R8 EN
I
NSTALLATION
FP0694.eps
FP1543.eps

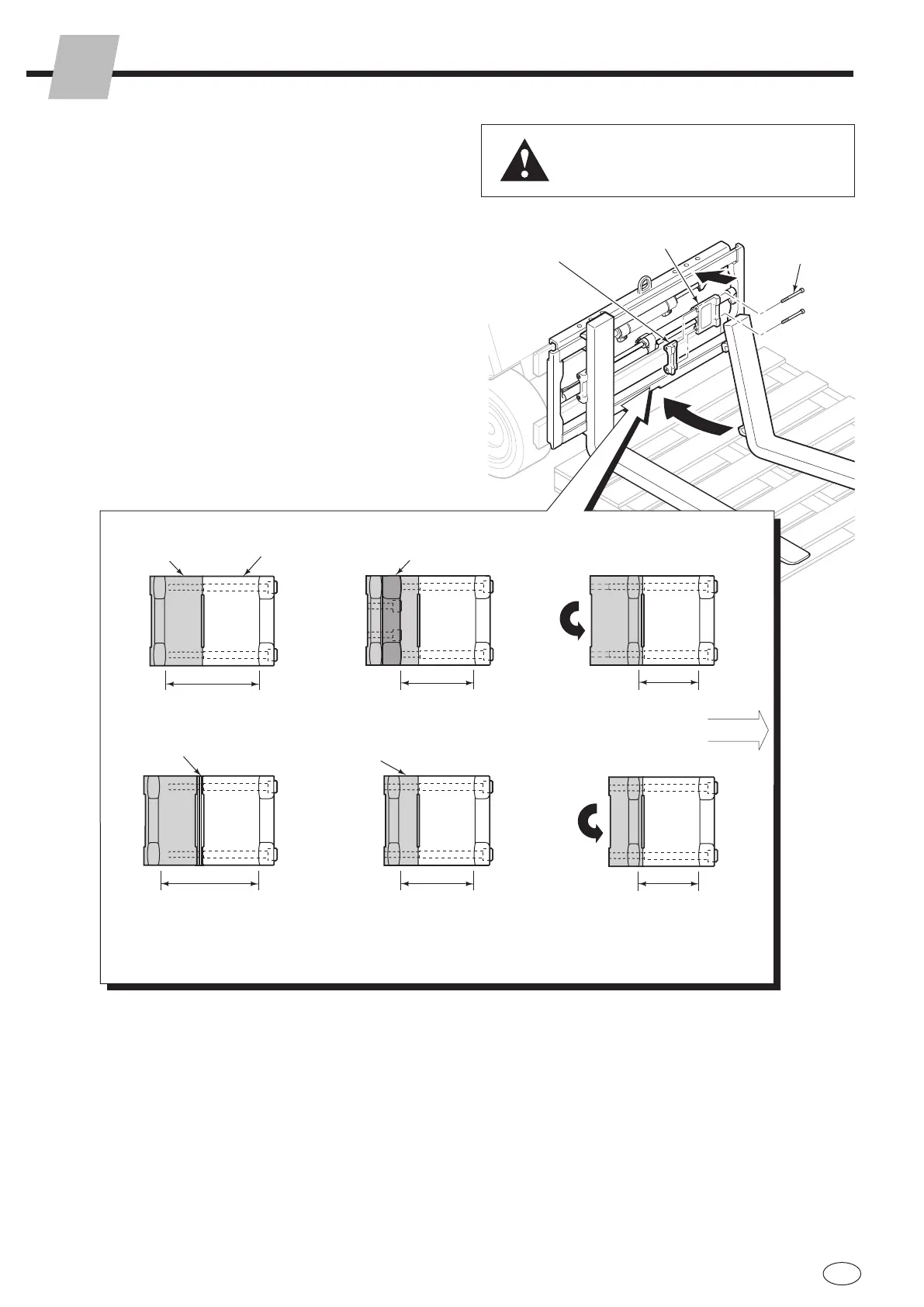

Install forks (55K & 65K)
8
Fork Carrier
Inner Retainer
Capscrews
Outer Retainer
A
C
B
Narrow Inner
Retainer
(6042443)
Wide Inner Retainer
w/Spacer Bar (6052316)
Rotate Inner
Retainer 180
Degrees
Wide Inner Retainer
(6052301)
Outer Retainer
Outside
A Remove capscrews and fork carrier inner
retainer sections.
B Install forks using a pallet or blocks. Keep
feet clear of forks.
C Reinstall fork carrier inner retainer sections
and tighten capscrews to 35 Nm.
NOTE: See illustration below to position
inner retainers for various fork widths.
IMPORTANT: Do not lube the fork carrier
grease fittings during initial installation. See
Periodic Maintenance for lube schedule.
122 mm
Fork
100 mm
Fork
80 mm
Fork
80 mm
Fork
100 mm
Fork
WARNING: For forks longer than 1520 mm
or load centers exceeding 760 mm, consult
Cascade.
Wide Inner
Retainer with
Shims (6805182)
130 mm
Fork
FORK CARRIER CONFIGURATIONS
RH Front Views
NOTE: Recommended gap between sides of fork and fork retainer is 2-4 mm.
