Cascade K Series - Install Forks (100 K, 120 K, 150 K, 165 K)

11
6055911-R8 EN
I
NSTALLATION
FP0694.eps

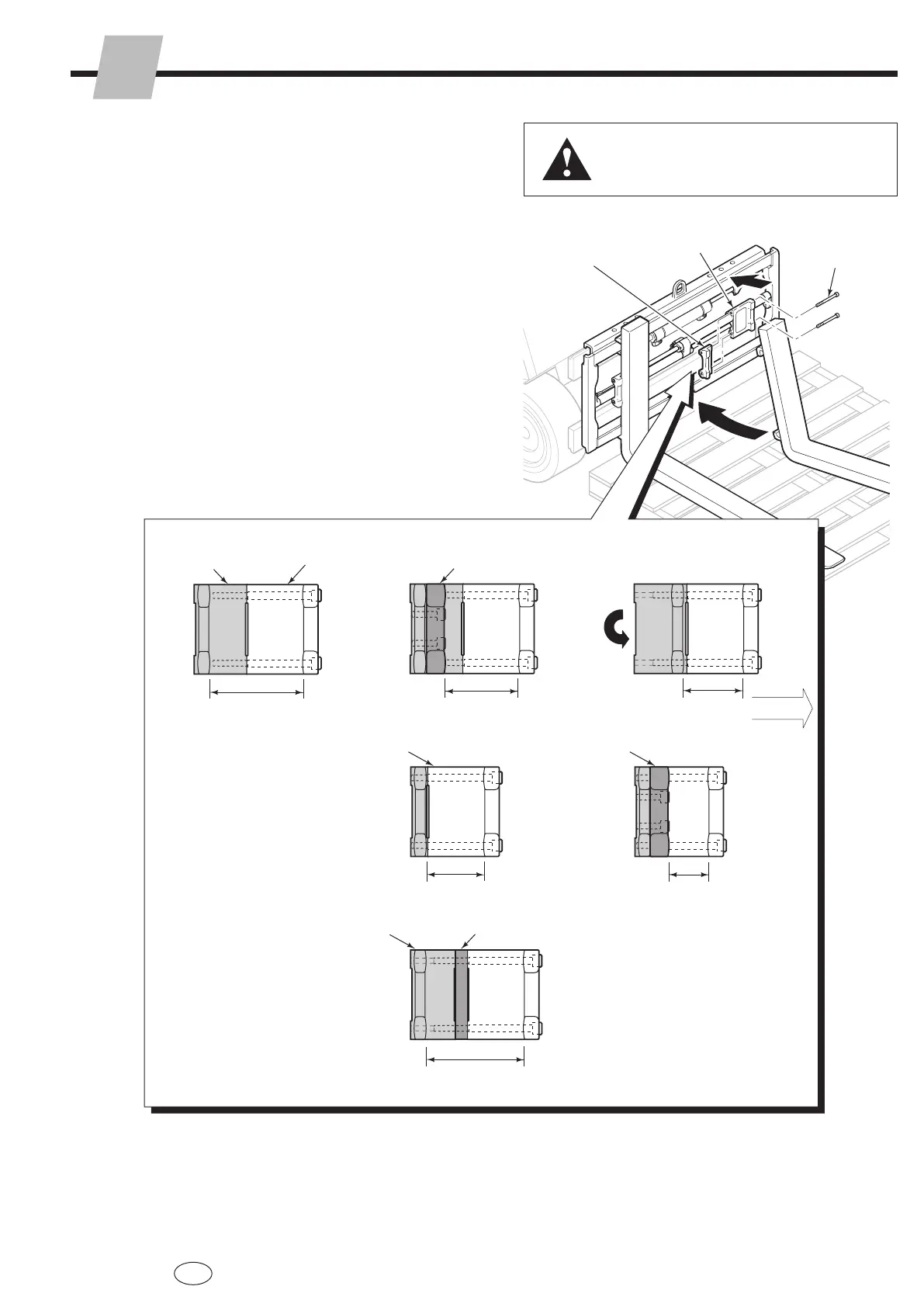

Install forks (100K, 120K, 150K, 165K)
9
Fork Carrier
Inner Retainer
Capscrews
Outer Retainer
A
C
B
A Remove capscrews and fork carrier inner
retainer sections.
B Install forks using a pallet or blocks. Keep
feet clear of forks.
C Reinstall fork carrier inner retainer sections
and tighten capscrews to 65 Nm.
NOTE: See illustration below to position
inner retainers for various fork widths.
IMPORTANT: Do not lube the fork carrier
grease fittings during initial installation. See
Periodic Maintenance for lube schedule.
FP1213.eps
RH Front Views
Narrow Inner
Retainer
(6075350)
Wide Inner Retainer
w/Spacer Bar (6059395)
Rotate Inner
Retainer 180
Degrees
Wide Inner Retainer
(6059396)
Outer Retainer
Outside
FORK CARRIER
CONFIGURATIONS
Narrow Inner Retainer
w/Spacer Bar
(6069127)
Wide Inner Retainer
(6059396)
Spacer Bar
(6069113)
180 mm
Fork
150 mm
Fork
122 mm
Fork
122 mm
Fork
100 mm
Fork
200 mm
Fork
WARNING: For forks longer than 1520 mm
or load centers exceeding 760 mm, consult
Cascade.
NOTE: Recommended gap
between sides of fork and fork
retainer is 2-4 mm.
